ColecoVision AV Mod PCB v1.3

Mobius Strip Technologies · 2025 · Video Display
ColecoVision AV Mod PCB v1.3
il_fullxfull.5923239867_gctp.jpg il_1588xN.4698181255_oewc.jpg il_fullxfull.4853535497_ej3s.jpg
3 photographs · hover to enlarge
Catalogue IDCVH-0221
ManufacturerMobius Strip Technologies
RegionCanadaCanada
Year2025
TypeVideo Display (Video)
PlatformColecoVision
StatusReleased
Manufacturer site https://www.etsy.com/de-en/listing/1272180416/colecovision-av-mod-pcb?ls=s&ga_order=most_relevant&ga_search_type=all&ga_view_type=gallery&ga_search_query=colecovision&ref=sr_gallery-1-1&sr_prefetch=1&pf_from=search&cns=1&sts=1&content_source=4a401690-a94d-4656-8699-2ed982bfb3b4%253ALT8bc5b7a3b64100f0d17ed1d04d3715c2a557f9b1&organic_search_click=1&logging_key=4a401690-a94d-4656-8699-2ed982bfb3b4%3ALT8bc5b7a3b64100f0d17ed1d04d3715c2a557f9b1

Notes

ColecoVision AV
* A simple mod to add a composite and audio feed to your ColecoVision Console.
* This mod takes place inside the RF Box, lifting up the metal shield on top of the RF Box exposed the moddable area.

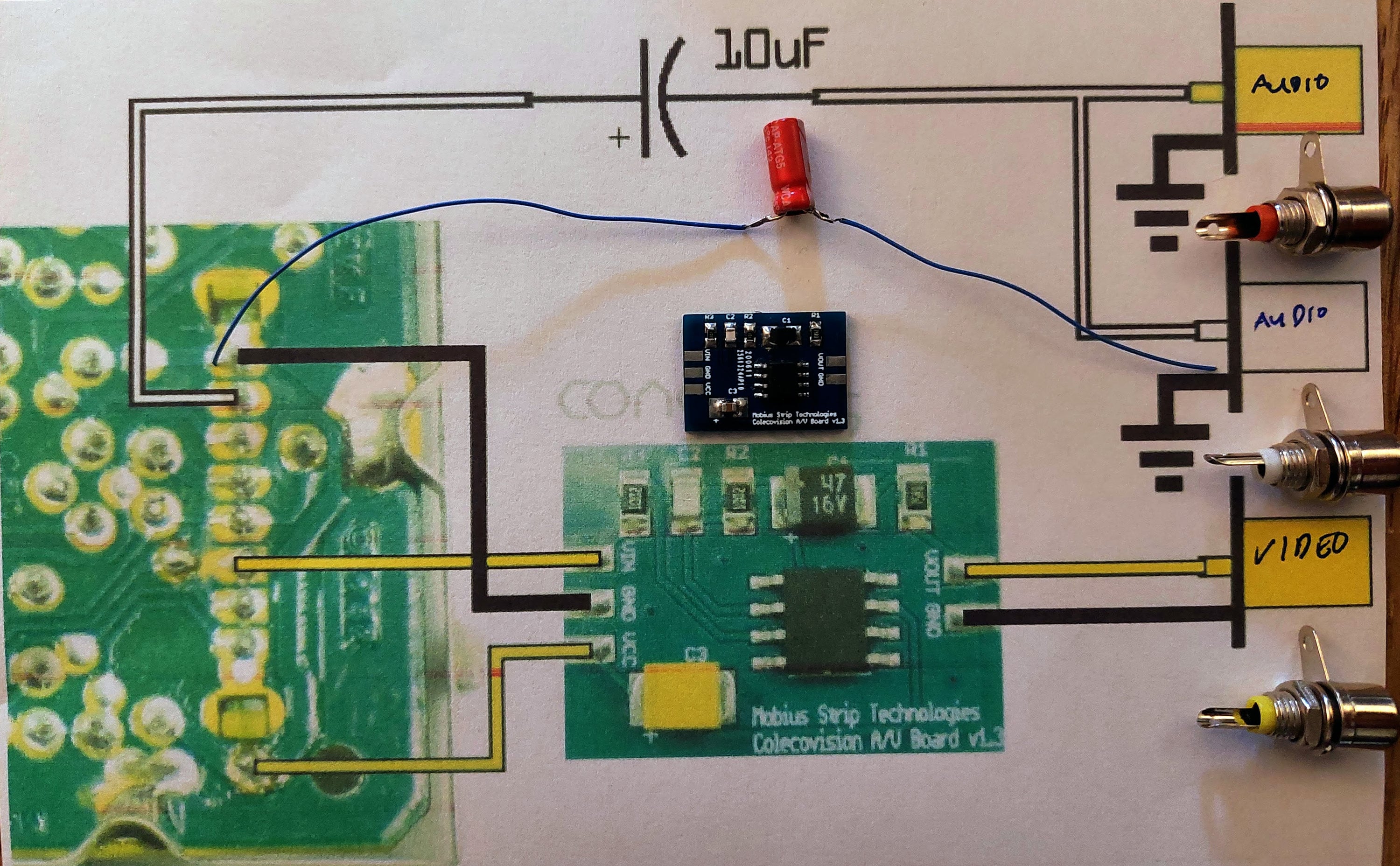

* The rest is self-explanatory, a detailed picture is provided showing which points to solder to.

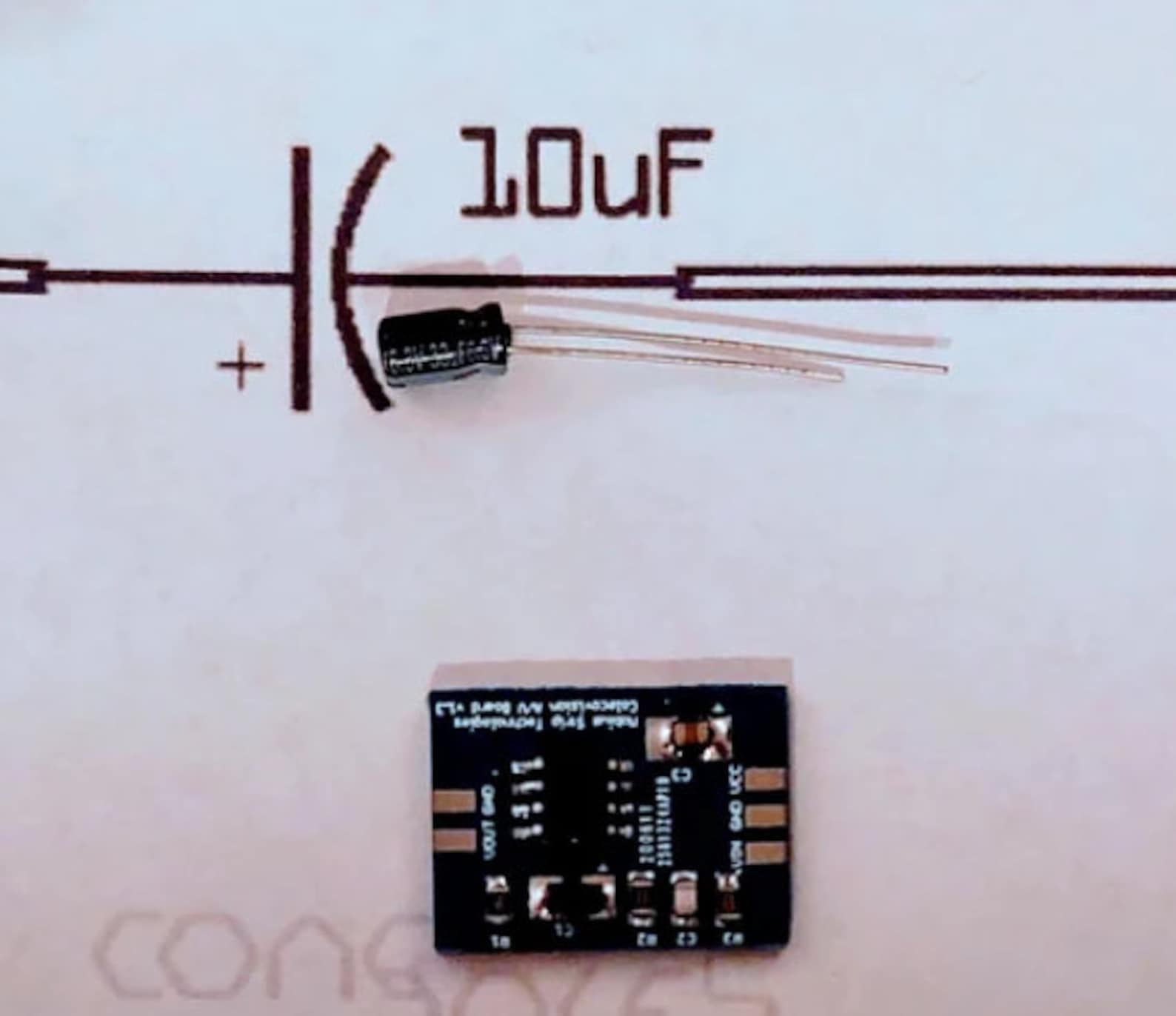

* A capacitor with extended leads is included with the Chip for filtering the audio output.
* Optionally, add RCA connectors from the drop-down menu if you want to install them.
