ColecoVision Diagnostics Shield

ChildOfCV · Test and Diagnostic
ColecoVision Diagnostics Shield
MVIMG_20191208_174449.thumb.jpg.eefda72e3821eb100c9e881e4ab6ccc1.jpg post-66741-0-14724700-1552264690_thumb.png diags.thumb.jpg.3cc25855ae3968a1154aa79e2778518a.jpg
3 photographs · hover to enlarge
Catalogue IDHW-0035
ManufacturerChildOfCV
TypeTest and Diagnostic (Diagnostic)
Connects viaExternal Expansion Bus and Cartridge Port
PlatformColecoVision
StatusReleased
Manufacturer site https://atariage.com/forums/topic/289085-colecovision-diagnostics-shield/#comments

Notes

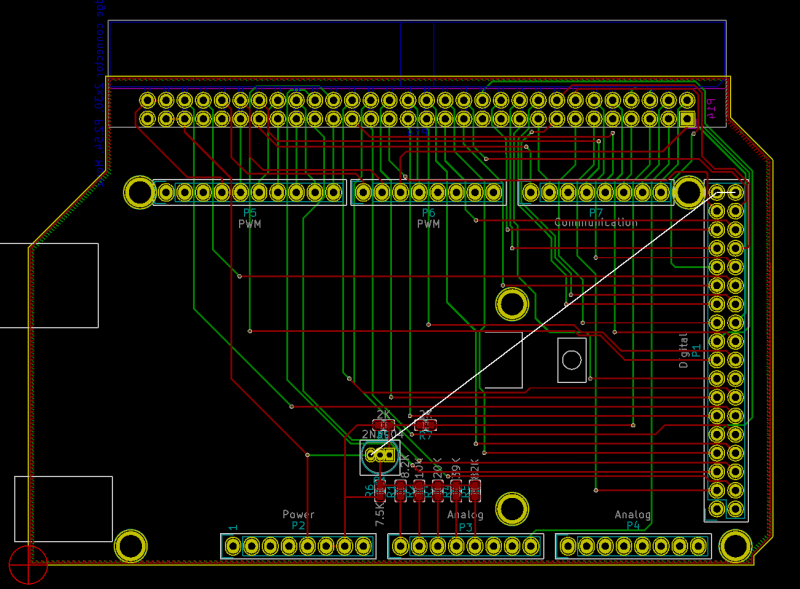

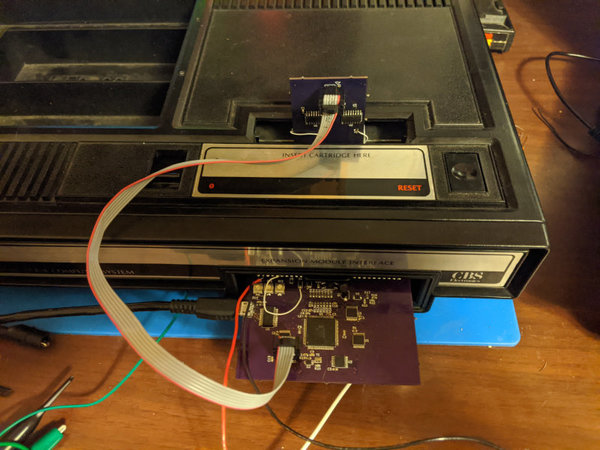

A diagnostic tool for the ColecoVision built as a shield for the Arduino Mega 2560. It connects to the console's expansion port and exercises the machine from there, so a fault can be identified without probing the board by hand.

What it is for

  • Diagnosing as many of a ColecoVision's hardware faults as can practically be reached through the expansion port.
  • Repair work rather than play - it is a bench instrument, not an accessory.

The project was begun by ChildOfCV and developed in public on the AtariAge ColecoVision and ADAM forum from March 2019.
