Stelladaptor

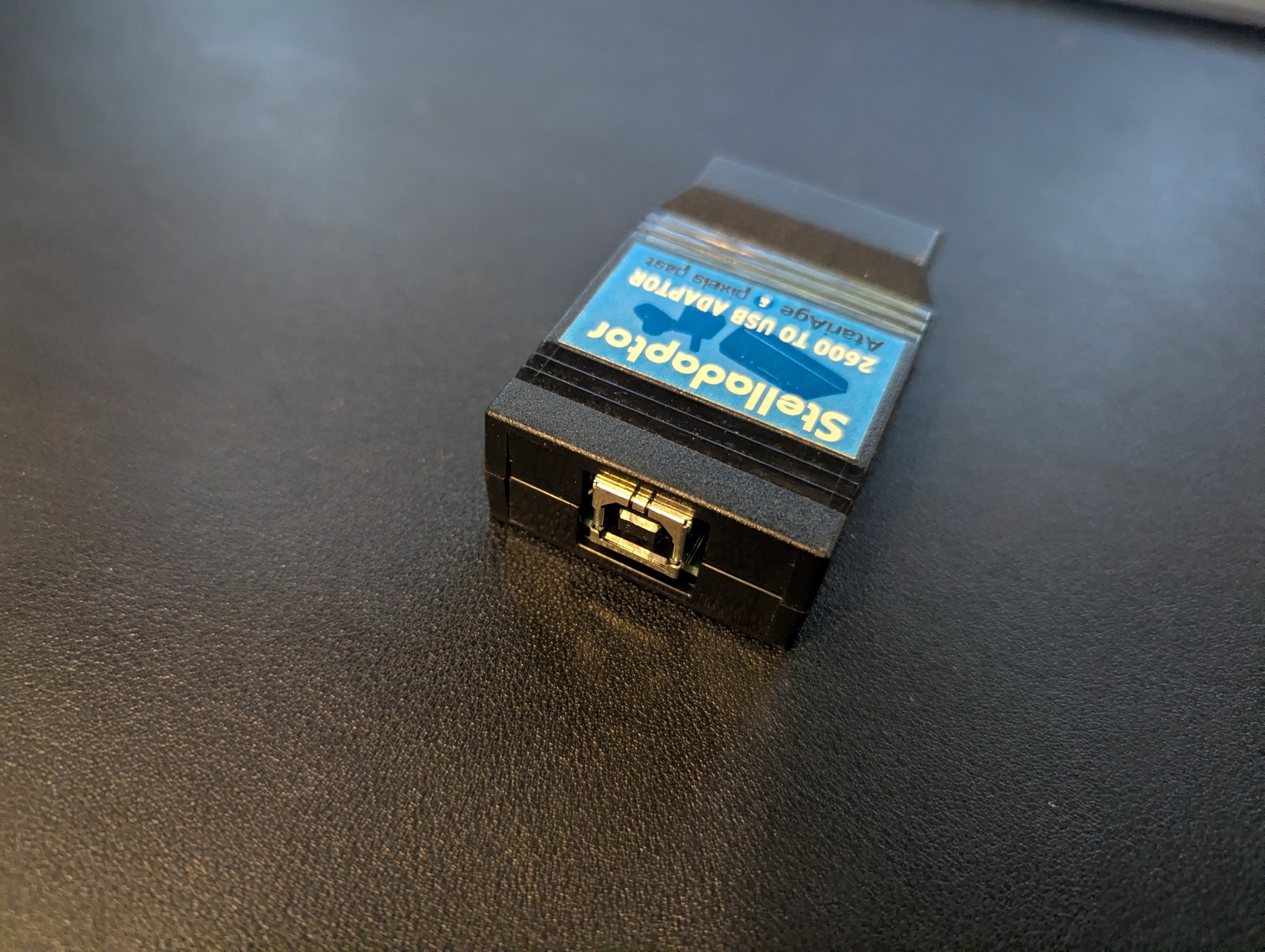

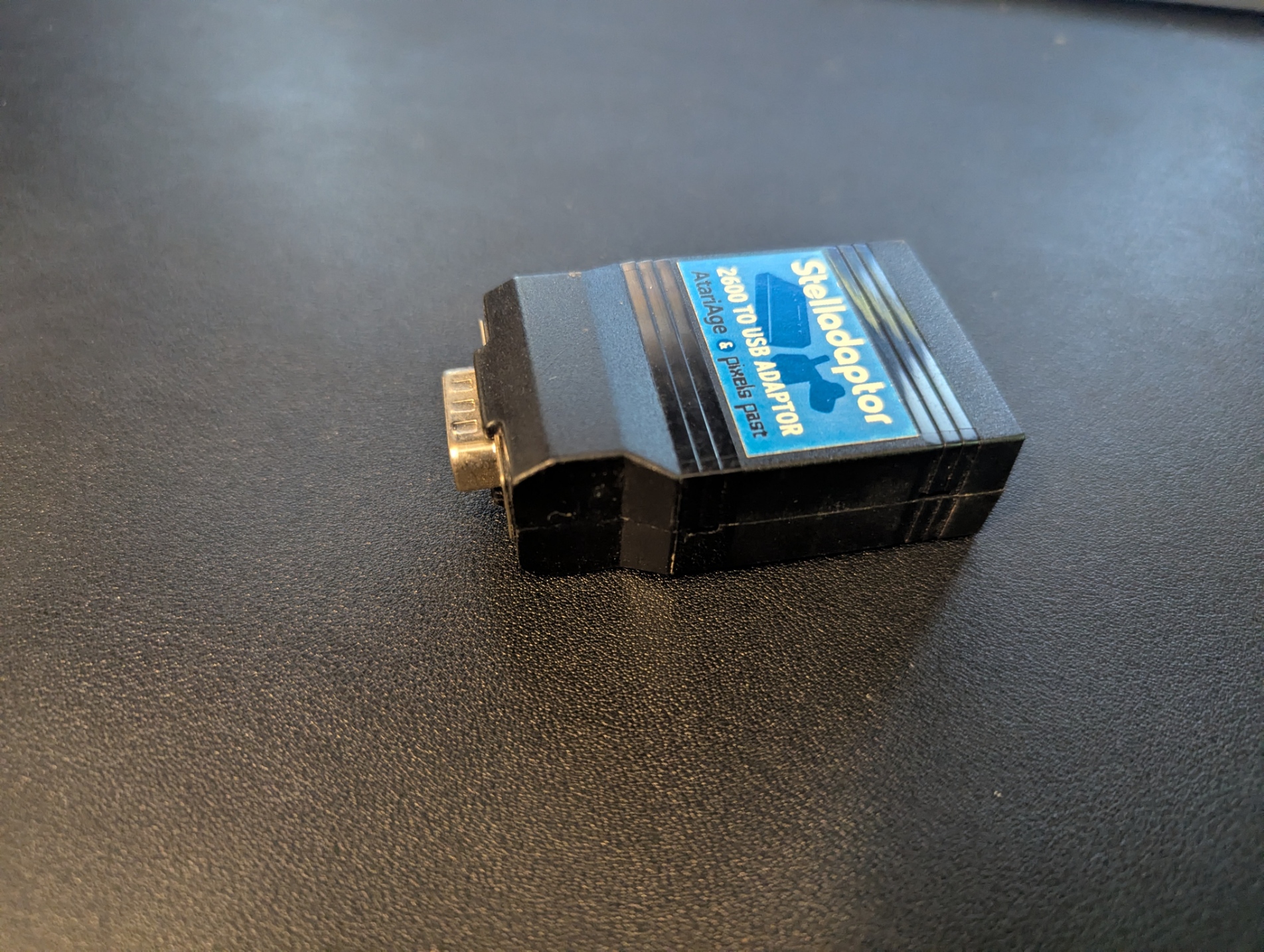

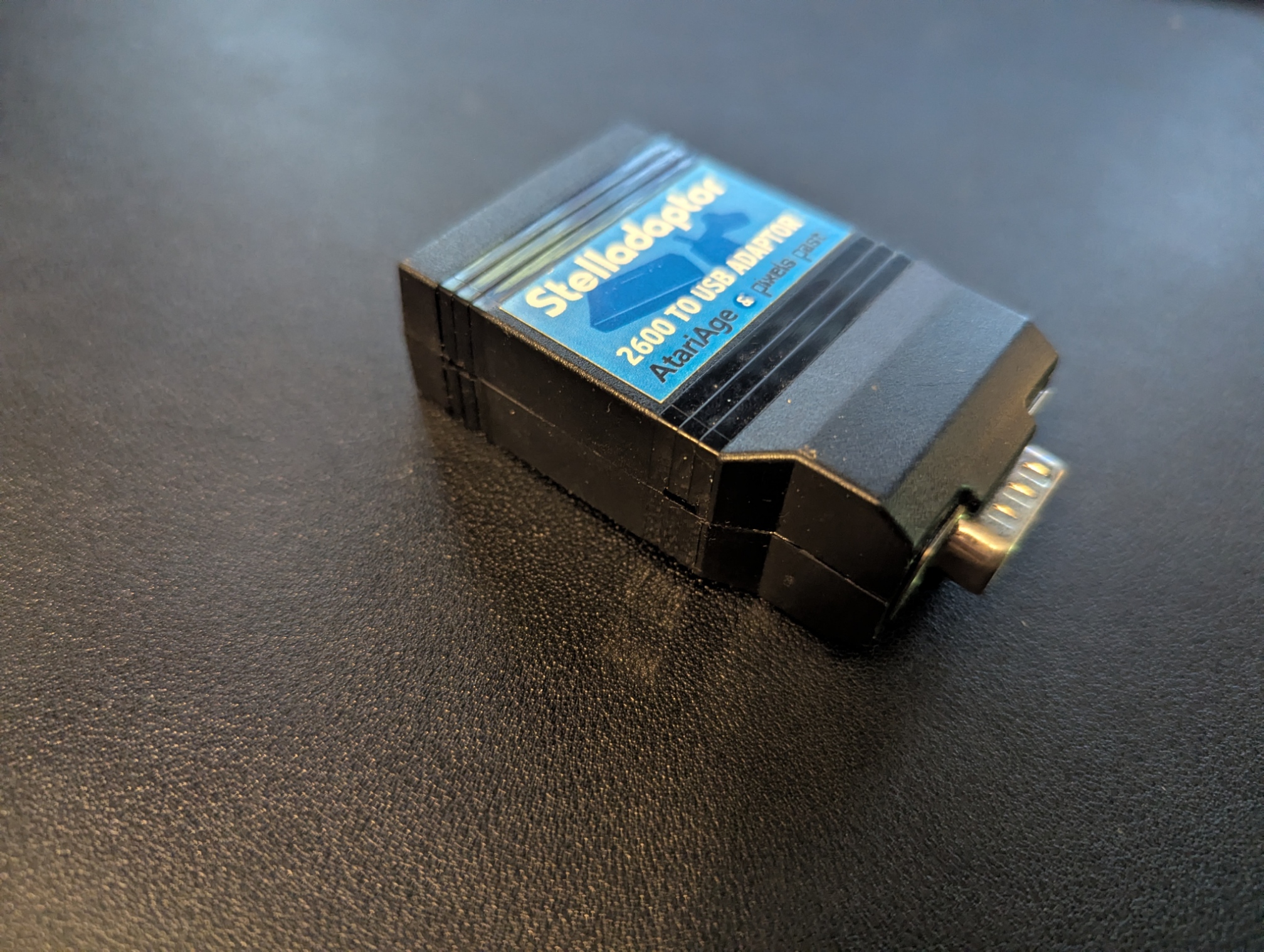

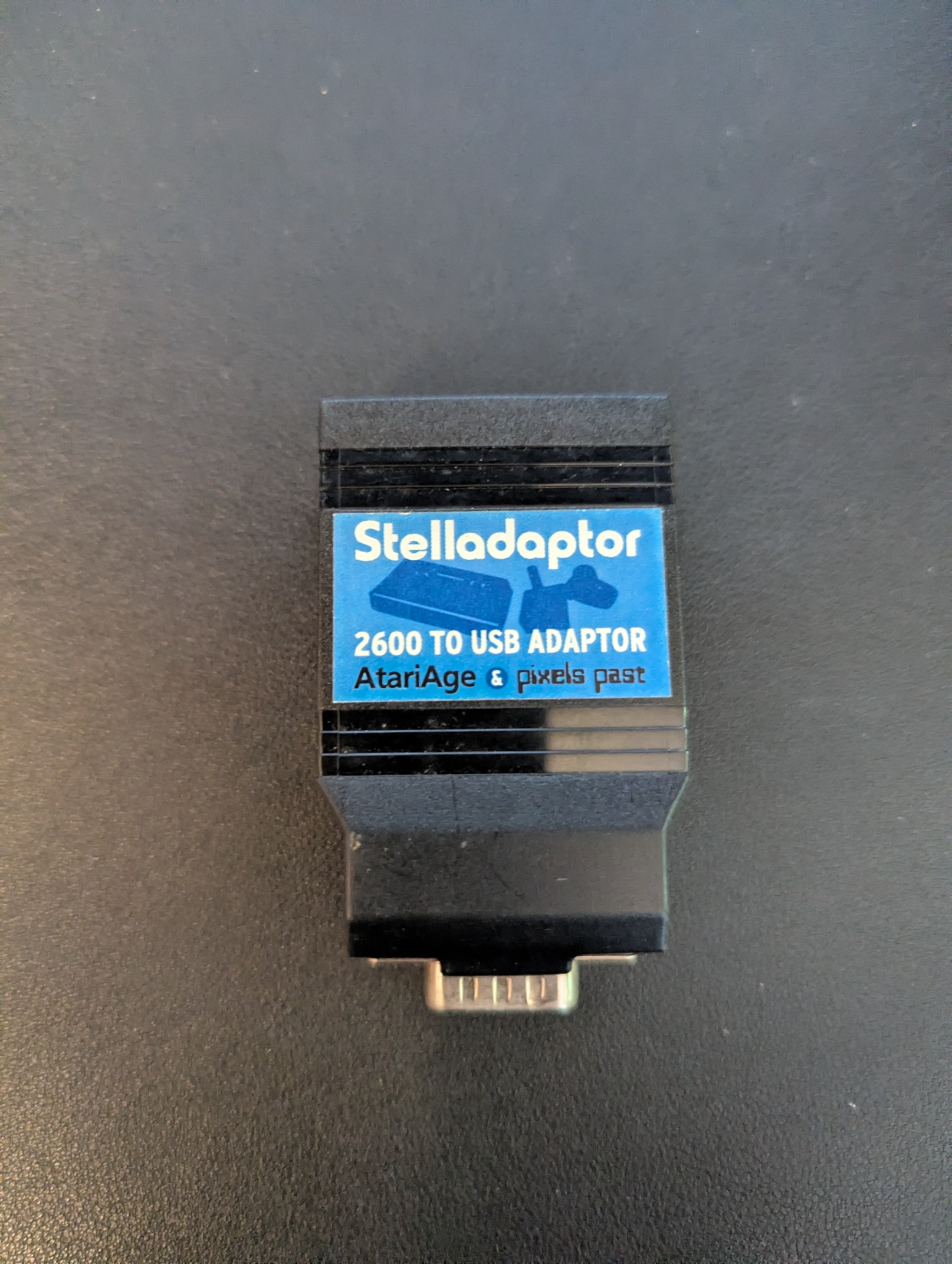

The Stelladaptor is a USB interface adapter that connects standard nine-pin Atari 2600 controllers — including joysticks, paddles, and driving controllers — to modern personal computers. Released in March 2004 by Pixels Past in partnership with AtariAge, it was formally unveiled at the PhillyClassic 5 show. The adapter presents itself to the host as a standard USB Human Interface Device (HID), requiring no drivers on Windows, Mac OS X, or Linux, and allowing period Atari controllers to be used with software emulators while preserving the original tactile feel of the vintage hardware.

The Stelladaptor was designed by Joe Grand of Pixels Past, a hardware engineer widely known for his work with the L0pht security research collective and as author of Hardware Hacking: Have Fun While Voiding Your Warranty (Syngress, 2004).

Supported controllers: Atari 2600 standard joystick, Atari 2600 paddles, and the Atari driving controller (spinner). Native emulator support at launch included Stella and z26; MAME supported joystick and paddle input but not driving controllers.

Not supported: Atari keypad controllers, the CBS Booster Grip, and non-standard third-party gamepads such as Sega and Amiga CD32 controllers. Any controller relying on second-fire-button or keypad signaling on the DE-9 connector is outside the adapter's design.

ColecoVision compatibility. Although the Stelladaptor is electrically compatible with the ColecoVision's DE-9 controller port, its usefulness with ColecoVision emulators is limited to games that require only a single fire button and no keypad input. The ColecoVision controller pinout carries a second fire button and a numeric keypad matrix that the 2600-style DE-9 does not; the Stelladaptor therefore cannot report those inputs to the host. The majority of the ColecoVision library — which relies on the keypad for game selection, difficulty, or in-game control — is not fully playable through a Stelladaptor. Single-button, keypad-free titles remain fully playable.

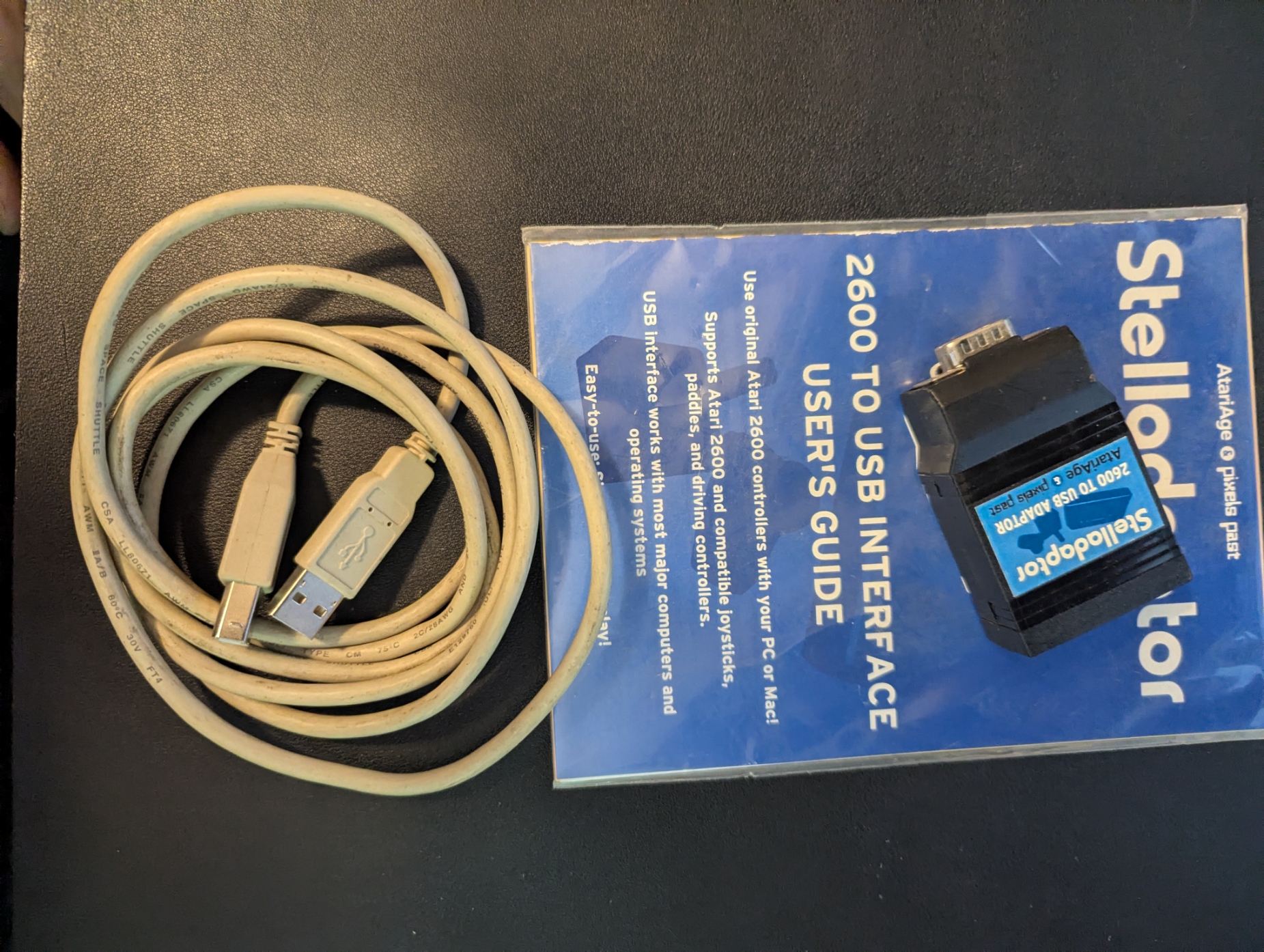

Historical significance. The Stelladaptor is one of the earliest widely available USB adapters designed specifically to preserve the original-controller experience for a classic console library. It directly enabled a generation of feel-authentic Atari 2600 emulation on modern hardware. Production ended by 2009, and original examples with intact packaging and user's guide have become collectible in their own right.
