Hardware
| Catalogue ID | CVH-0335 |
|---|---|
| Manufacturer | Keelog |
| Region | United States |
| Product number | PSUCCVSMGRUS |
| Year | 202* (approximate) |
| Type | Power Supply (Power) |
| Connects via | 120V AC |
| Platform | ColecoVision |
| Status | Released |
| Rarity | Loose R1 · Complete R1 |
| Manufacturer site | https://www.keelog.com/colecovision-psu-modern-gray-us-replacement-colecovision-power-supply-us-plug/ |
The ColecoVision PSU Modern Gray US is a modern replacement power supply manufactured by Keelog specifically for the original ColecoVision video game system.
Designed as a replacement for the large original Coleco power supply, the Keelog PSU provides the three separate DC voltages required by the ColecoVision while incorporating modern power-supply technology and additional electrical protection.

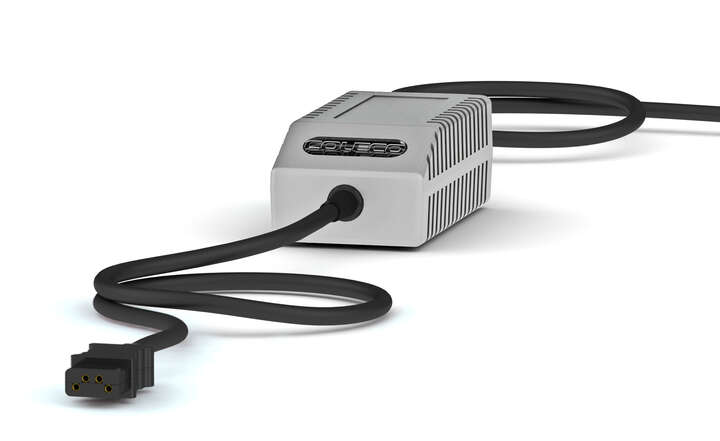

The power supply connects directly to an unmodified ColecoVision using a specialized four-pin connector matching the original ColecoVision power connection.

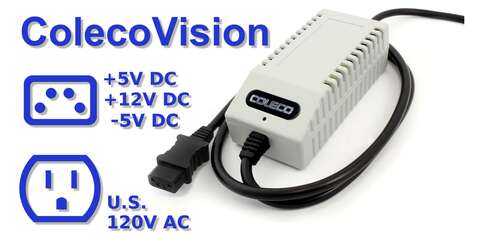

It provides three stabilized DC outputs:
This reproduces the three-voltage arrangement required by the original ColecoVision while providing considerably greater available current than the original Coleco power supply.

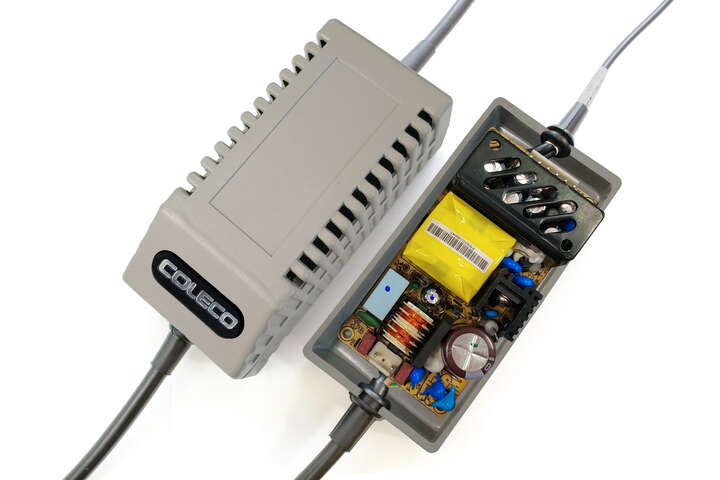

Keelog designed the power supply from scratch as a modern replacement rather than rebuilding or modifying an original Coleco power supply.
The unit incorporates over-voltage and over-current protection and is fused on both the AC and DC sides. It is also fully isolated.
A rear-mounted AC switch allows the power supply to be turned off without unplugging it.
The compact modern enclosure measures approximately 5.0 × 2.3 × 1.6 inches and weighs approximately 1.3 pounds, making it considerably smaller and lighter than the original ColecoVision power supply.
The front of the gray enclosure features an illuminated display/logo. Its LED brightness can be adjusted using a potentiometer.
Original ColecoVision power supplies are now more than four decades old. The Keelog replacement provides a modern means of operating an original, unmodified ColecoVision without relying upon its aging factory power supply.
Unlike USB conversion solutions such as the ColUSB, the Keelog unit is a complete AC-powered replacement power supply. It plugs into a household electrical outlet and supplies the ColecoVision directly through its original four-pin power connection.
This makes the unit a modern continuation of the ColecoVision hardware ecosystem and a practical accessory for maintaining original consoles in operating condition.
Product: ColecoVision PSU Modern Gray US
Manufacturer: Keelog
Manufacturer Product No.: PSUCCVSMGRUS
Type: Modern Replacement Power Supply
Platform: ColecoVision
Color: Gray
Output: +5V/4.0A, +12V/2.0A, −5V/0.5A DC
Console Connection: Original-style four-pin ColecoVision power connector
Dimensions: 125 × 59 × 42 mm
Weight: 0.6 kg / 1.3 lb
Manufacturer: Wroclaw, Poland
