Side-Car ADAM Computer System Power Supply

8-bit Milli Games · Power Supply
Platform, category and status for this entry were derived automatically from the source list and have not yet been checked by hand.
Side-Car ADAM Computer System Power Supply
e751ac2738.jpg 480693421_938946885102154_2199696620693505599_n.jpg 480701589_938946475102195_2992862508178803893_n.jpg 480837093_938946881768821_5669668660397711874_n.jpg 480690670_938946515102191_7132536851614616720_n.jpg 480783812_938946871768822_7256843864888737114_n.jpg
6 photographs · hover to enlarge
Catalogue IDHW-0057
Manufacturer8-bit Milli Games
Person or teamWilliam Hicks/Milli/8-Bit Milli
TypePower Supply (Power)
PlatformADAM
StatusReleased
Manufacturer site https://consolemoo.com
SourceCollectors DB v1.00 Master

Notes

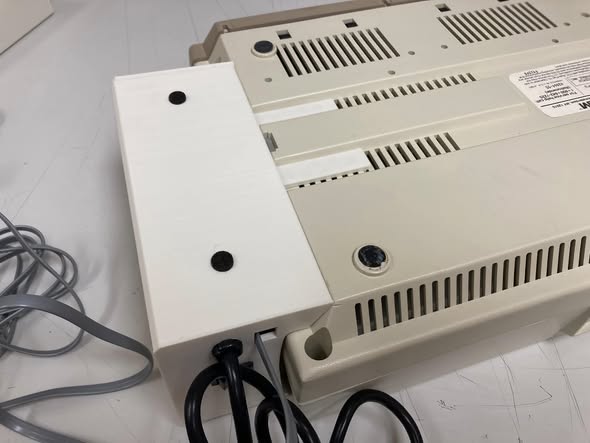

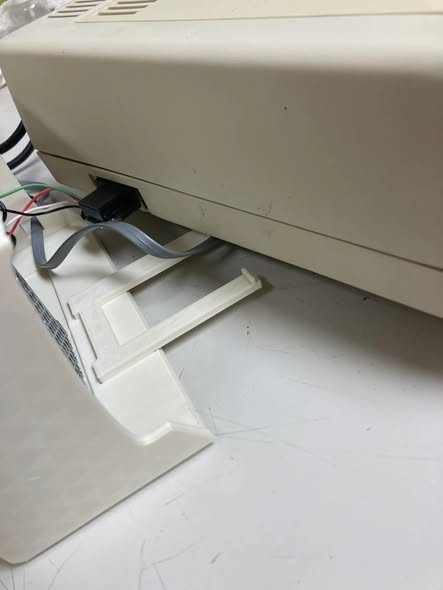

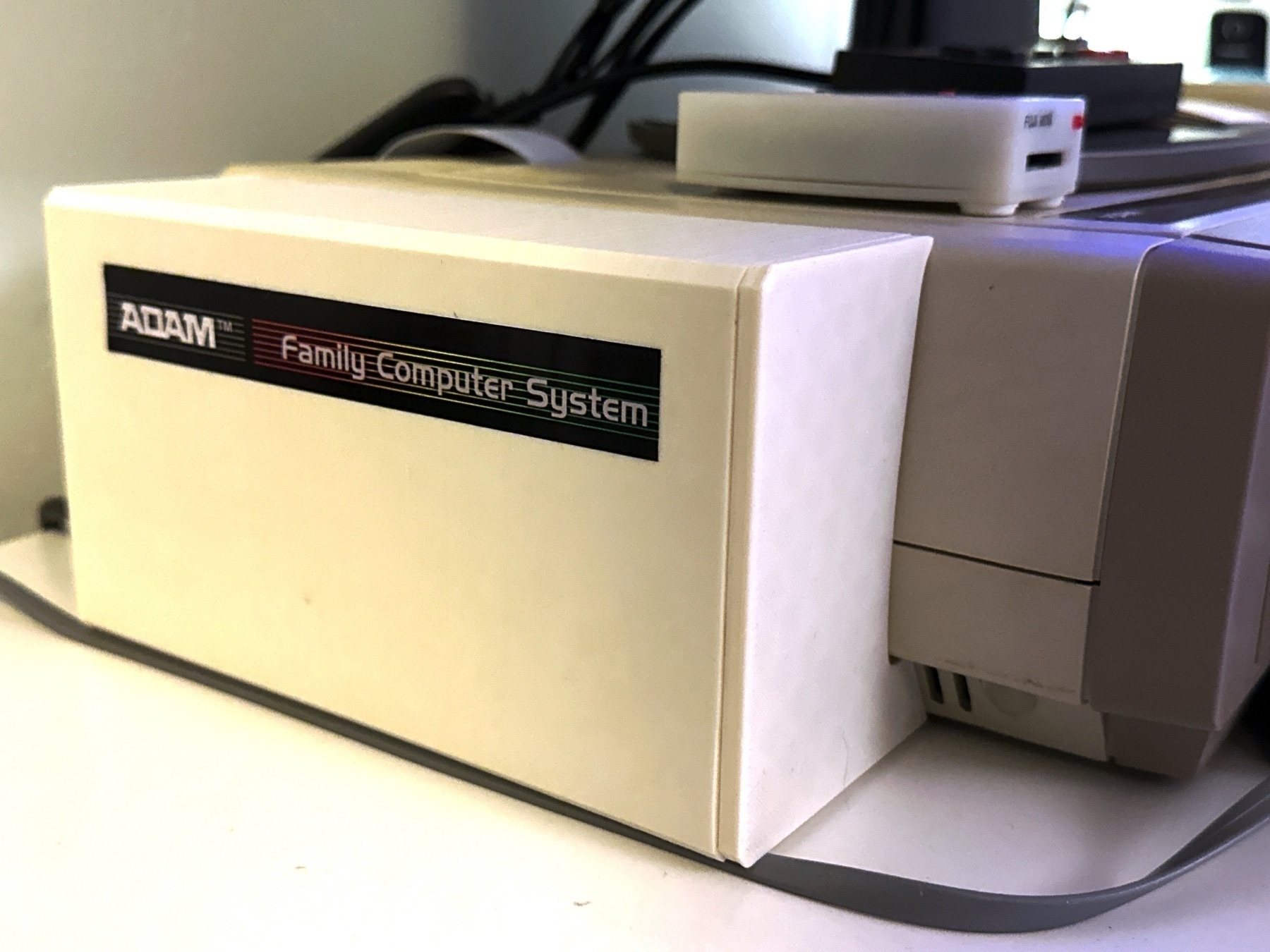

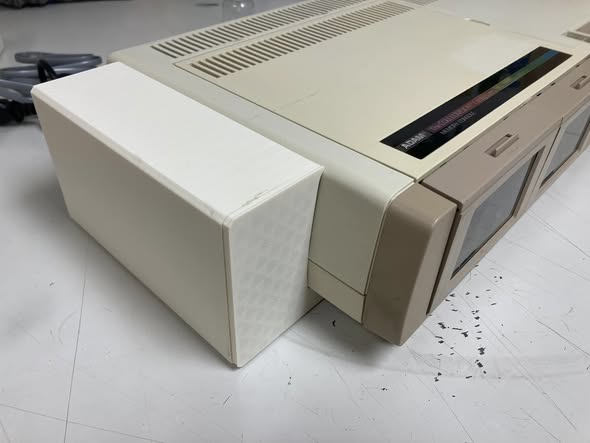

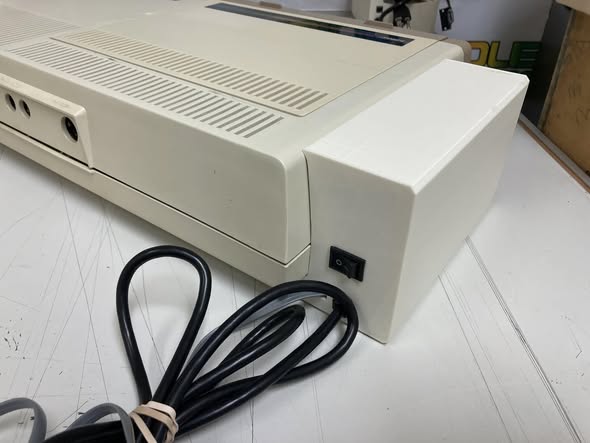

An external ADAM power supply in a case designed to sit against the machine rather than behind it - the side-car arrangement the name describes.

Why it is needed

  • The ADAM's power supply is inside its daisy wheel printer, so a machine without a working printer will not start.
  • An external supply bypasses the printer and spares it the load.
  • It has to provide +12V on two pins, +5V, -5V and ground; the negative rail is why a single-voltage adapter will not do.

WHAT IS INSIDE THIS ONE, and how it differs from ConsoleMoo's other supplies beyond its case, is not recorded here.
