I/O Expansion Breakout Extender Board Set

Lundy Electronics · Serial Parallel Interface
I/O Expansion Breakout Extender Board Set
Lundy Electronics - I-O Expansion Breakout Extender Board Set - _01.jpg Lundy Electronics - I-O Expansion Breakout Extender Board Set - _05.jpg Lundy Electronics - I-O Expansion Breakout Extender Board Set - _04.jpg Lundy Electronics - I-O Expansion Breakout Extender Board Set - _03.jpg Lundy Electronics - I-O Expansion Breakout Extender Board Set - _02.jpg
5 photographs · hover to enlarge
Catalogue IDHW-0094
ManufacturerLundy Electronics
Person or teamJohn Lundy
Product numberSKU #10019
TypeSerial Parallel Interface (Interface)
Connects viaExternal Expansion Bus
PlatformADAM
StatusReleased
Manufacturer site https://lundyelectronics.com
SourceCollectors DB v1.00 Master

Notes

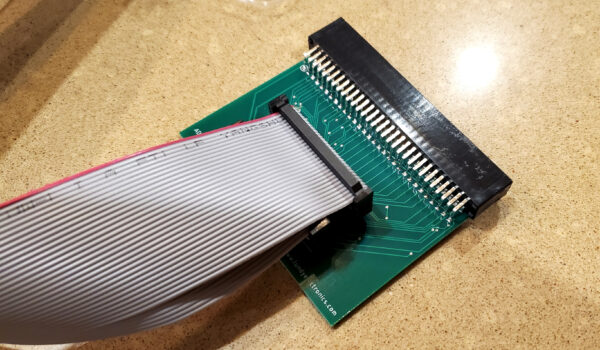

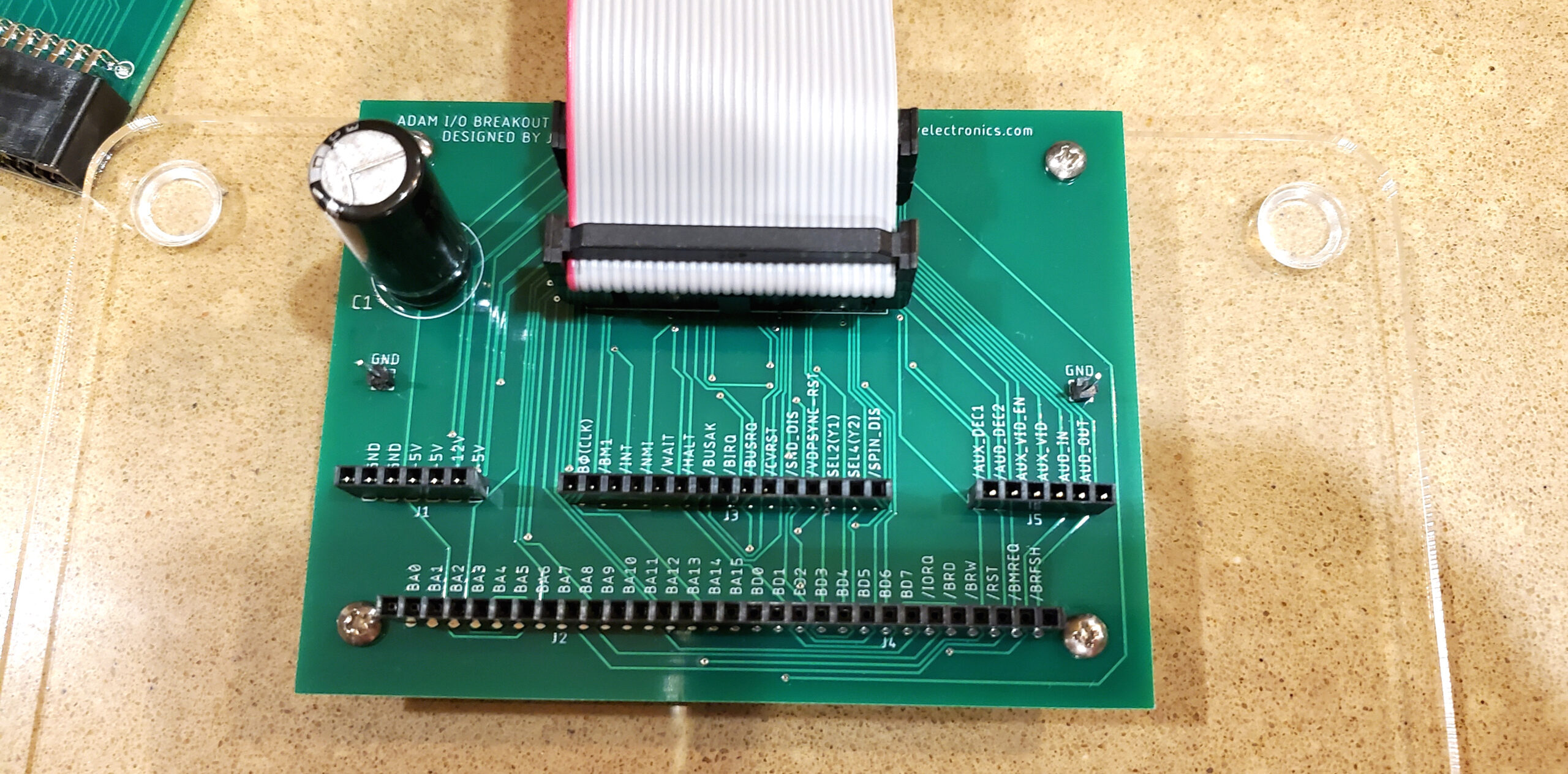

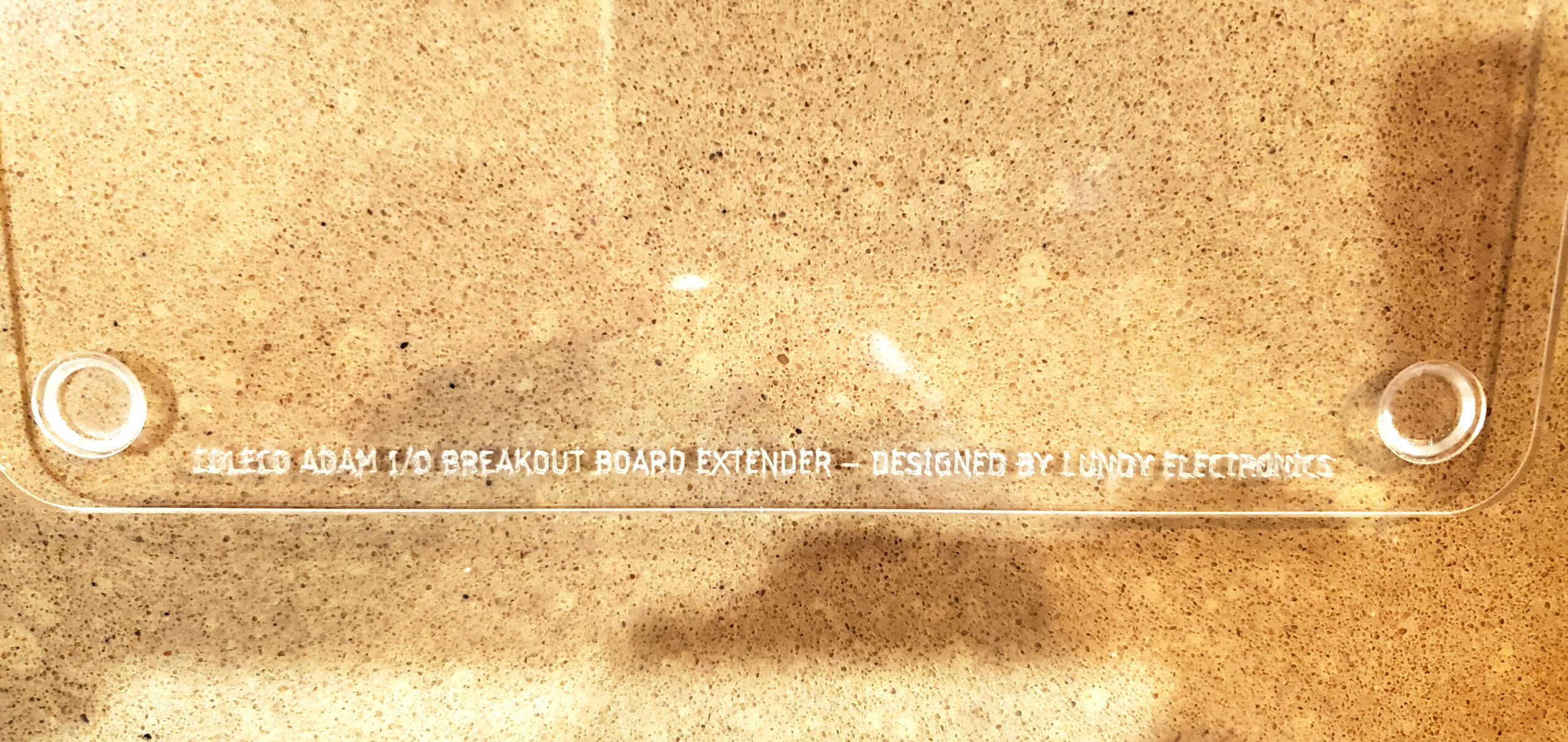

Coleco ADAM Expansion I/O – The Lundy Electronics ADAM I/O Expansion Breakout Extender Board Set is designed for ADAM hardware developers as an easy way to prototype designs. This kit breaks out and extends every signal and voltage from the ADAM I/O expansion port and extends it 12” through two 30-pin ribbon cables to a receiving project side breakout board. The breakout board is mounted to an unpopulated breadboard base for the end user to supply and configure their own breadboard design based on their development needs.

If you need to supply your own breadboards, we highly recommend BusBoard.com breadboards. They manufacture some of the highest quality breadboards on the market and highly recommend them.

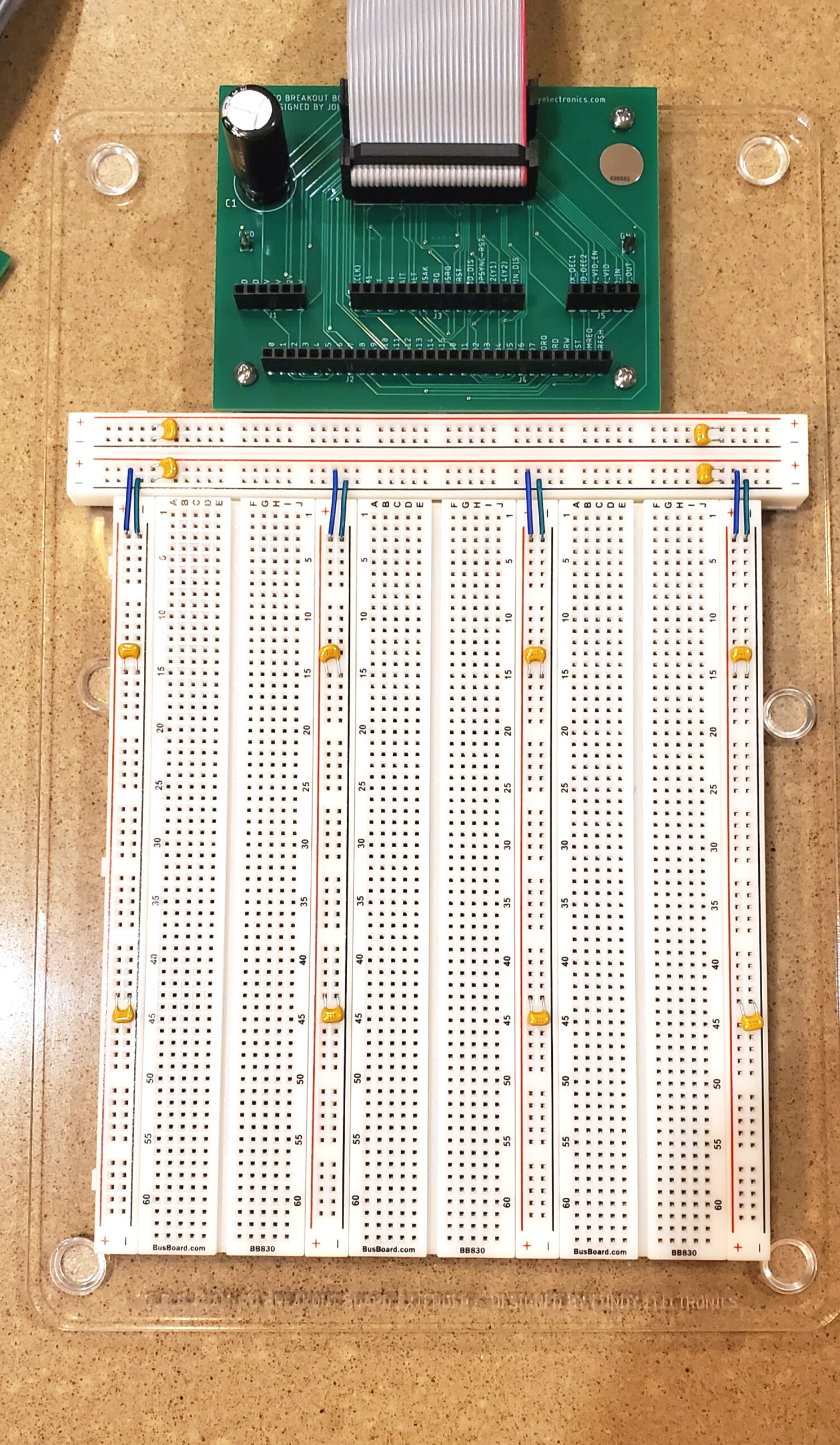

Also pictured is an example of the Lundy Electronics preferred breadboard layout which consists of two reconfigured Bus Board BB1660 breadboards. Breadboards are not included. Limit one per customer.
