I/O Expansion Hub (ADAM beige)

Lundy Electronics · Serial Parallel Interface
I/O Expansion Hub (ADAM beige)
LUNDY IO Expansion Hub.jpg LUNDY IO Expansion Hub 2.jpg LUNDY IO Expansion Hub 3.jpg Lundy Electronics - I-O Expansion Hub - _06.jpg Lundy Electronics - I-O Expansion Hub - _05.jpg Lundy Electronics - I-O Expansion Hub - _04.jpg Lundy Electronics - I-O Expansion Hub - _03.jpg Lundy Electronics - I-O Expansion Hub - _02.jpg Lundy Electronics - I-O Expansion Hub - _01.jpg Lundy Electronics - I-O Expansion Hub - _10.jpg Lundy Electronics - I-O Expansion Hub - _09.jpg Lundy Electronics - I-O Expansion Hub - _08.jpg Lundy Electronics - I-O Expansion Hub - _07.jpg
13 photographs · hover to enlarge
Catalogue IDHW-0095
ManufacturerLundy Electronics
Person or teamJohn Lundy
TypeSerial Parallel Interface (Interface)
Connects viaExternal Expansion Bus
PlatformADAM
StatusReleased
Manufacturer site https://lundyelectronics.com
SourceCollectors DB v1.00 Master

Notes

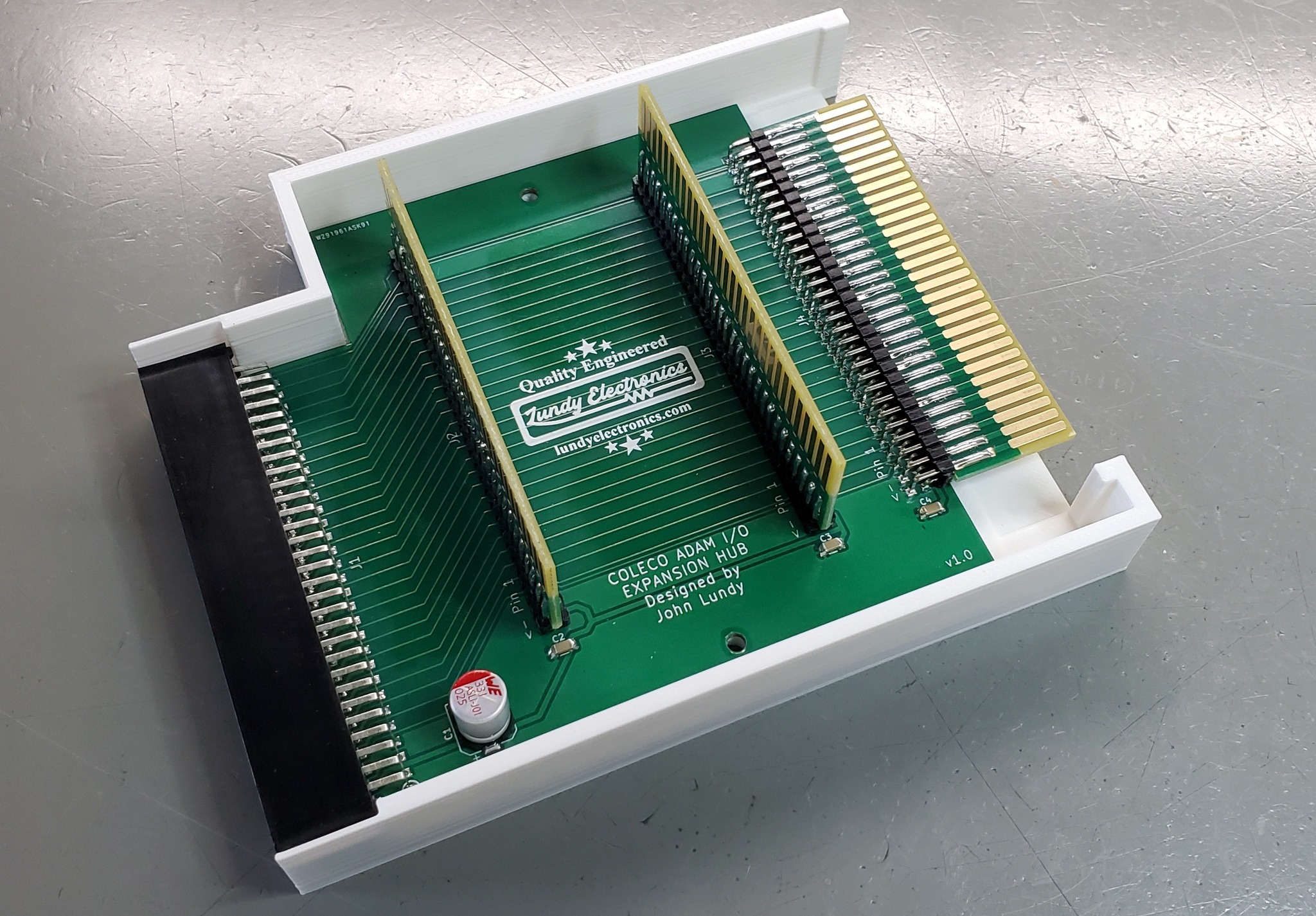

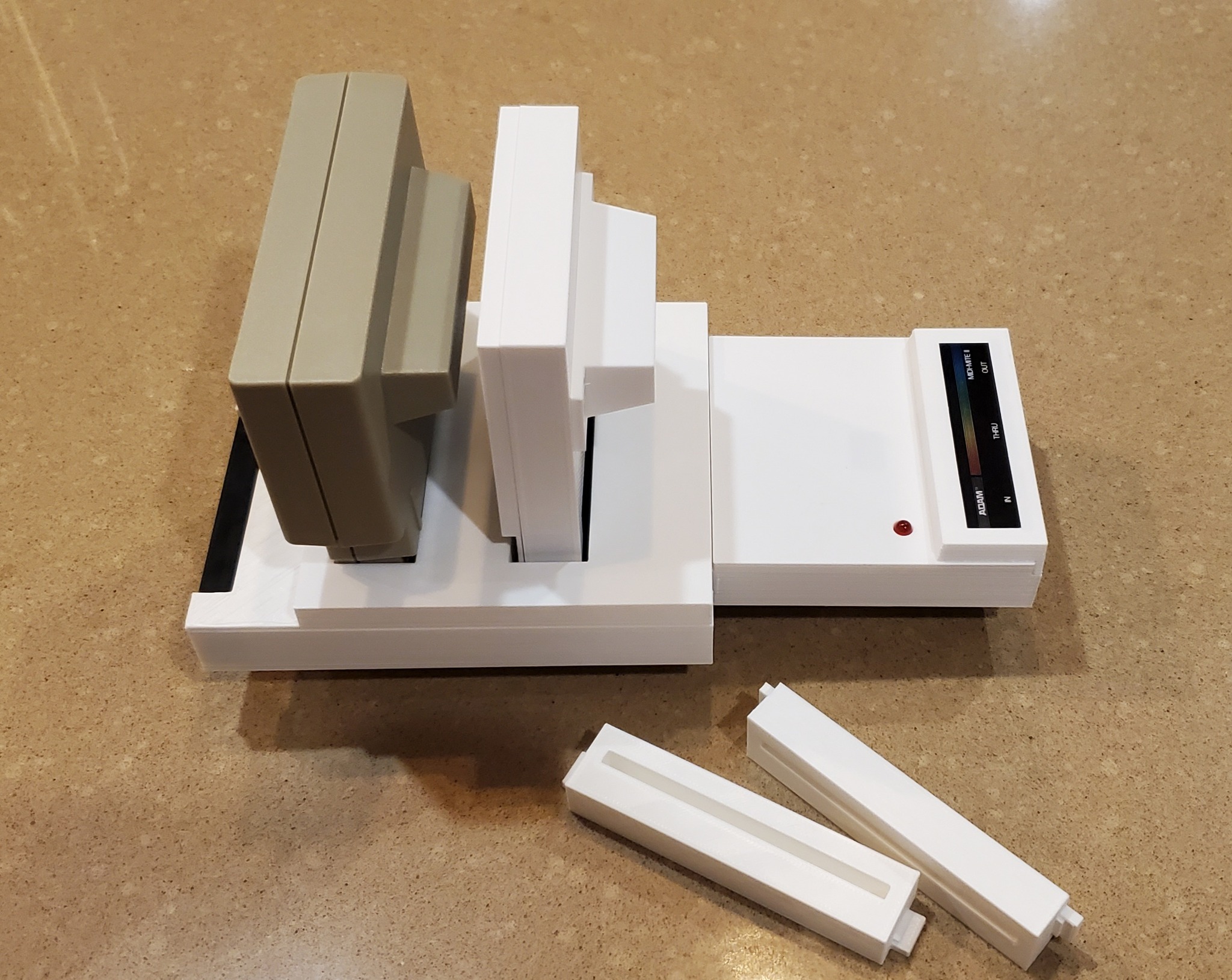

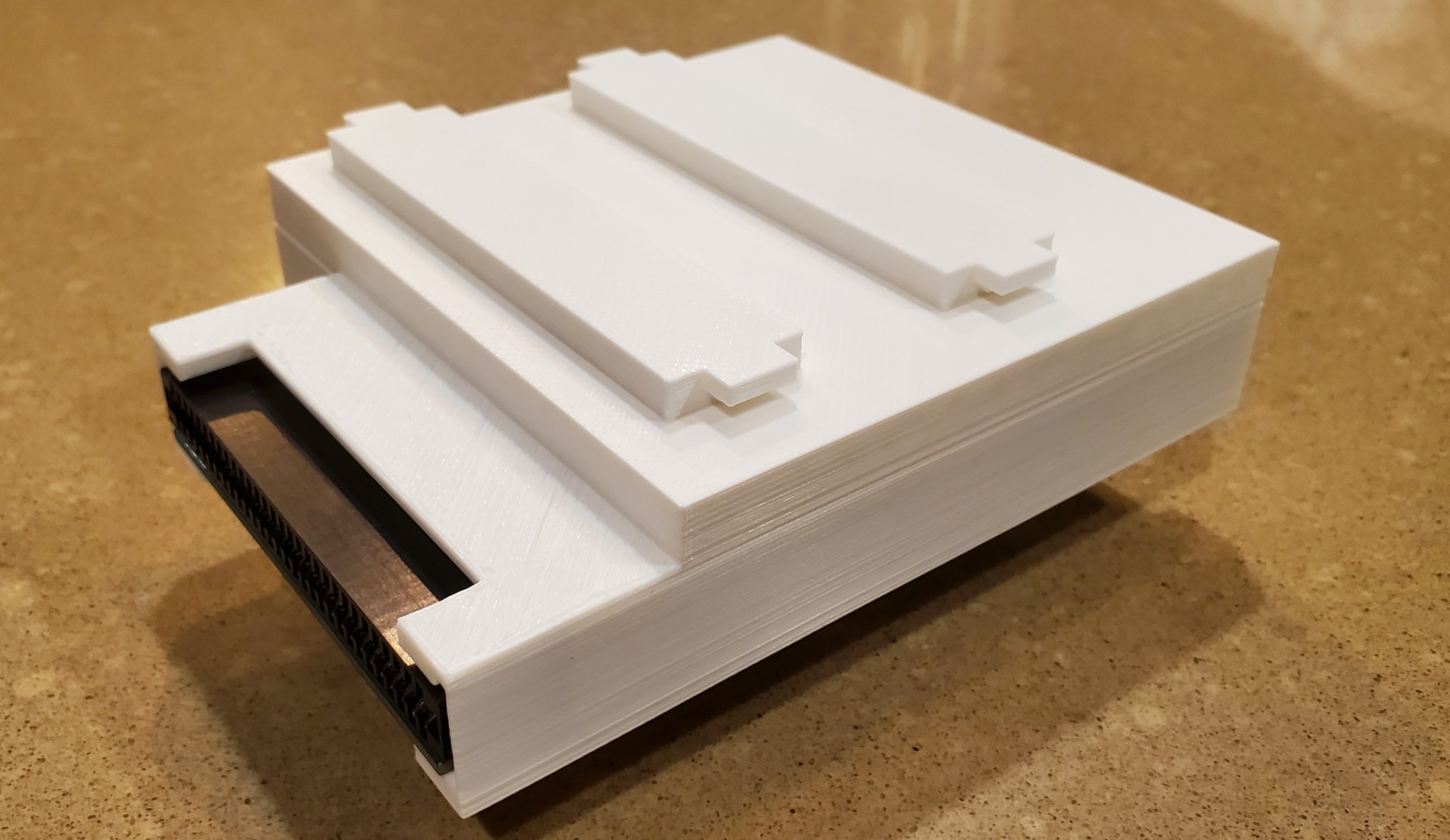

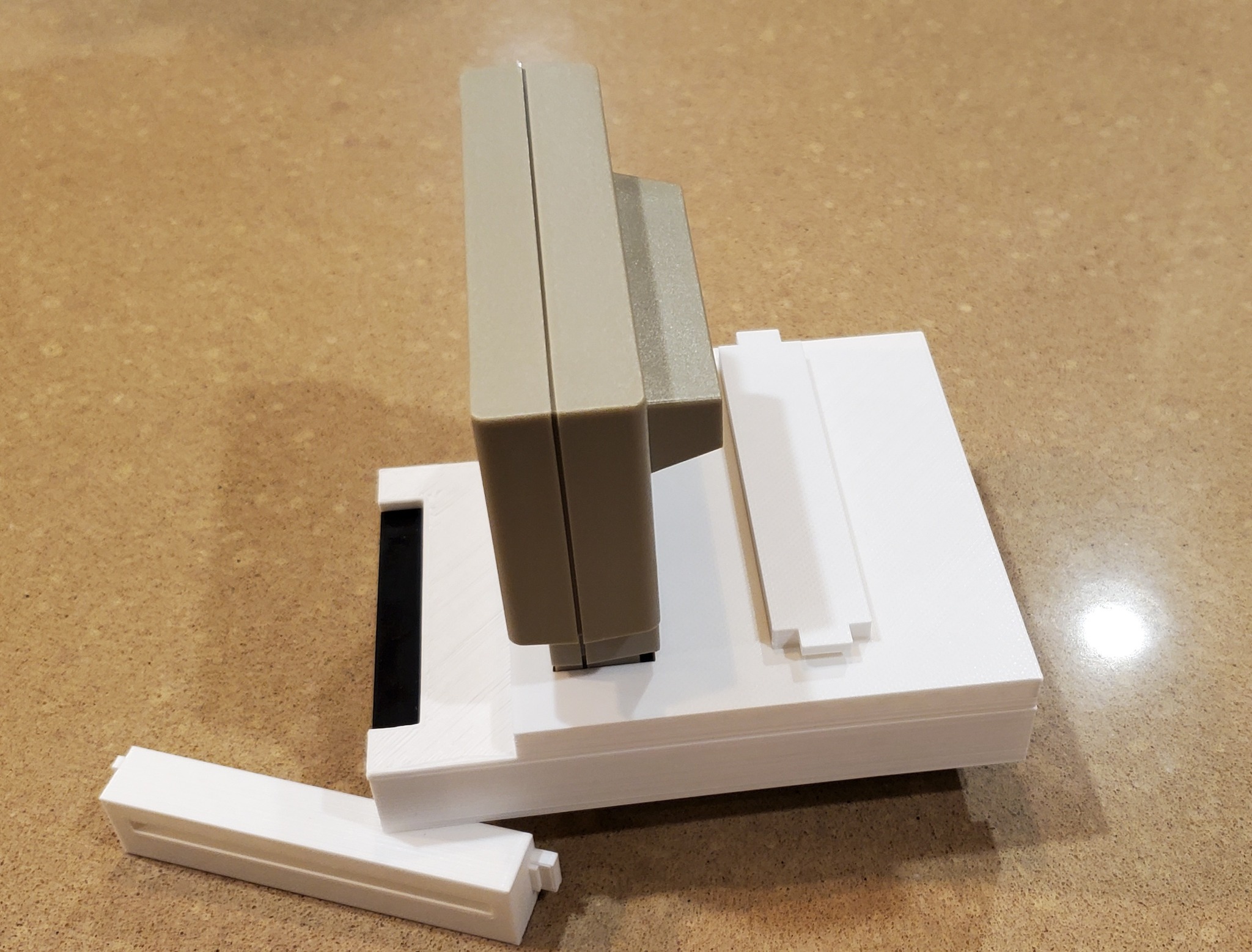

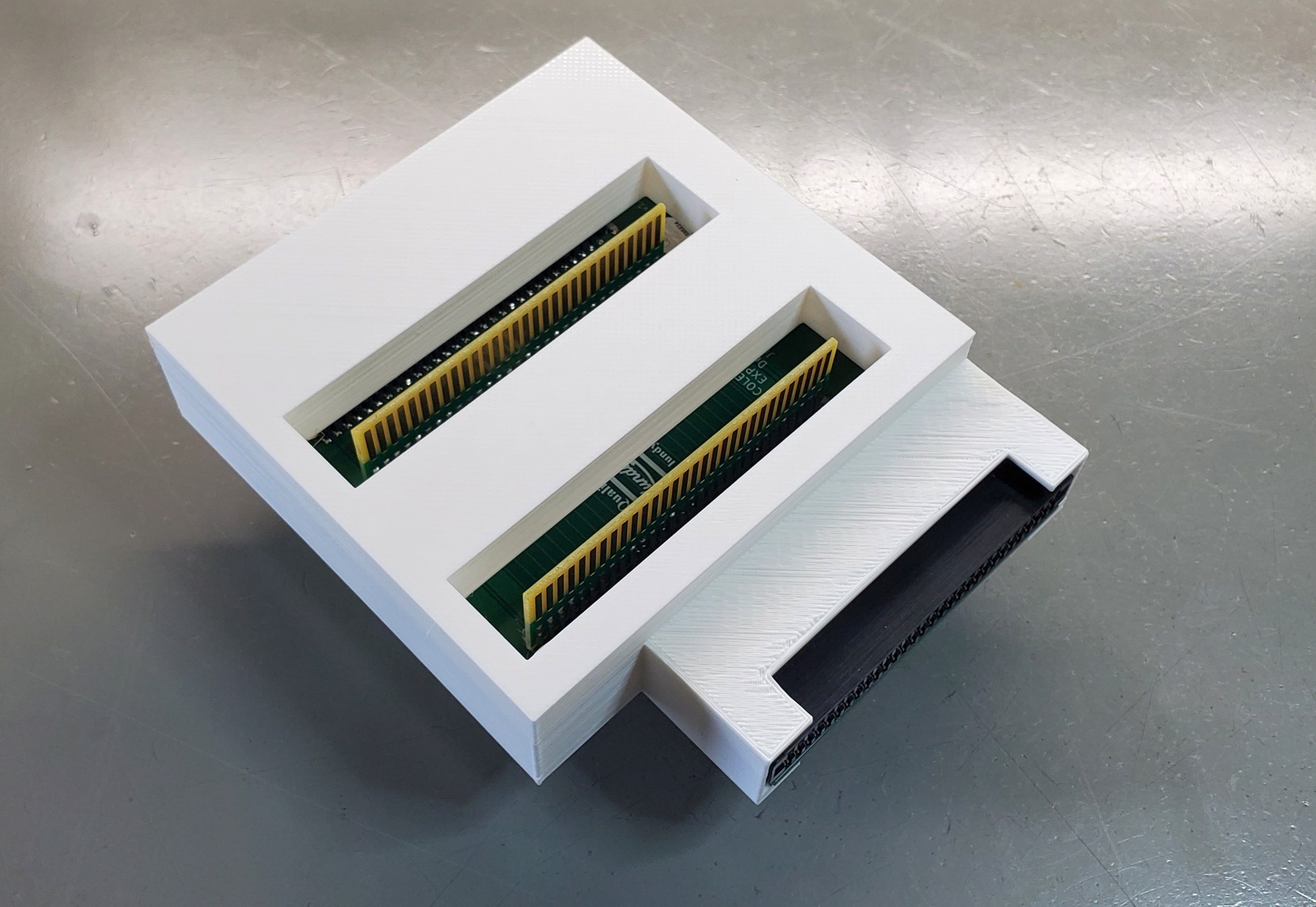

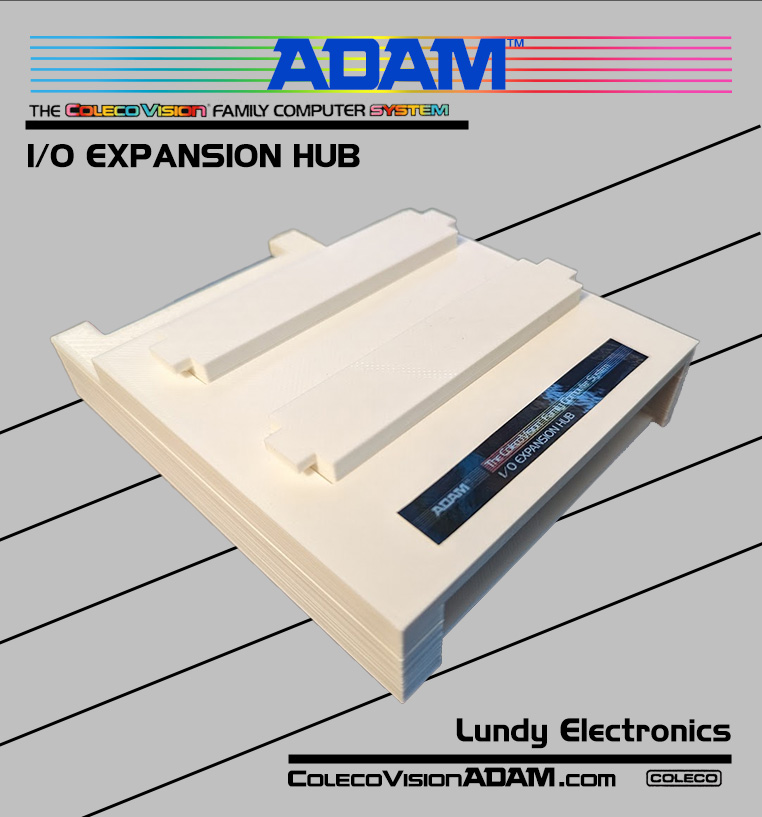

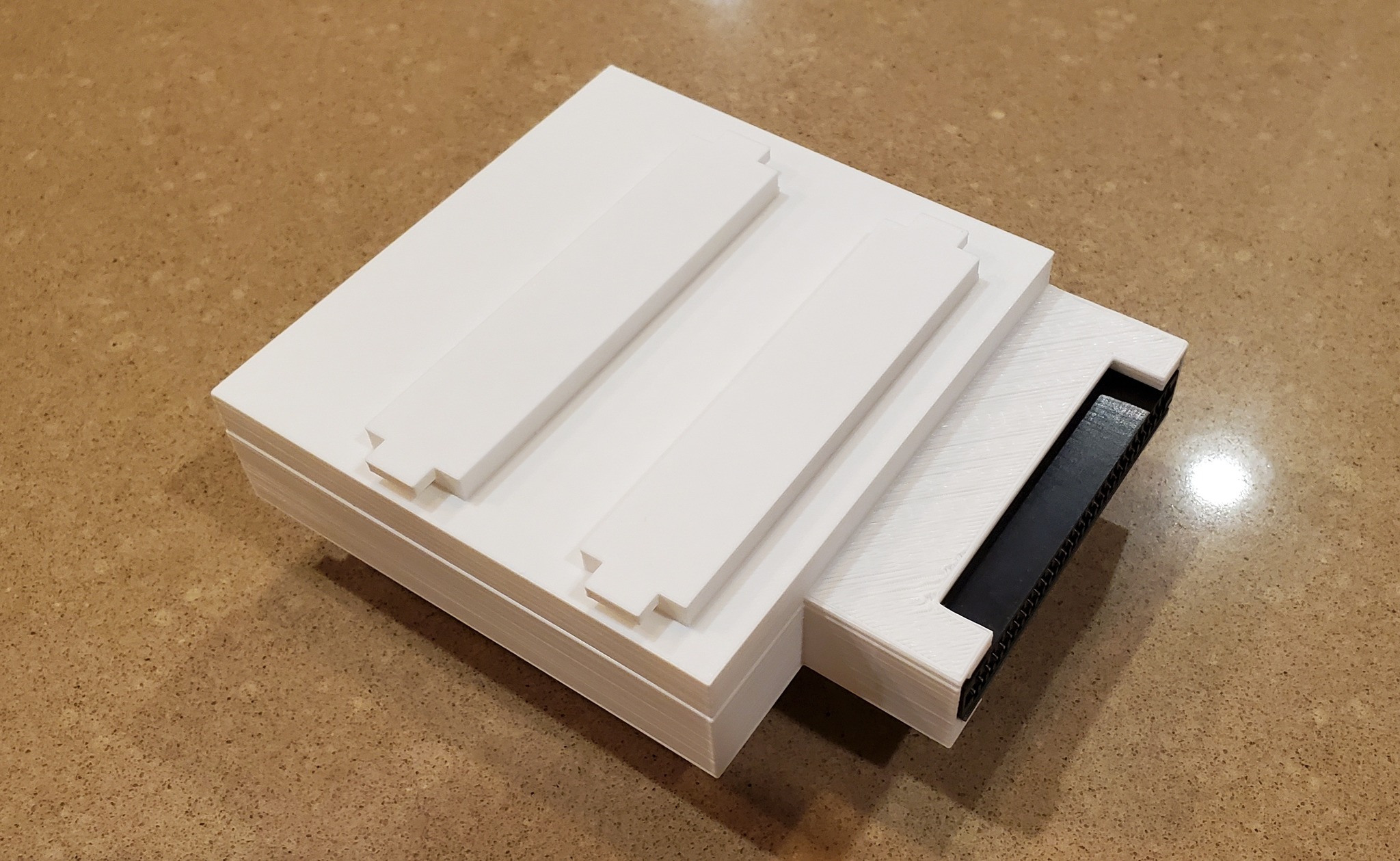

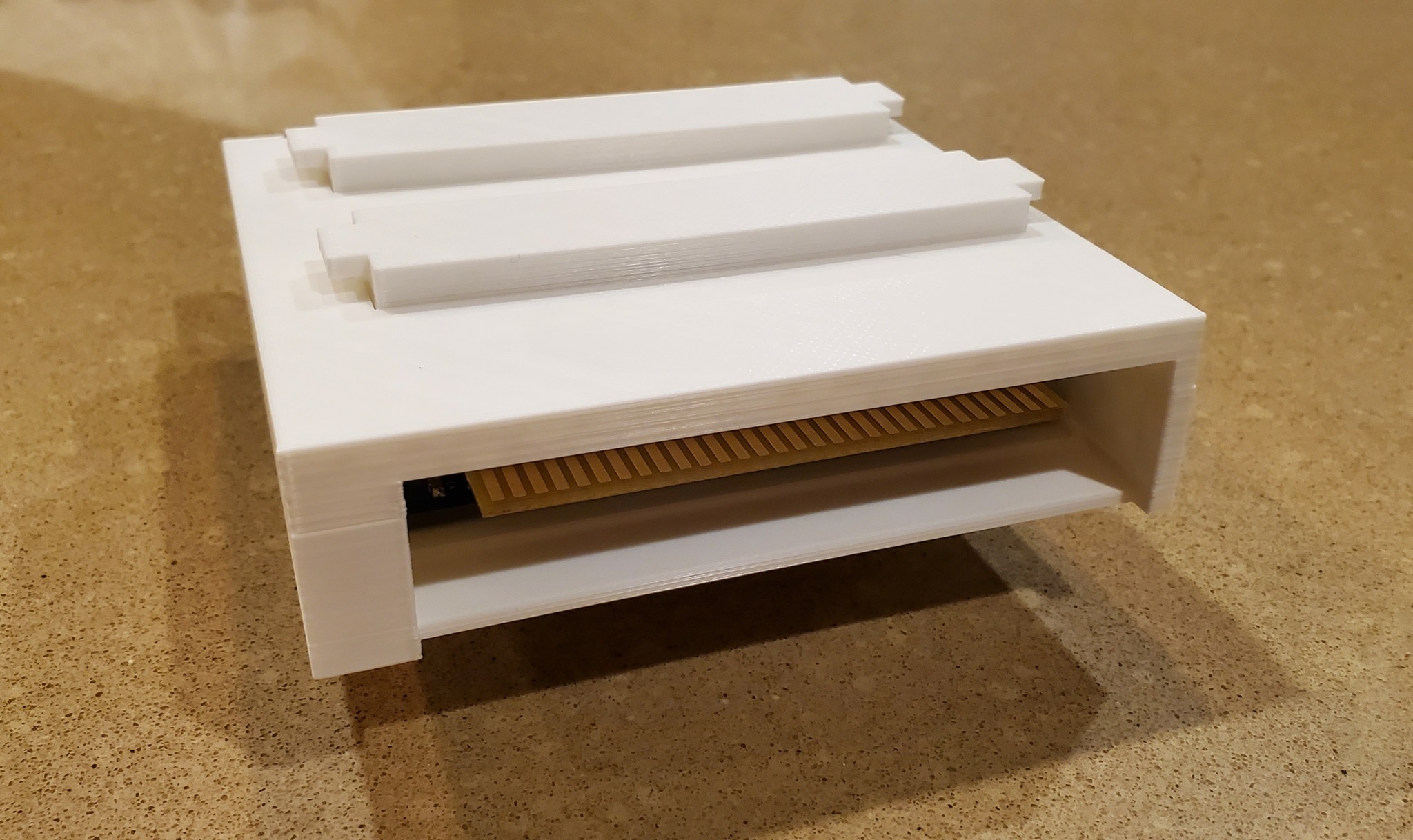

Lundy Electronics designed the ADAM I/O Expansion Hub with a professional PCB layout to eliminate crosstalk and provide proper power requirements, ENIG (gold) I/O edge card PCB fingers for durability and oxidation resistance, and high quality 3D-printed housing. The unit also comes with two top expansion port covers to cover any unused top port(s) safely.

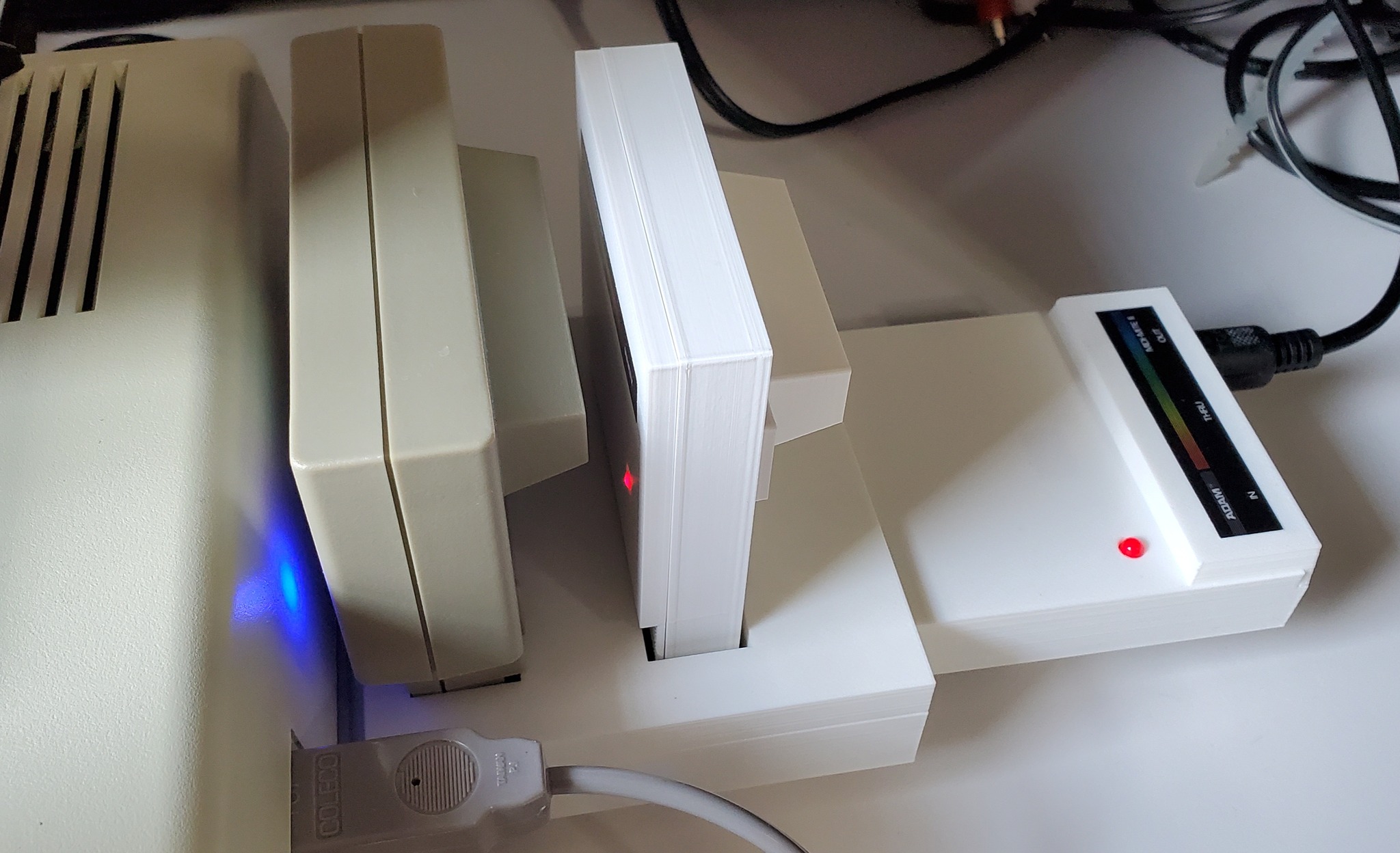

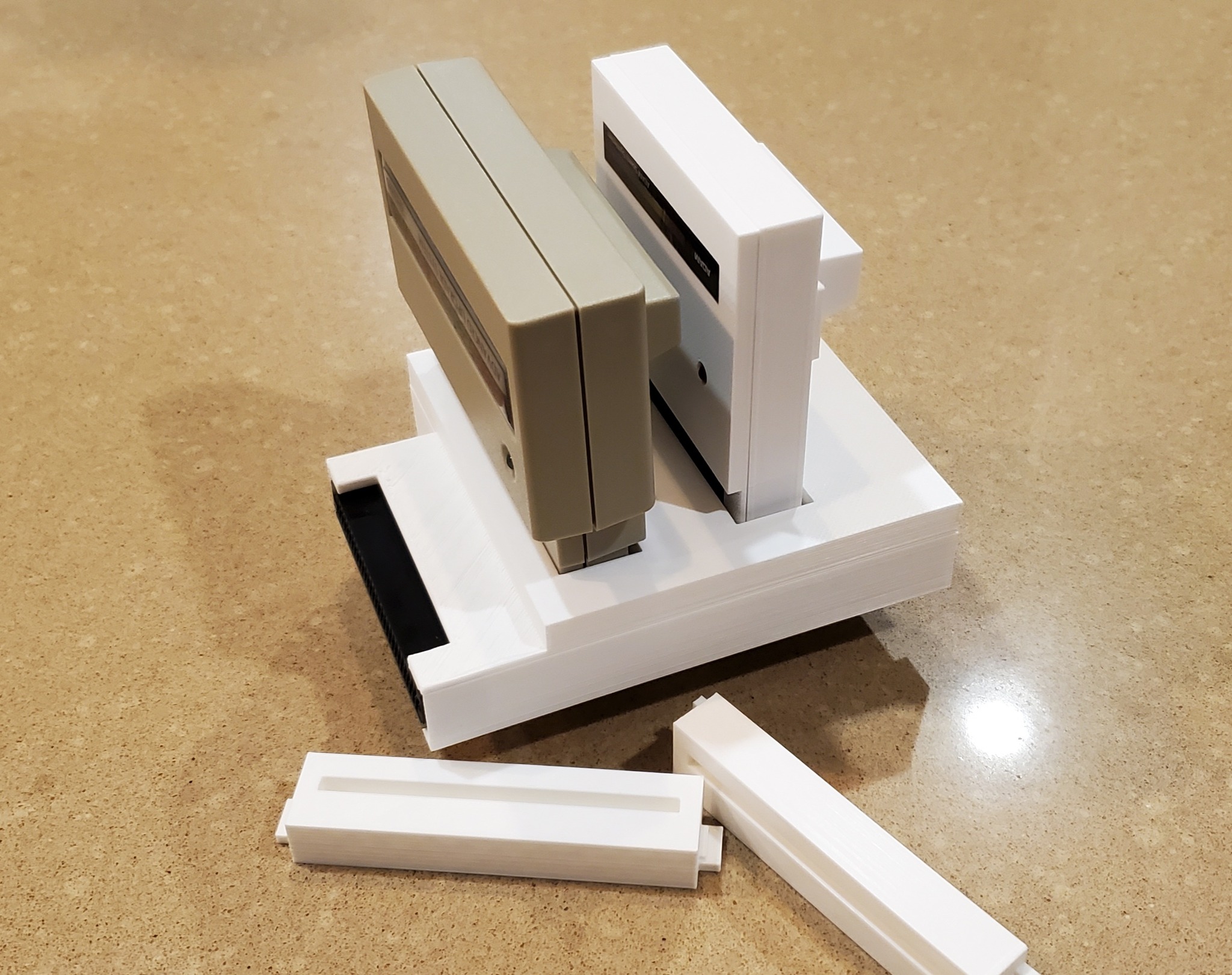

Allows the user to quickly connect and leave attached multiple expansion units. Has been tested with the following configurations:

Internal expansions: Lundy Electronics MIB238-WiFi card, Lundy Electronics 1MB RAM expander card
External expansion: Lundy Electronics ADAM Speech module, Lundy Electronics MIDIMITE II MIDI module, OPCODE SGM (Super Game Module) module
