MegaCopy Redux

We now have the ability to create new tapes with true digital formatting for the Coleco ADAM with Coleco ADAM MEGACOPY REDUX! You will no longer have to hunt down and spend a ton of money trying to procure a seemingly impossible-to-find MEGACOPY III by Trisyd back from 1987. Limit two per customer.

Note: You need two DDP drives in working order to use this device.

Features

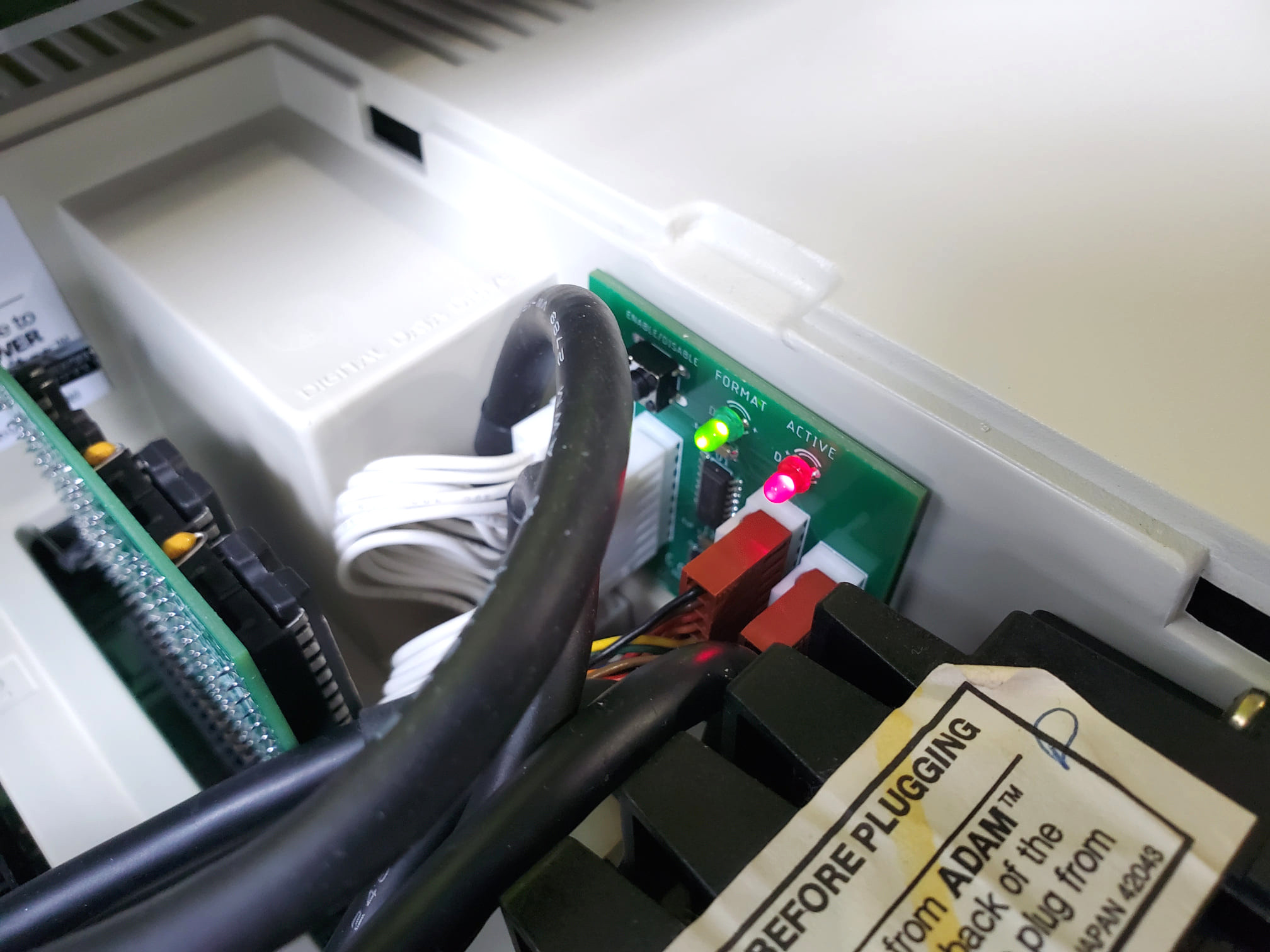

Small 1-7/8”x1-7/8” PCB adheres to the inside wall of the console just to the right of where the DDP connectors go. Stays totally hidden from view. Remove the console top cover to access the momentary button switch to ENABLE/DISABLE the device when needed.

The status LEDs and button are at the top for easy access.

Improved design by using a small 8-pin PIC microcontroller to handle the control logic in place of the discrete logic the original design had.

Simple, low-cost momentary button enables/disables the device in place of the expensive SPST push (not toggle) switch of the original and also controls both status LEDs.

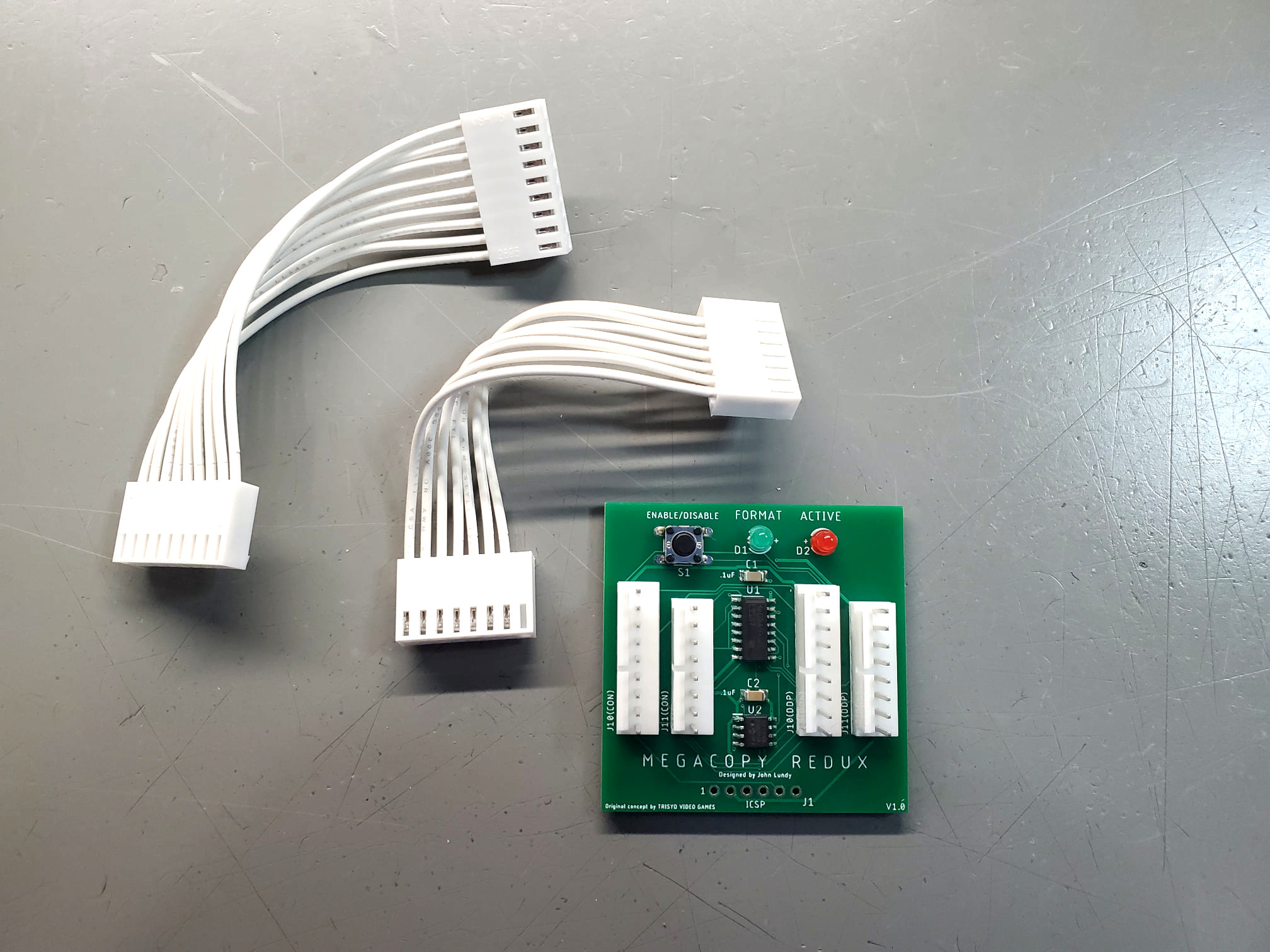

Includes the MEGACOPY REDUX interface.
