Hardware
| Catalogue ID | HW-0101 |
|---|---|
| Manufacturer | Lundy Electronics |
| Person or team | John Lundy |
| Type | Modem and Network (Network) |
| Connects via | Internal Slot #2 |
| Platform | ADAM |
| Status | Released |
| Manufacturer site | https://lundyelectronics.com |
| Source | Collectors DB v1.00 Master |

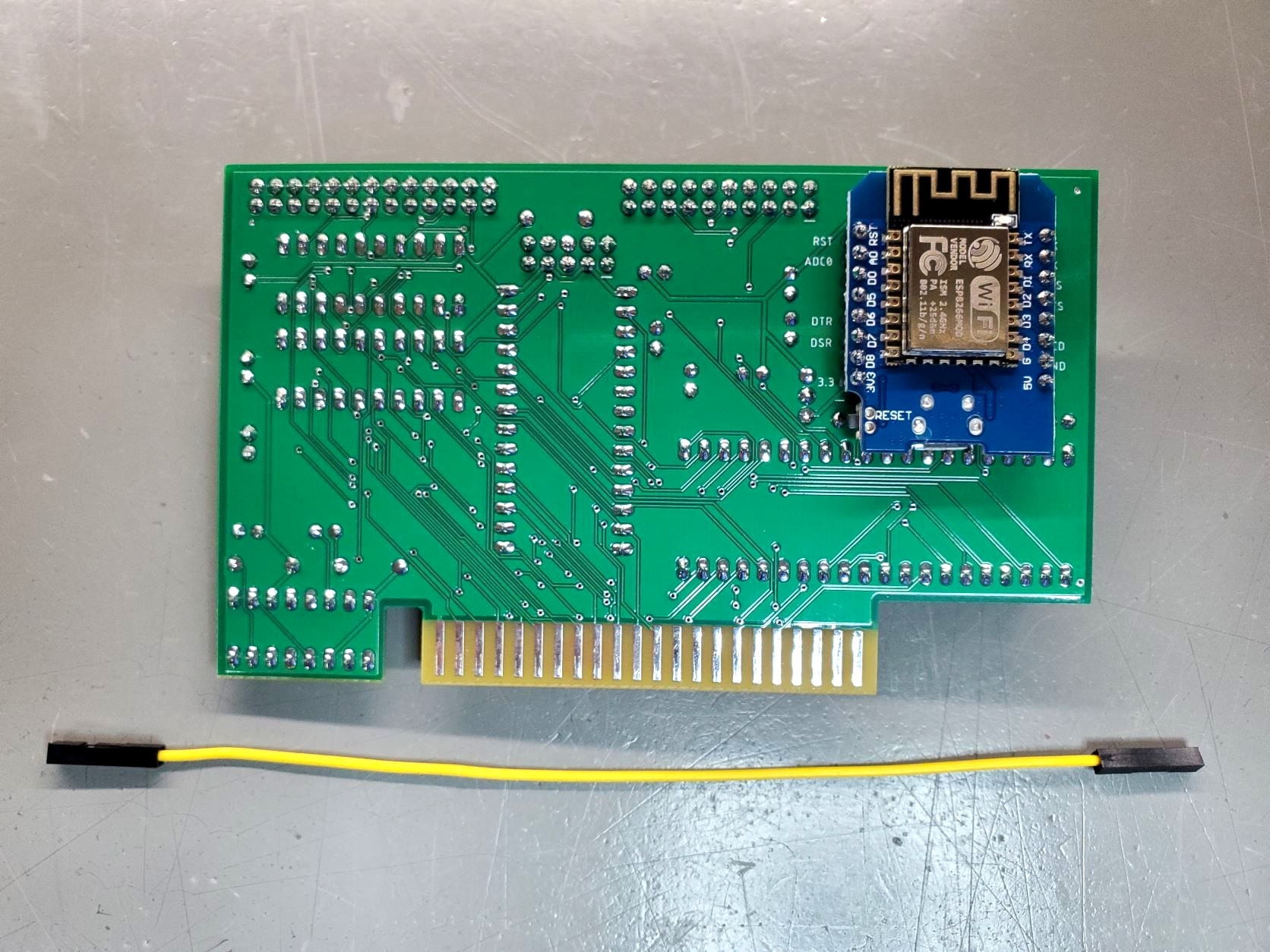

Coleco ADAM Expansion Board – The Coleco ADAM Multipurpose Interface Board. Although everything is documented on how to make your own on Eric Pearson’s MIB238 GitHub project page at https://github.com/epearsoe/MIB238, Lundy Electronics offers these cards for those who don’t have the skills to build their own. They are fairly expensive to build because of build and test times, sourcing an obsolete part, and a few other specialty parts.
The MIB238-WiFi card cables are sold separately so you can configure it the way you want to keep the cost down by needing unnecessary cables. Unlike the older version, if you just need WiFi modem, boot PROM, and expander signal, then there is no need for an external cable coming out of the console. This version saves on the cost of a serial ribbon cable, external modem/WiFi modem, and external power supply. Limit two per customer.
Features
Replaces the serial port connector with an integrated WiFi modem for up to 19.2k baud.
Terminal port for external 80 column support.
Parallel port for printer.
Boot PROM socket.
Memory expander signal for memory expander cards over 64K.
