Multi-Purpose Interface Board 3 (M.I.B. 3)

MICRO INNOVATIONS · Serial Parallel Interface
Platform, category and status for this entry were derived automatically from the source list and have not yet been checked by hand.
Multi-Purpose Interface Board 3 (M.I.B. 3)

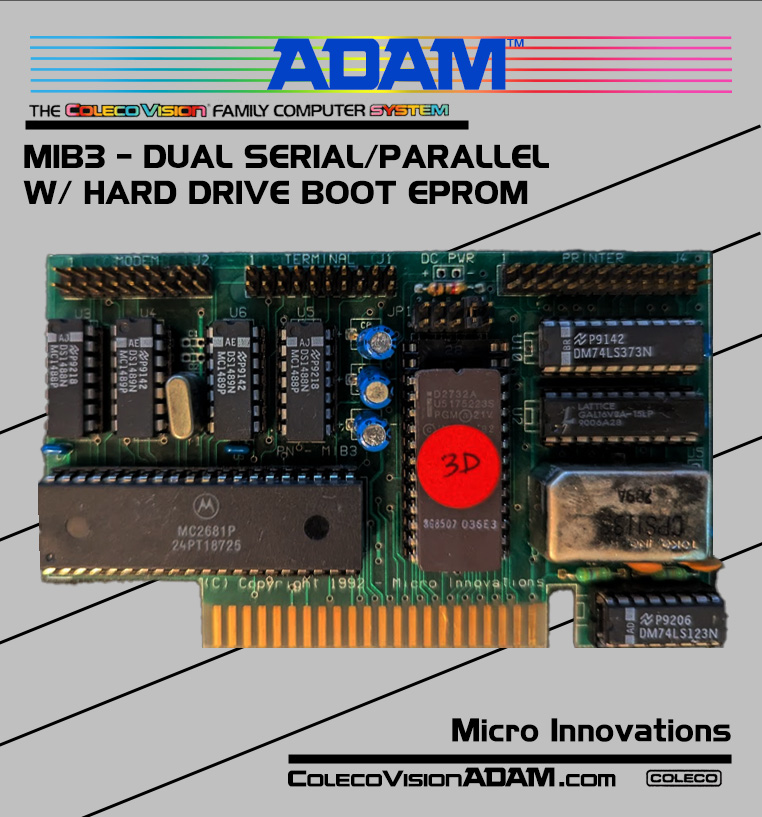

MIB3.jpg MIB3 w HD Boot.jpg
2 photographs · hover to enlarge
Catalogue IDHW-0370
ManufacturerMICRO INNOVATIONS
Person or teamMark Gordon
TypeSerial Parallel Interface (Interface)
Connects viaInt. Exp. Slot #2 - 2 Serial/1 Parallel/Memory Addr./Boot Prom Socket
PlatformADAM
StatusReleased
SourceCollectors DB v1.00 Master

Notes

The Micro Innovations Multi-Interface Board version 3 — the single most influential ADAM interface card. On one board it provides a boot-PROM socket, two RS-232 serial ports, a Centronics parallel printer port, and the memory-expander "addressor" signal that RAM cards over 64K depend on.

Original MIB3 boards are now extremely difficult to find, which is precisely why modern recreations such as the MIB238 (including the Lundy and Brewing Academy versions elsewhere on this page) were created to take its place. Installs in expansion slot #2.
