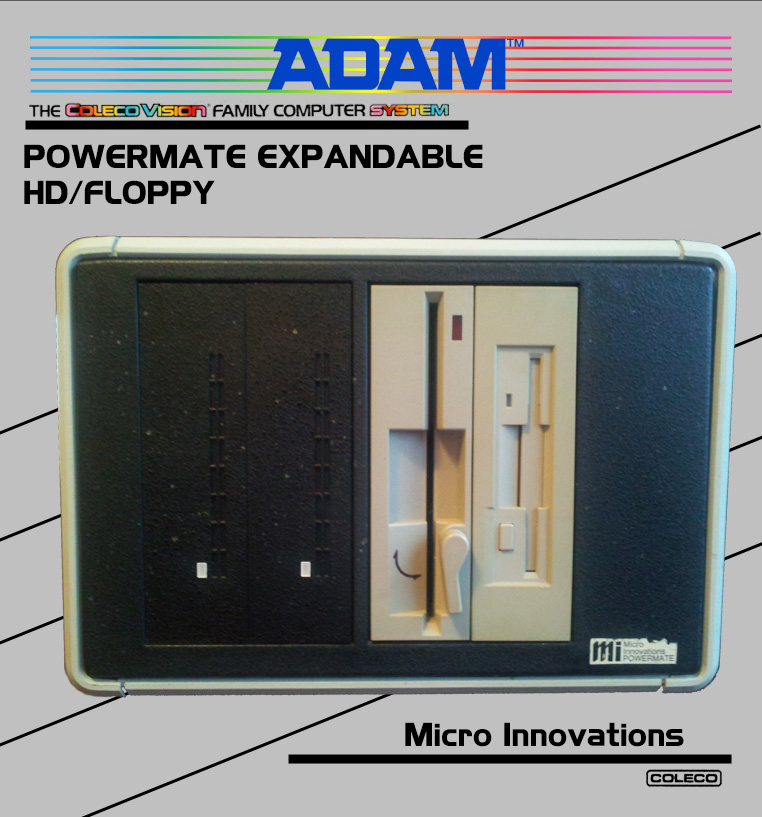

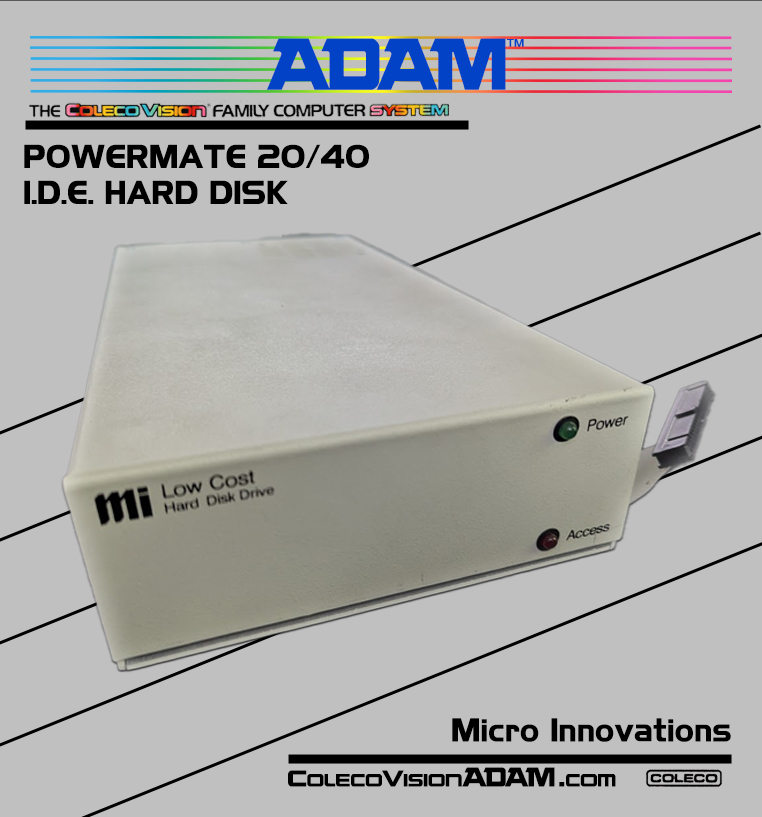

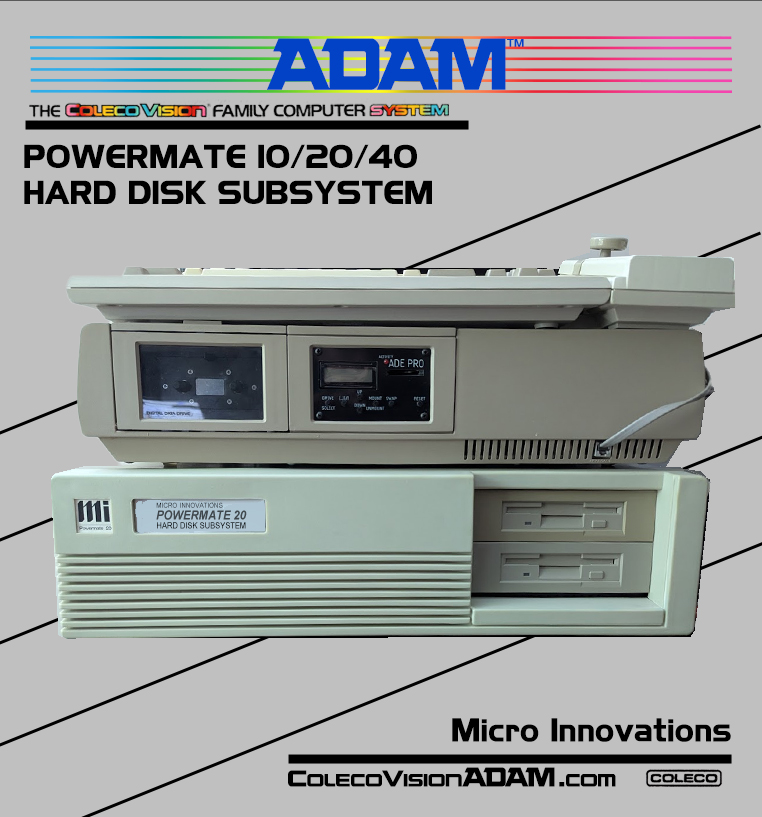

The basic Powermate product consists of the Powermate interface board, a 2 or 4 drive external disk drive enclosure, all necessary interface cables, and all software needed to operate the Powermate with the ADAM.

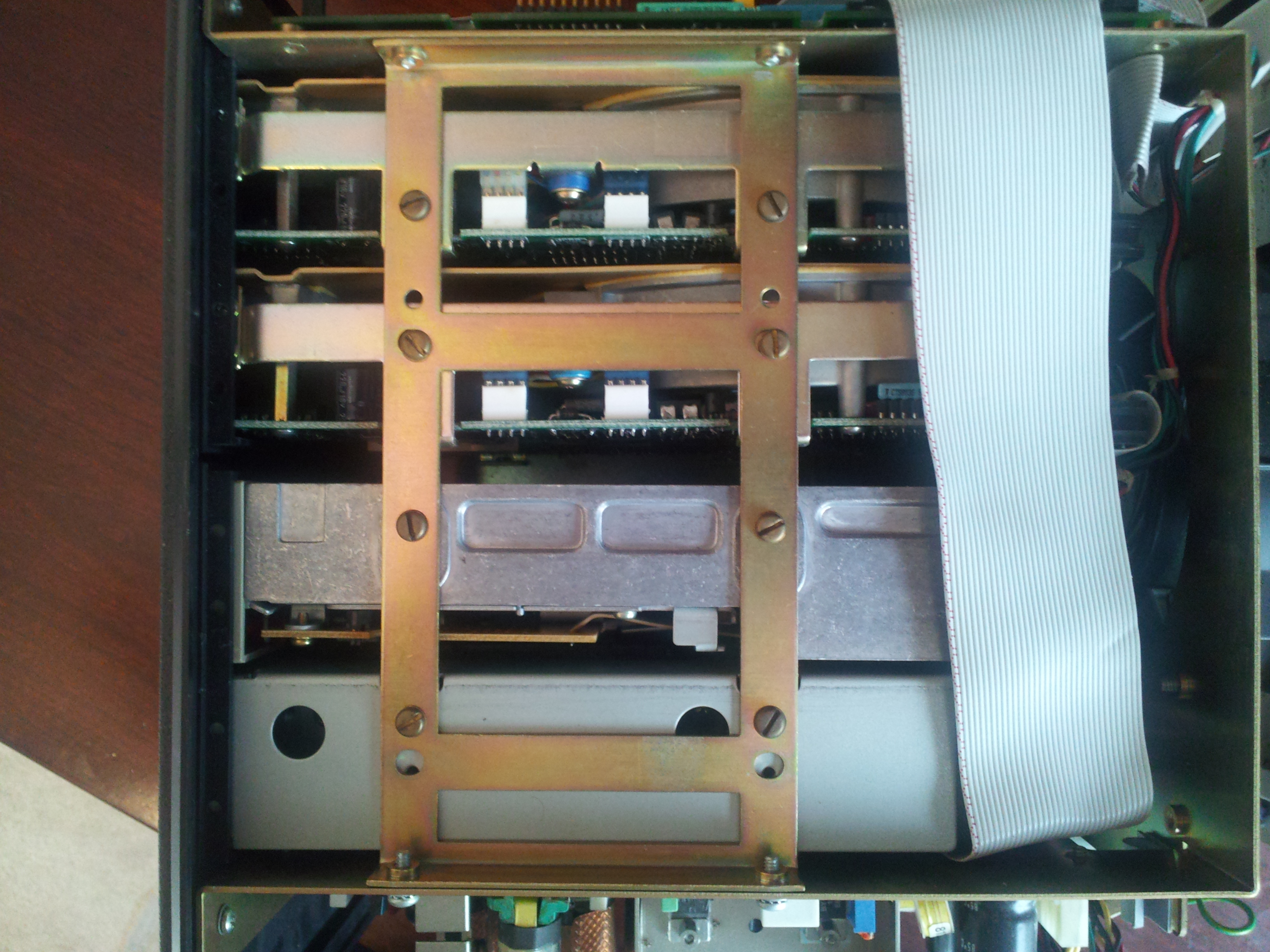

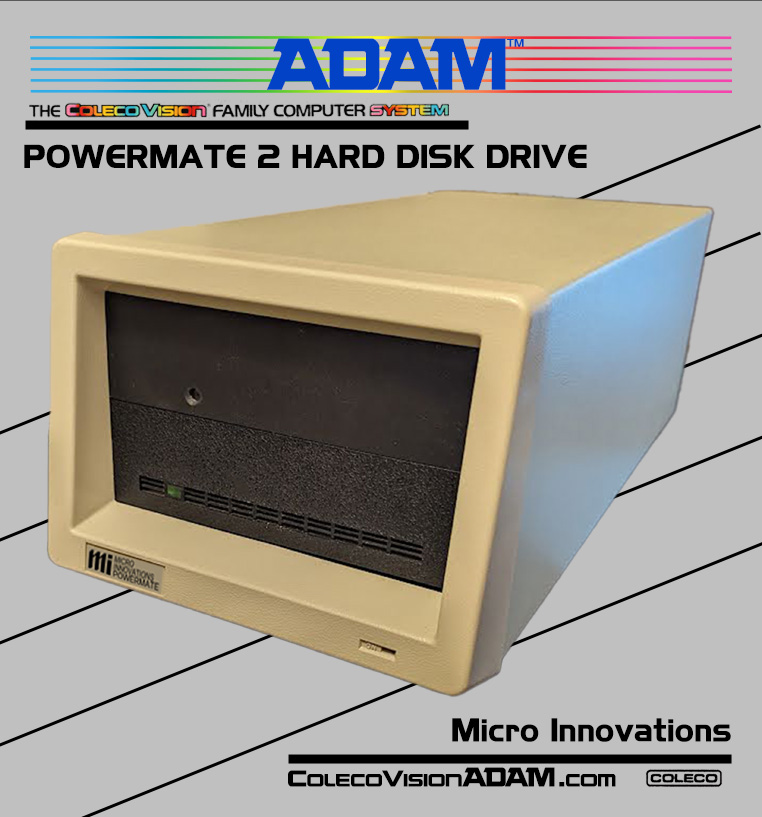

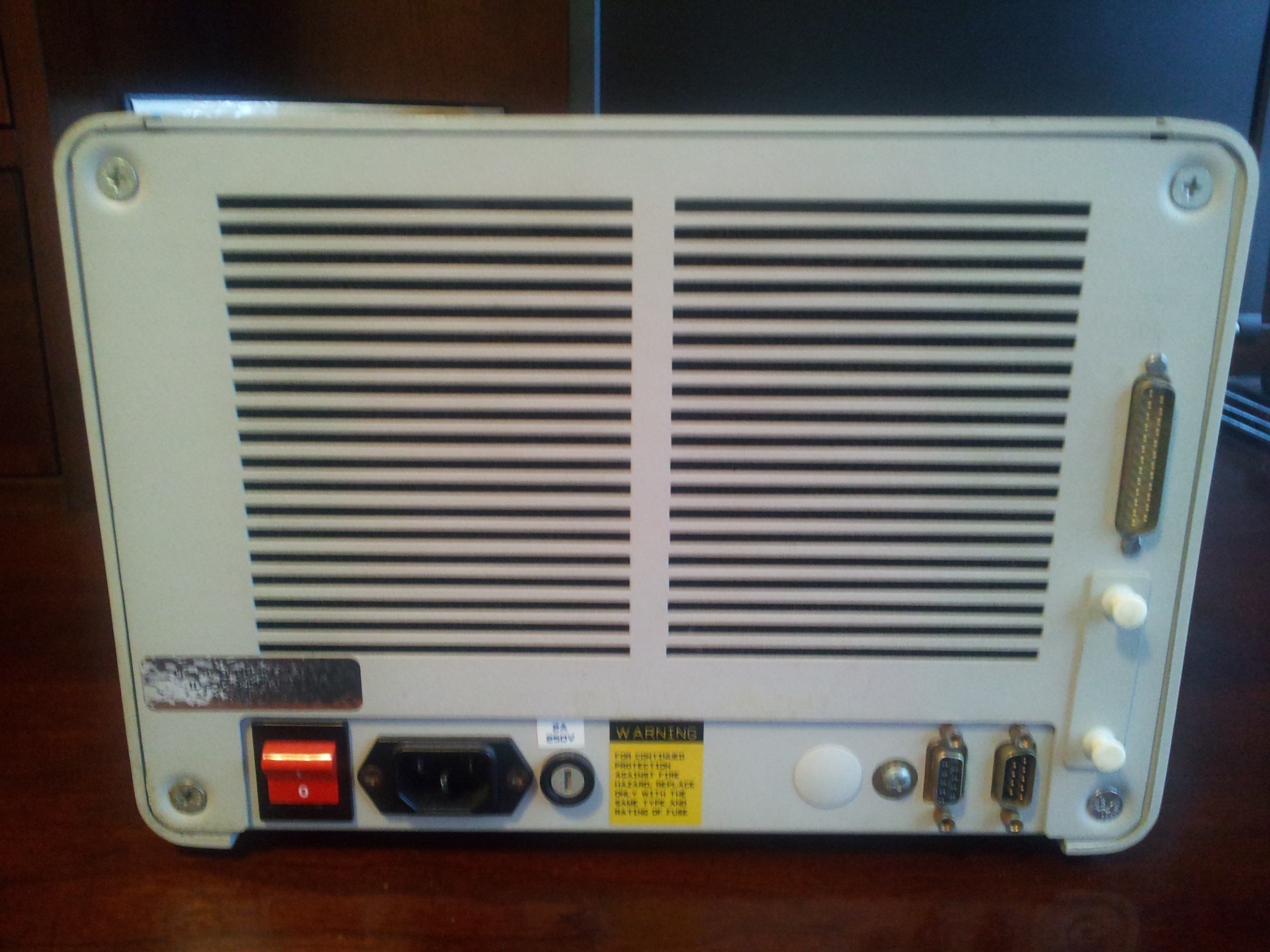

The Powermate 2 external enclosure contains the disk subsystem power supply, the disk controller board, a hard disk drive, and space for mounting a second disk drive.

Powermate Floppy/Hard Disk Subsystems Standalone add on subsystems that provide one or two 10, 20 or 40 MB hard disk drives, one or two 360K or 720K floppy disk drives, two RS 232 serial ports, a parallel printer port, and a memory expander board port for the Coleco Adam computer. Base Units: Price Powermate 10 $399.00 Powermate 20 $499.00 Powermate 40 $599.00 Options: 360K Floppy disk drive $100.00 720K Floppy disk drive $105.00 Second 10 MB Drive $150.00 Second 20 MB Drive $225.00 Second 40 MB Drive $300.00 Peripheral cable (serial or parallel) $14.95.

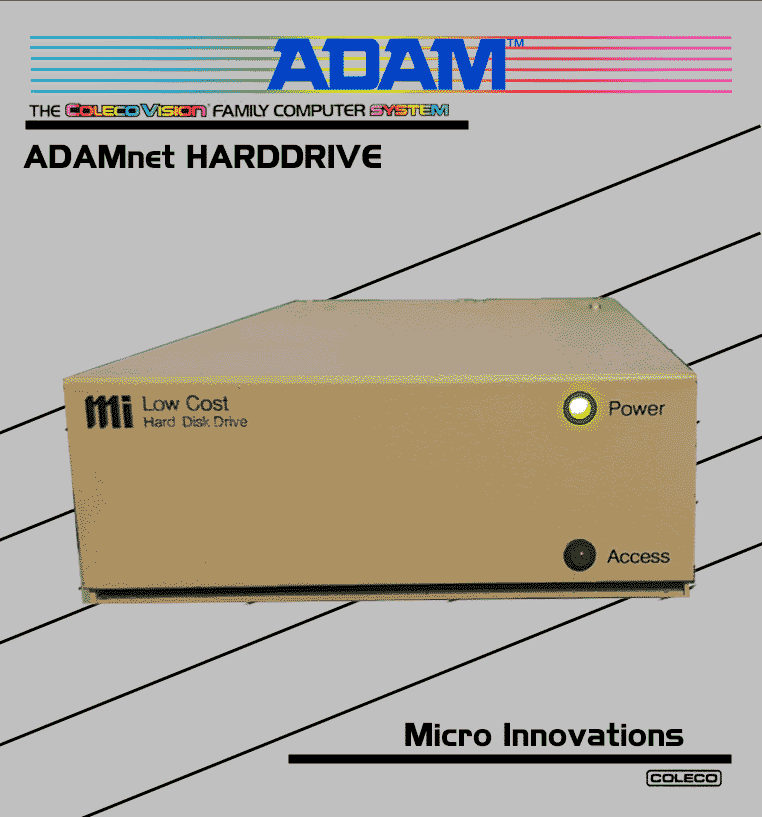

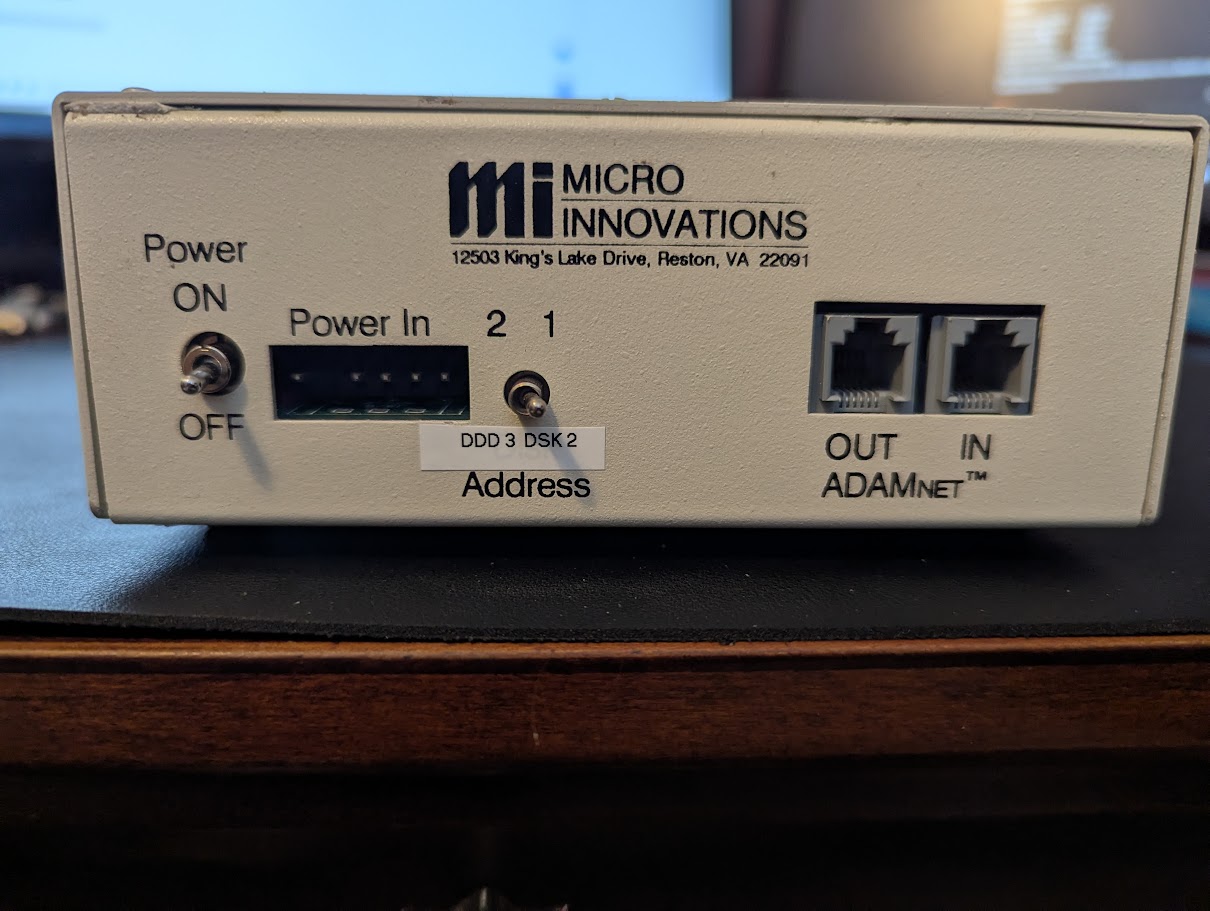

Back in the day One drive went to Tony Morehen to make TDOS work on it. The second drive with Bob Blair made its way at ADAMcon 10 into the trusted hands of the Slopsemas of A.N.N./MicroFox. A SECOND FUNCTIONING ADAMNET HARDDRIVE NOW EXISTS!!!

External hard disk systems, kits and components for the ADAM computer. Complete systems kits start with Micro-Innovations 10 Mbyte** Floppy/Hard Drives and include center slot interface card (with boot PROM, printer port, and memory expander interface**), boot interface cable and software. Kits are intended for mounting the hard drive inside the ADAM computer and contain hard interface card, hard disk drive, PADI interface cable and software. When sold separately, the left slot interface card comes with 1 foot interface cable and software. Hard disk drives are available separately. Supplied software includes OS-7, HDB, and FDC's hard disk operating system and utilities. Public domain software is provided on external systems only...

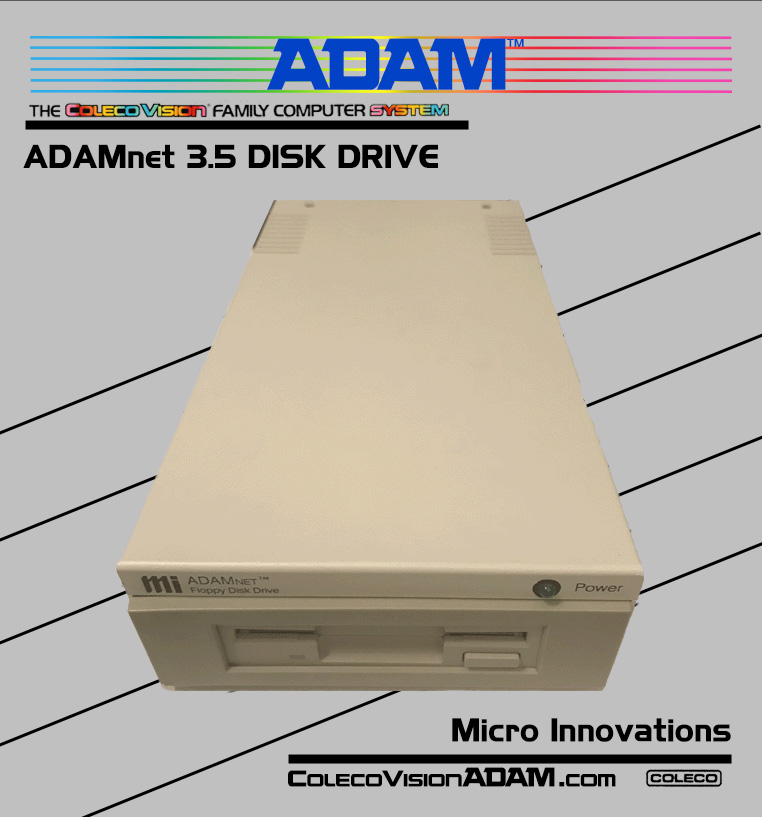

Stand-alone floppy disk drives for the Adam Computer. Plug in to ADAMnet connector. Comes with external power supply and ADAMnet cable. Available with several different PROMs. Standard PROMs are: 320K Double-Sided format for the 5.25" drive and 720K E&T Separate format for the 3.5" drive. Other formats available are: 160K Single-Sided and 360K IBM format for the 5.25" disk drives and 720K Orphanware format for the 3.5" disk drives.

Stand-alone floppy disk drives for the Adam Computer. Plug in to ADAMnet connector. Comes with external power supply and ADAMnet cable. Available with several different PROMs. Standard PROMs are: 320K Double-Sided format for the 5.25" drive and 720K E&T Separate format for the 3.5" drive. Other formats available are: 160K Single-Sided and 360K IBM format for the 5.25" disk drives and 720K Orphanware format for the 3.5" disk drives.

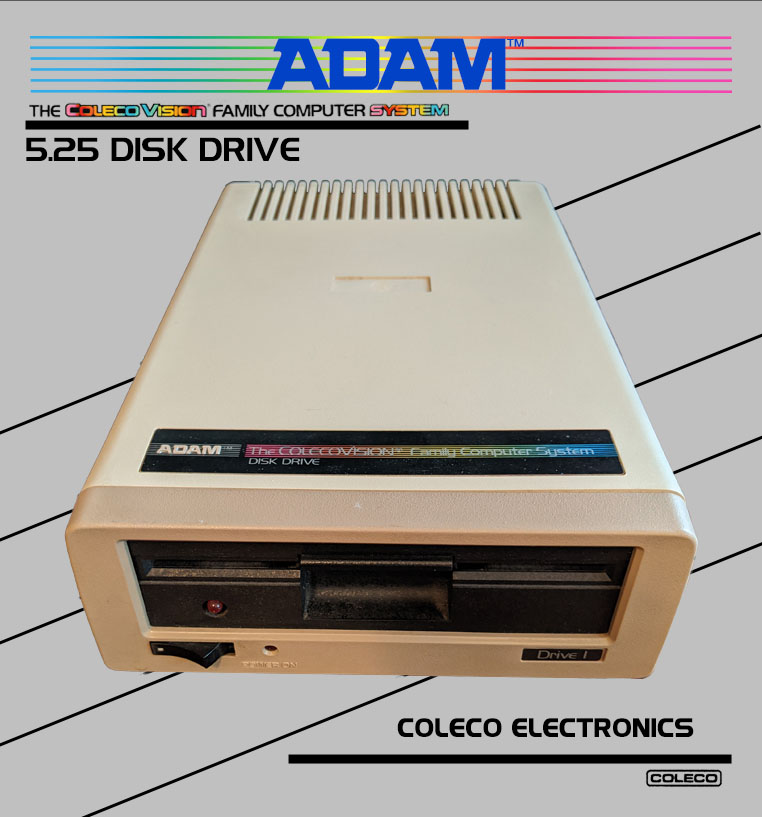

The 5 1/4" Disk Drive is ideal for those users who prefer the disk storage medium, and ADAM users can store up to 160K bytes on easy-to-use 5 1/4" single-sided, double density-flexible disks.

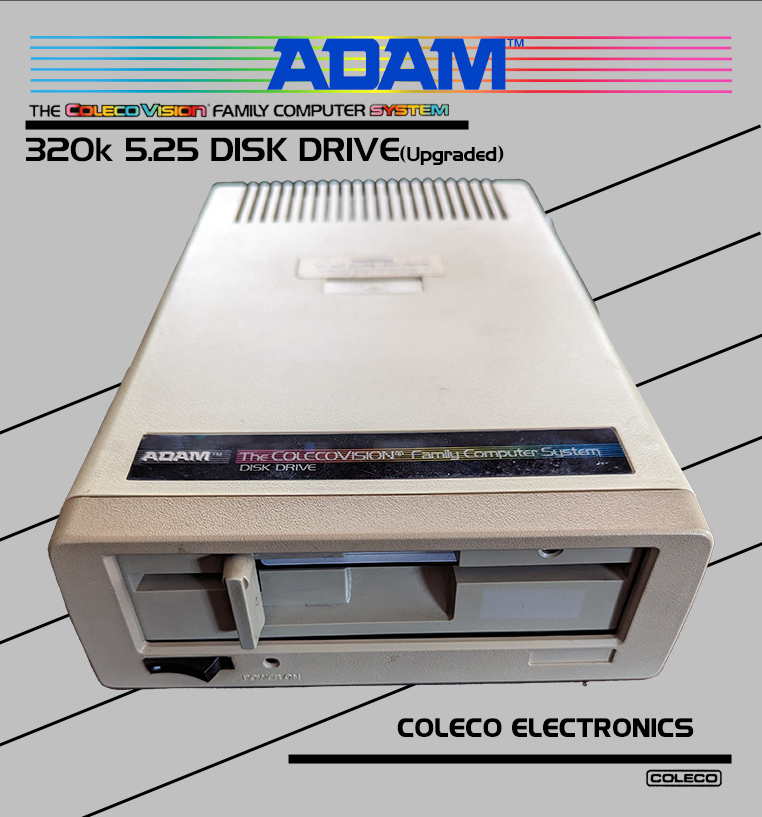

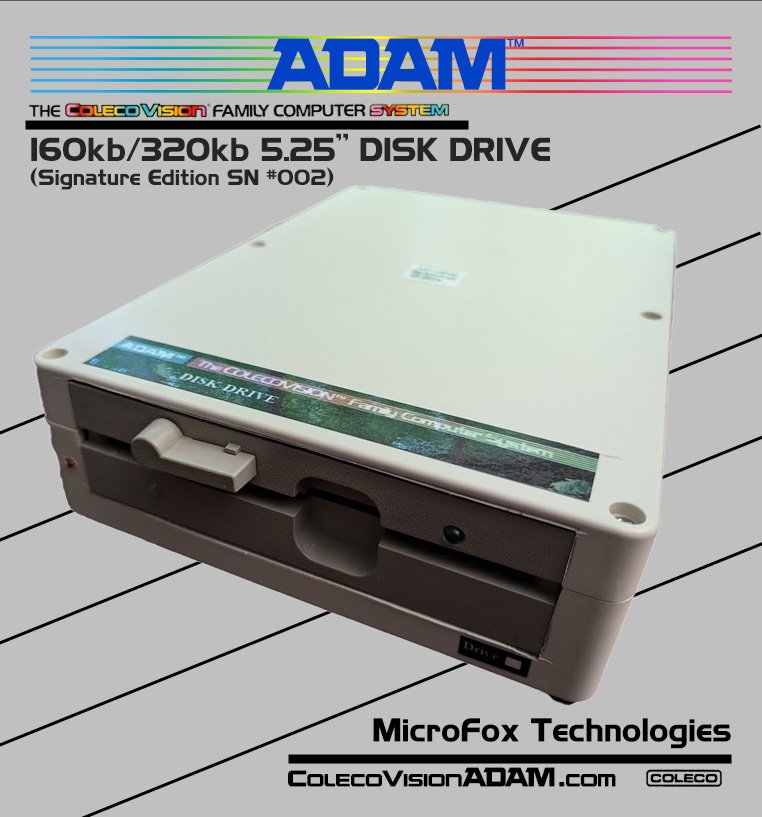

The 5 1/4" Disk Drive upgraded to store up to 320K bytes on easy-to-use 5 1/4" disks.

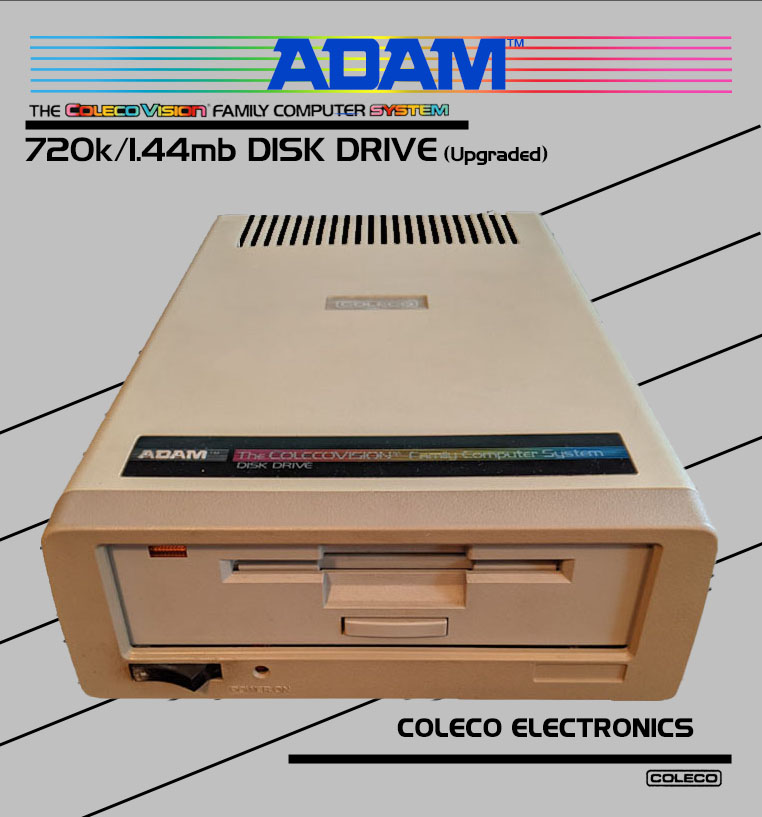

Upgraded 3.5" disk drive with enhanced capacity for modern storage needs.

Housed in an original ADAM Drive and utilizing all original components this GOTEK replaces the standard 5/14 floppy and allows for USB file storage and easy access through the dial and arrow buttons displaying the file names on the OLED Display.

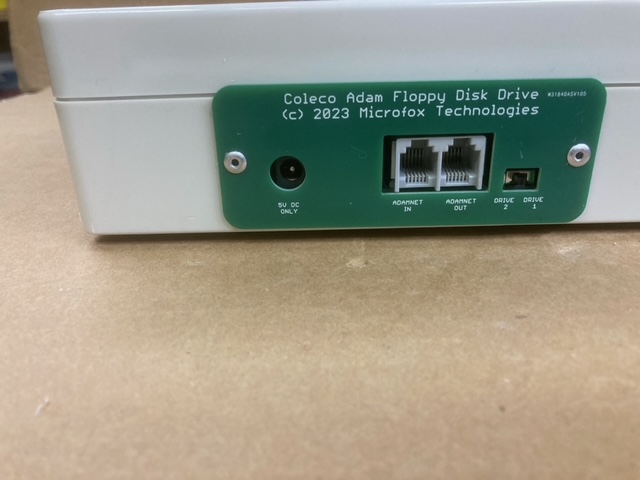

This ADAM Disk Drive comes complete with a tested 5 1/4" disk drive; NEWLY designed controller board; power supply; and an ADAMnet cable to plug into the ADAM.

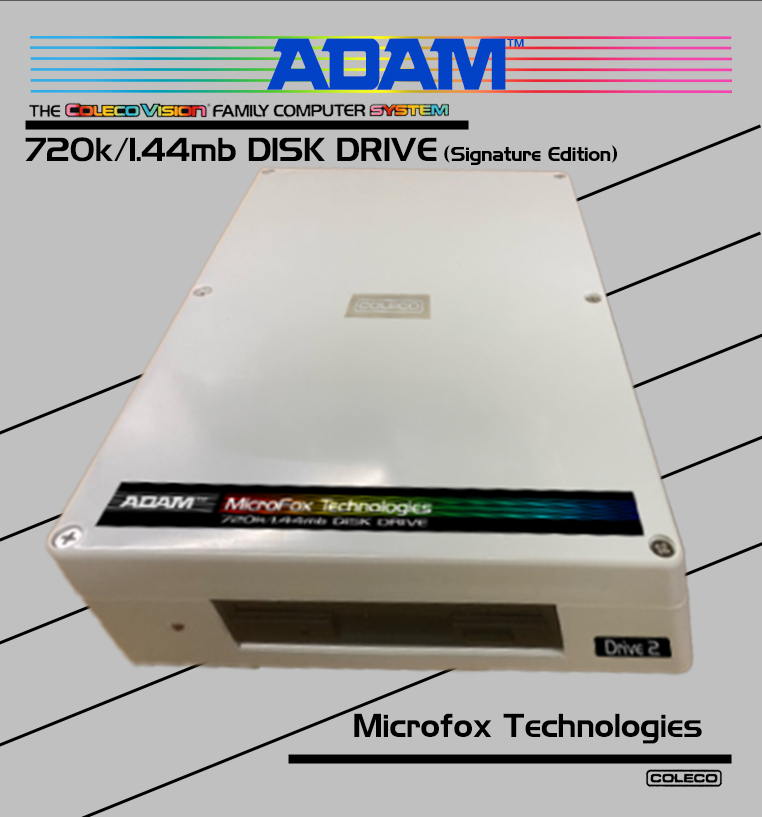

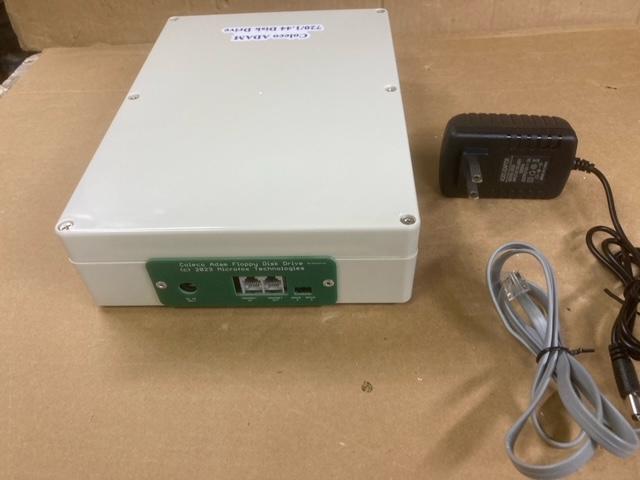

This ADAM Disk Drive comes complete with a tested 1.44mb drive; NEWLY designed controller board; power supply; and an ADAMnet cable.

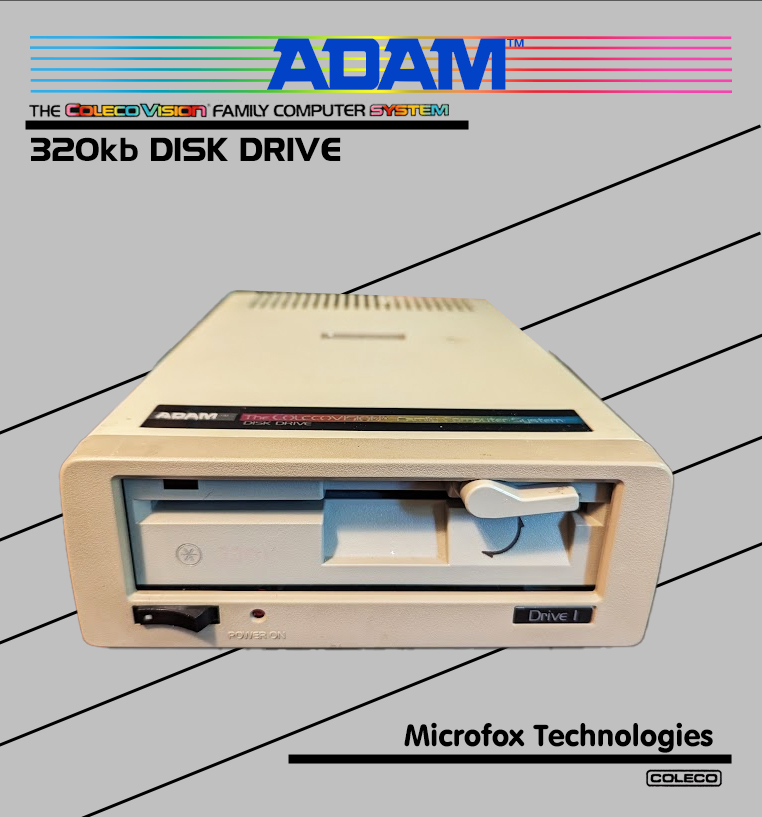

This ADAM Disk Drive comes complete with a tested 5 1/4" 320K disk drive; Housed in an original Coleco Drive and utilizing all original electronics and power supply.

Connects to the ADAM through any IDE card and ribbon cable. Drive has 10 EOS 1 mb partitions for programs and 4 TDOS (cp/m compatible) partitions.

Connects to the ADAM through any IDE card and ribbon cable. Drive has 10 EOS 1 mb partitions for programs and 4 TDOS (cp/m compatible) partitions.

Connects to the ADAM through any IDE card and ribbon cable. Drive has 10 EOS 1 mb partitions for programs and 4 TDOS (cp/m compatible) partitions.

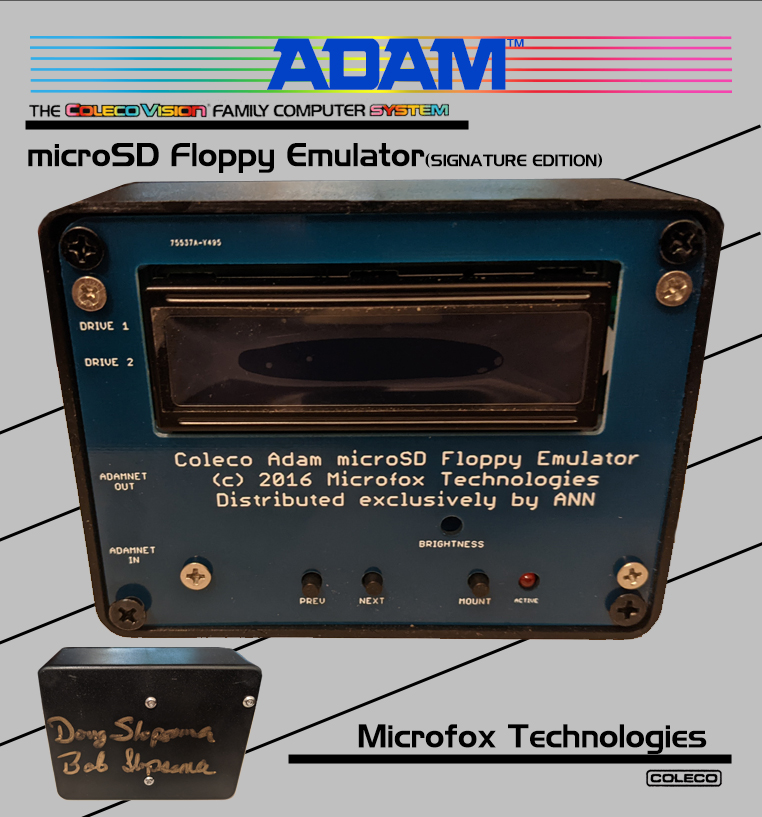

The MicroFox Virtual ADAM Disk Drive (VDD), released in 2016 and distributed exclusively by A.N.N., is a native ADAMnet storage device that emulates up to 100 floppy disk images stored on a removable microSD card. Unlike the IDE card solution, the VDD connects directly to the ADAM's ADAMnet side port or daisy-chains with existing drives — no expansion slot, boot cart, or driver software required. EOS sees it as a standard disk drive (Drive 1 or Drive 2, selectable). Disk images are stored in ADAMemulator (.dsk) format, making the internet a ready source of software. Images can be added or removed from the microSD card using any PC with a card reader.

The VDD ships complete with the drive unit, microSD card pre-loaded with ADAM software, external power supply, and ADAMnet cable. It has been tested with 2GB SDHC cards with theoretical support for up to 32GB SDHC (FAT32). The production unit supports disk image sizes from 160K to 1.44MB.

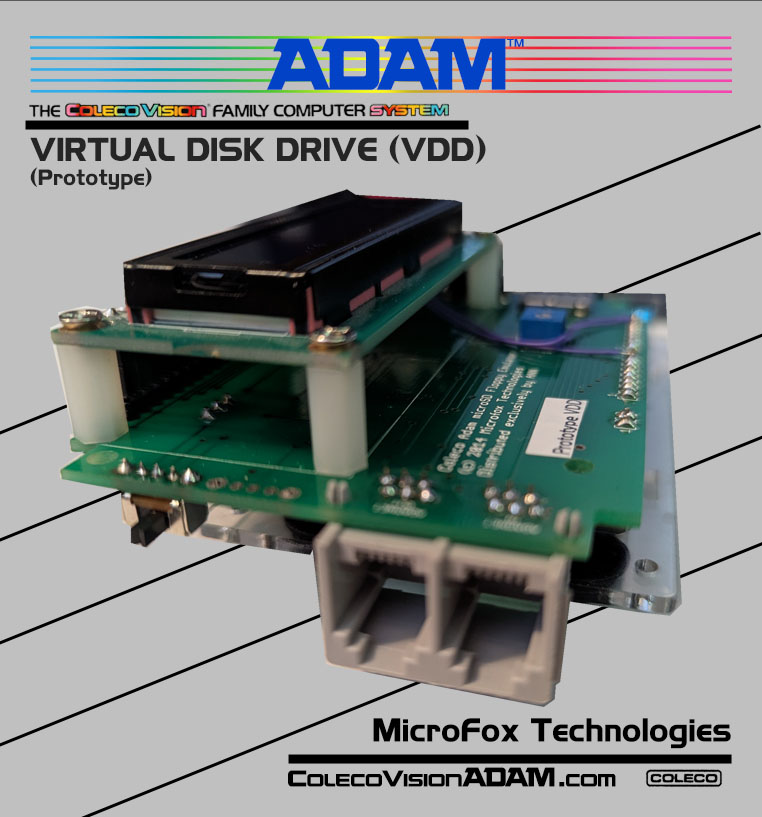

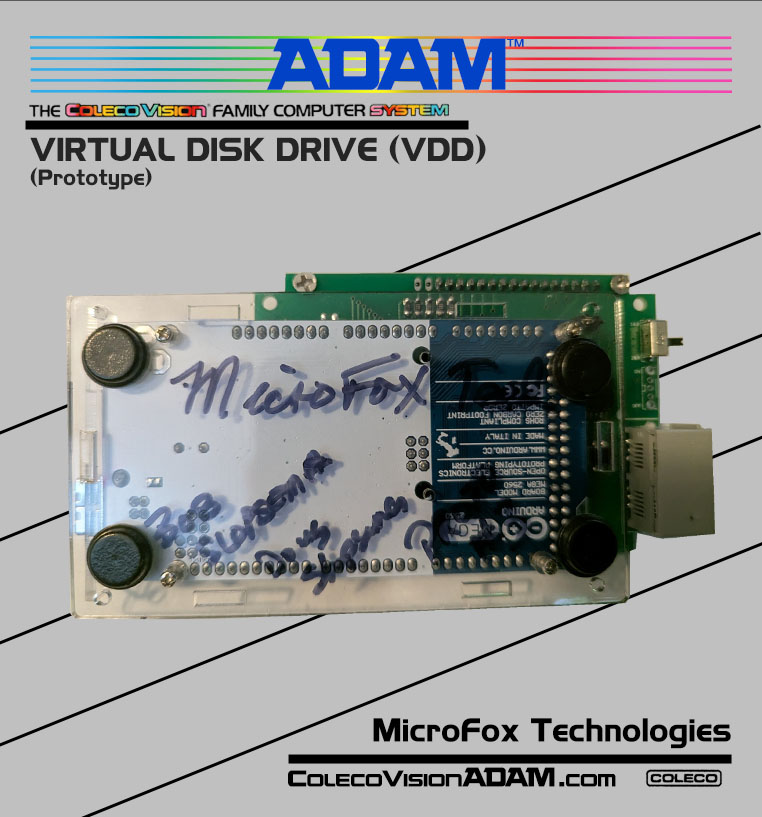

The pre-production prototype of the MicroFox Virtual ADAM Disk Drive, dated © 2014 on the PCB silkscreen — two years before the 2016 commercial release. Signed and attributed by designers Bob and Doug Slopsema of MicroFox Technologies on the acrylic enclosure. This is a three-board sandwich assembly in a clear acrylic prototype case, revealing the full development architecture before it was consolidated into the production unit.

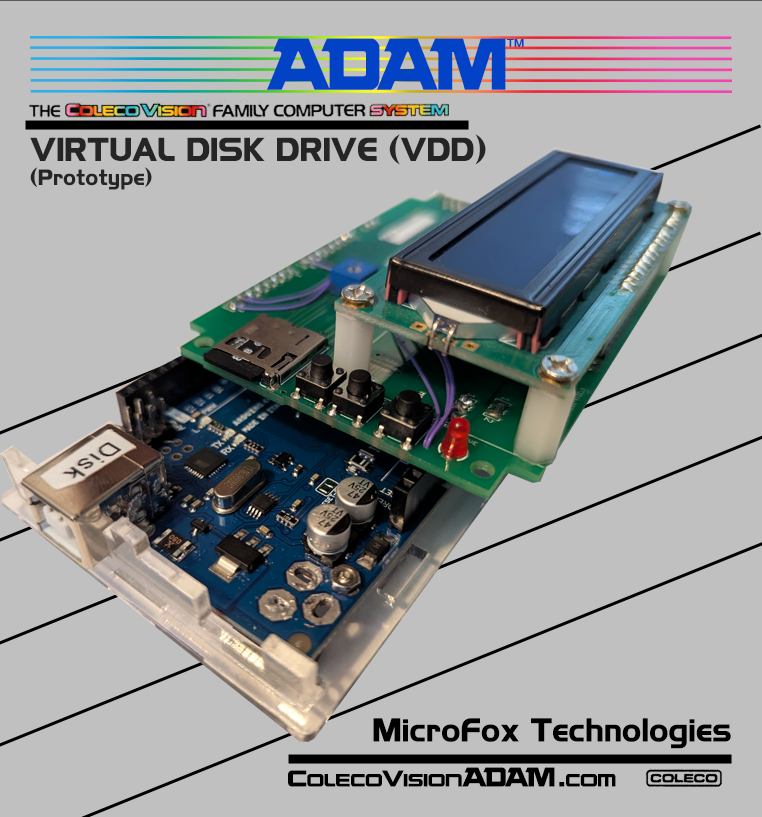

The prototype is built around an Arduino Mega 2560 (ATmega2560 @ 16MHz) as the ADAMnet protocol engine, paired with a custom MicroFox-designed green PCB that provides the ADAMnet bus interface, a 2×16 HD44780 character LCD (blue backlight), a microSD card slot, three navigation buttons (PREV / SELECT / NEXT) for disk image selection, and dedicated ADAMNET IN / ADAMNET OUT RJ connectors for daisy-chaining. A third sub-board handles DC power regulation. Hand-wired purple jumpers interconnect the custom board to the Arduino, characteristic of first-article prototype development. A bodge wire on the PCB indicates at least one routing correction was made post-fabrication.

The ATmega2560's hardware UART handles the ADAMnet slave protocol at 62,500 baud via an open-collector buffer stage on the custom board. SPI on the same processor drives the microSD card. This architecture — AVR microcontroller implementing full ADAMnet timing in firmware — was validated in this prototype and carried forward to the production design, and later influenced subsequent ADAMnet emulator projects in the ADAM community.

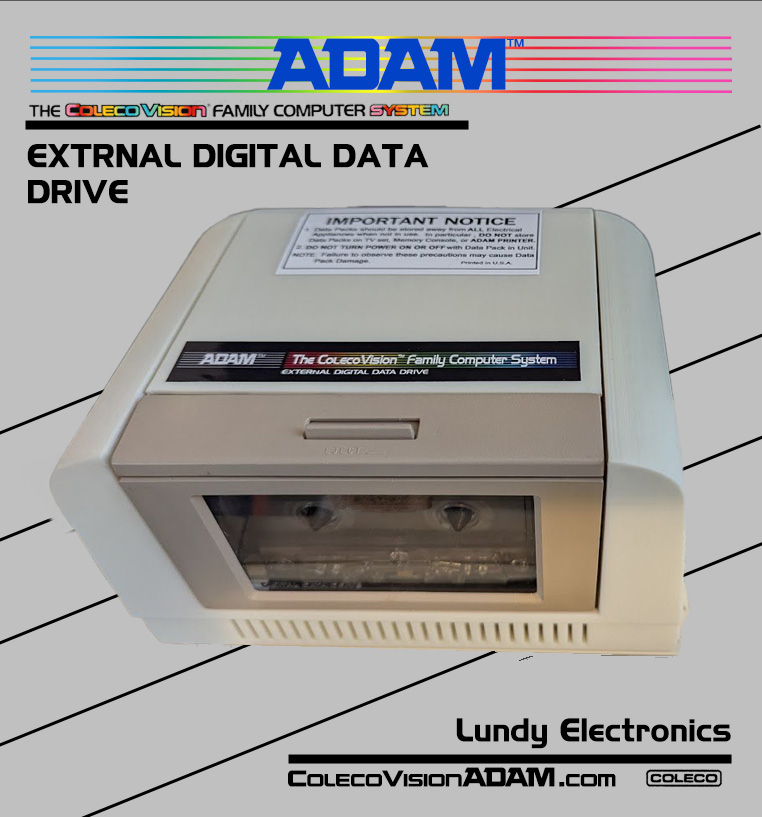

External digital data drive solution from Lundy Electronics.

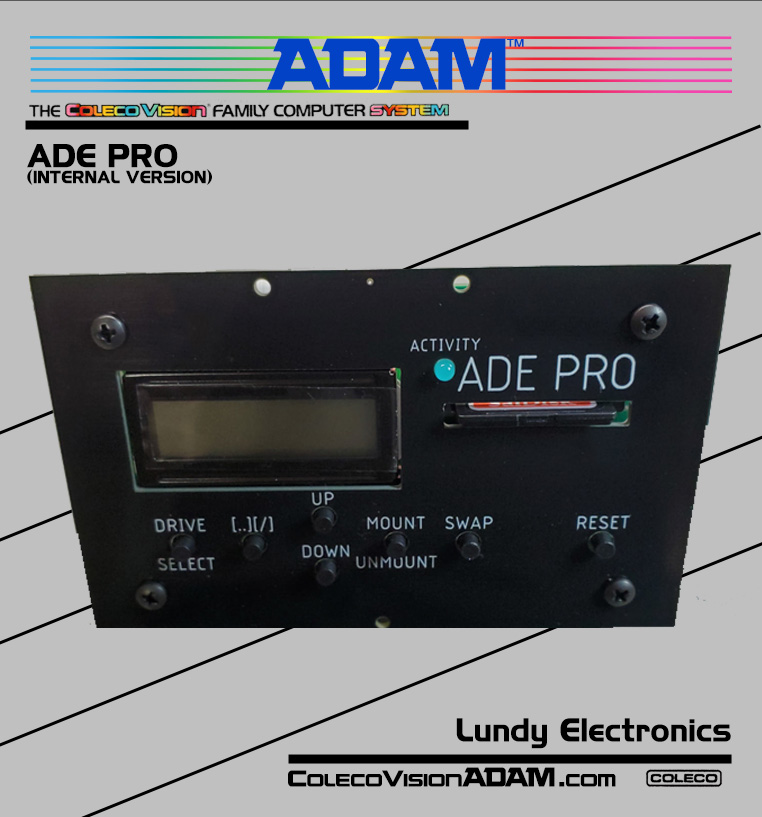

The Internal ADE Pro is a combination of features from the standard ADE, original ADE Pro, and ADE Lite all rolled into one unit. The board set is designed to install into a factory ADAM dummy drive.

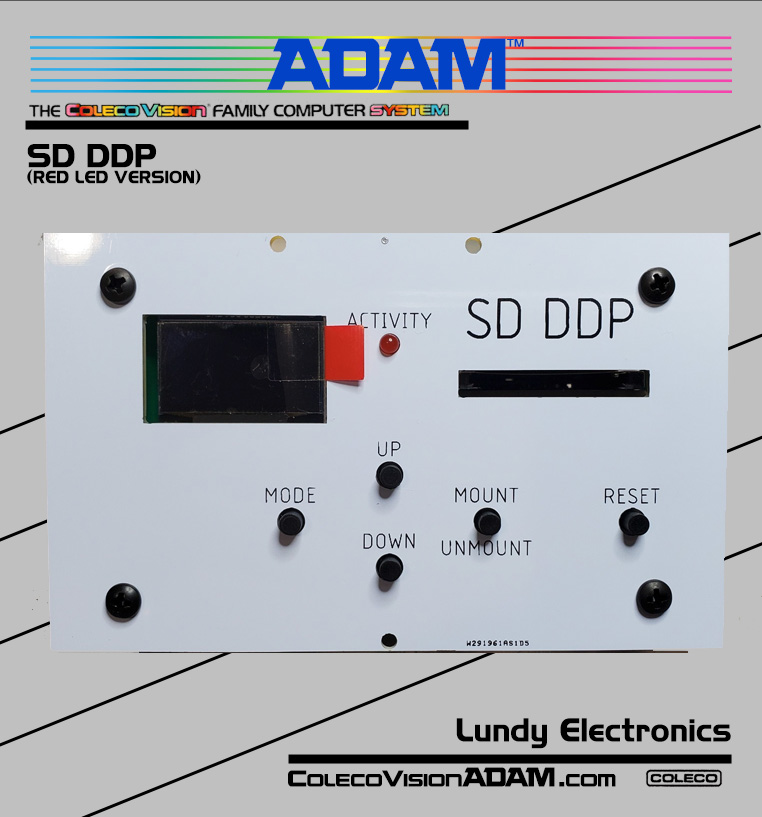

Based on Eric Pearson's SD DDP project. Creates a unit with no exposed electronics and the ability to insert a full-sized SD card from the front panel.

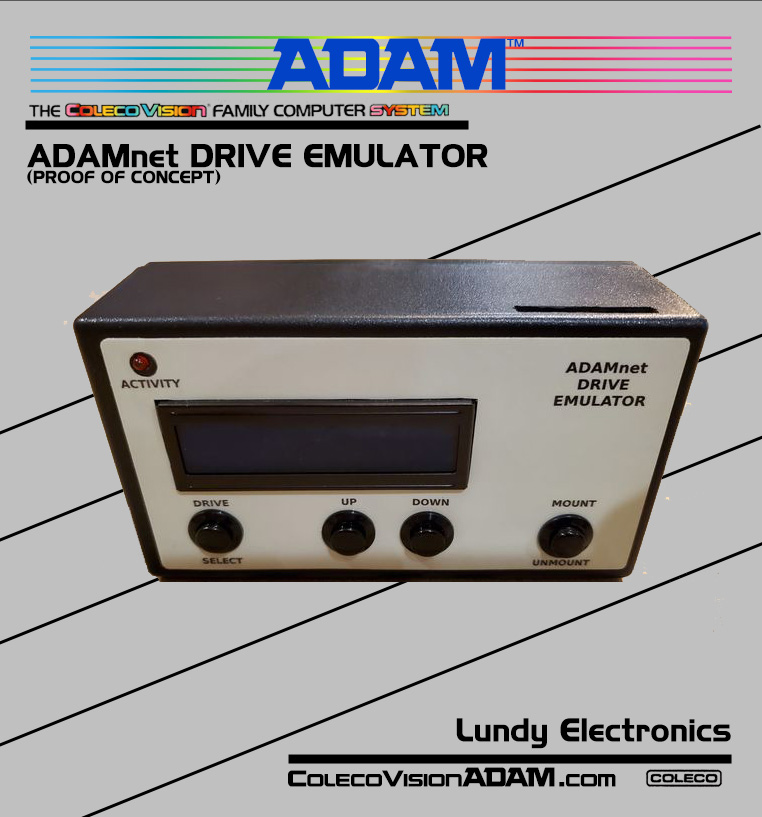

"Original ADE proof of concept that eventually evolved into the design of the ADE Pro. I remember I didn't have the exact resistor values at the time for the analog buttons."

Earlier version of the ADE drive emulator, now retired in favor of the Pro Plus model.

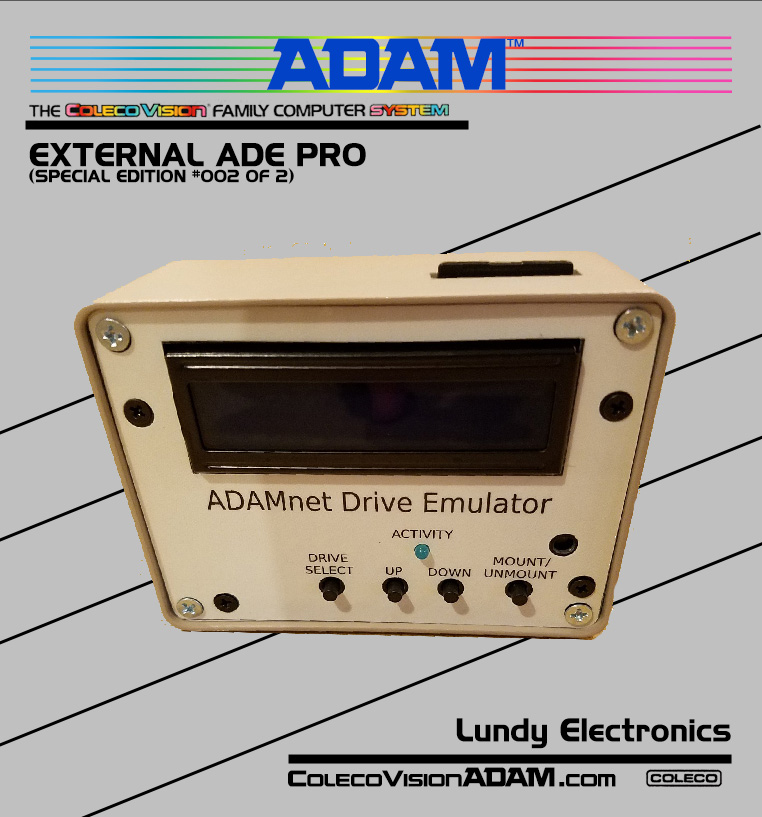

External ADE Pro Special Edition made by John Lundy. This is #002 of 2 that were made with matching ADAM colors. Comes with power adapter, ADAMnet cable, instructions and a 16Gb SD Card.

The ADE Pro one off!!!

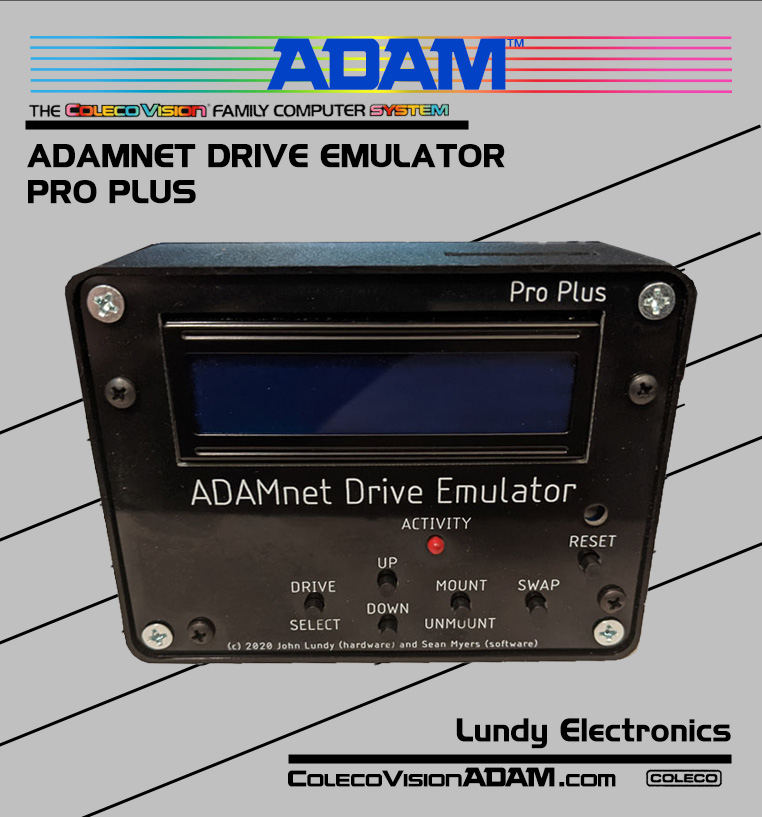

The ADE Pro Plus is a combination of features from the ADE, ADE Pro, and ADE Lite all rolled into one enclosed unit. Front buttons include: DRIVE SELECT, UP, DOWN, UN/MOUNT, SWAP, and RESET.

The ADEL is designed for the ADAM user who doesn't require the full features of the ADE or ADE Pro with LCD and button interface. It is a great option for gaming and just about anything else with few limitations.

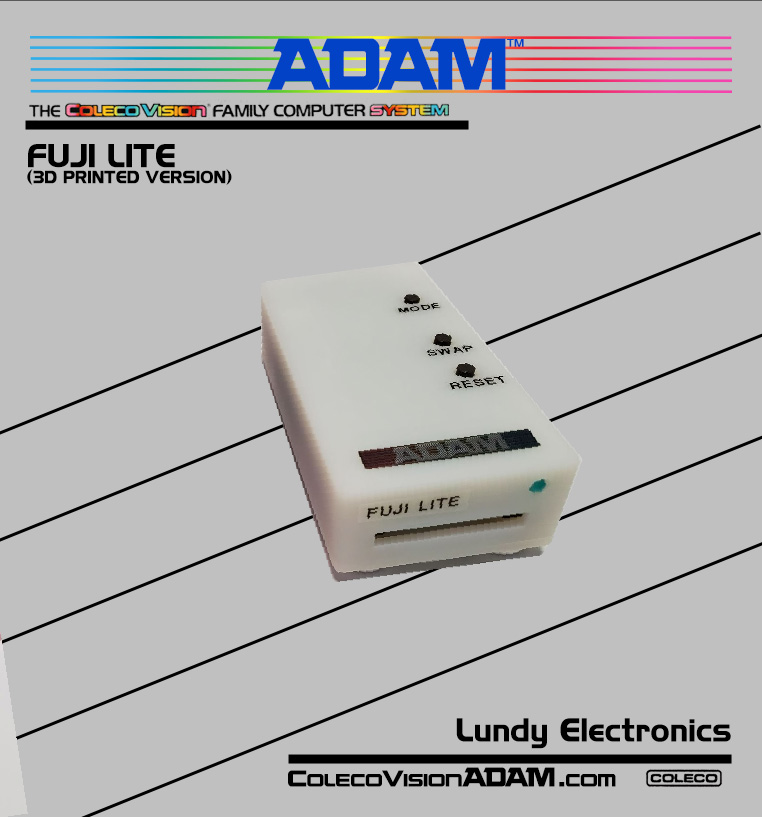

Modern network-capable drive emulator with WiFi connectivity for the ADAM computer system.

An internal ADE Lite with separate activity LEDs for each drive. I added a DISABLE button that disables the boot disk and lights a red LED indicator while it's disabled.

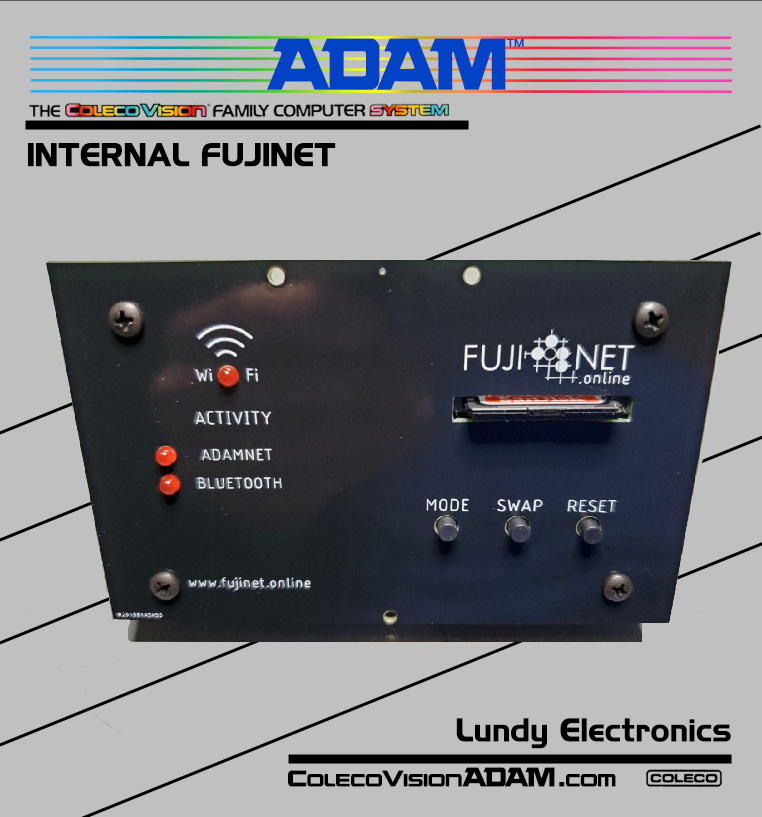

This is a hardware variant based off the official ADAM FujiNet design. It has been modified to mount internally into an ADAM Dummy Data Drive assembly and uses a full-sized SD card slot.
