PROTOTYPE ADAM COMPONENTS

Decorative grid divider

Some early mock-ups and prototype never released items for the ColecoVision and ADAM

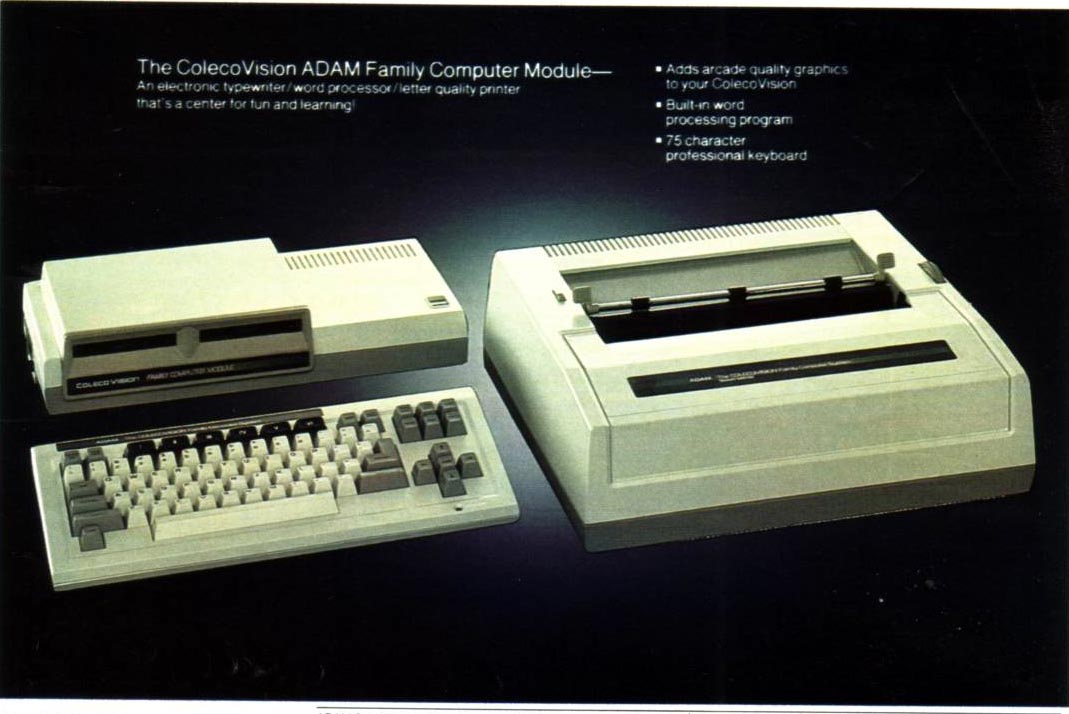

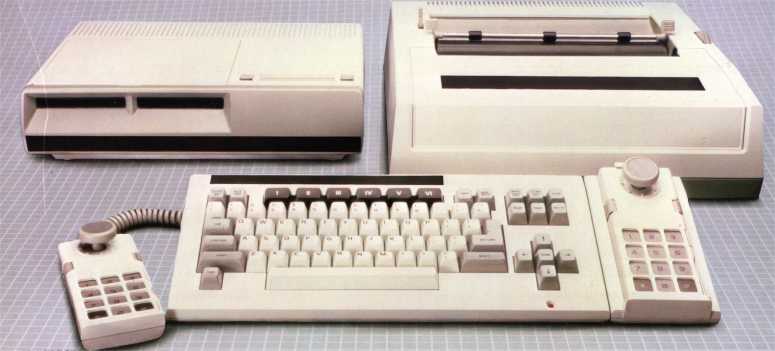

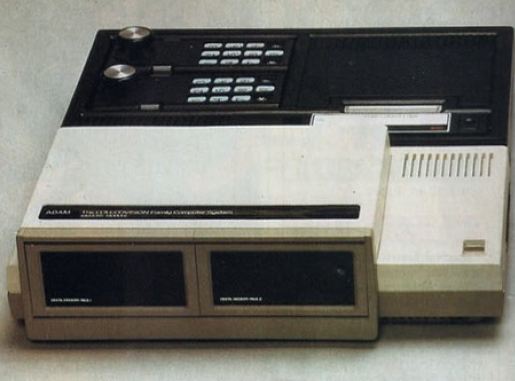

PROTOTYPE ADAM COMPUTERS

ADAM Drive Prototype - Unreleased storage device showing internal mechanism
ADAM logo color bars divider

PROTOTYPE ACCESSORIES

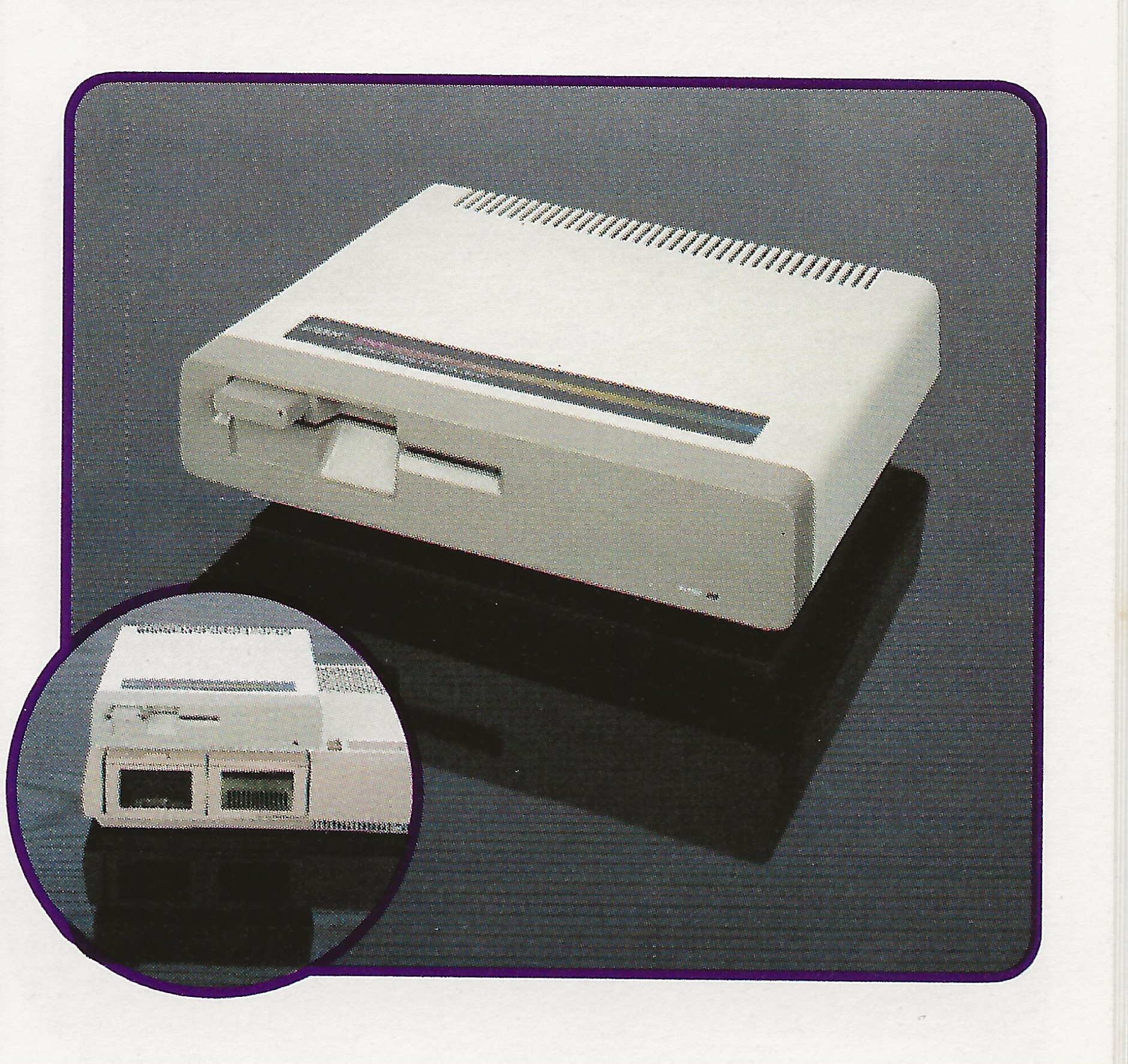

5.25 inch floppy drive prototype for ADAM computer showing front loading mechanism 5.25 inch floppy drive prototype - side view showing connection ports and ventilation

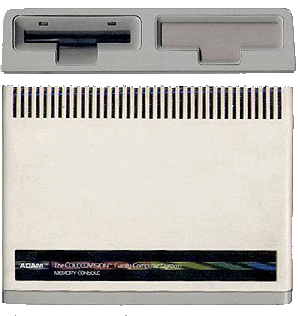

5.25 FLOPPY DRIVE

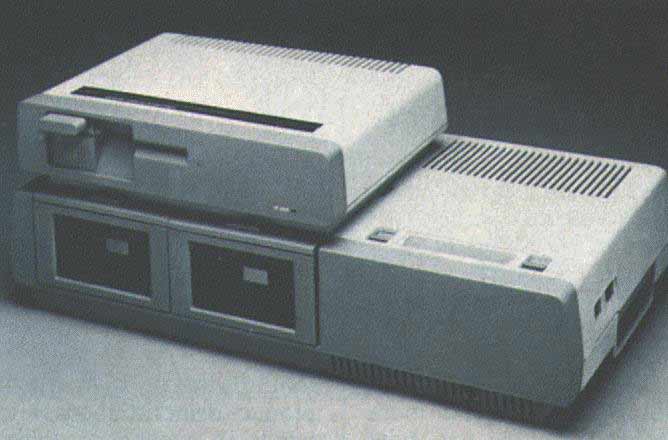

5¼ Disk Drive Module

A double density disk drive for those who prefer the disk storage medium. This state of the art accessory allows data storage of up to 360K bytes or characters on readily available 5¼" floppy disks. Information retrieval is swift and efficient, making it ideal for applications requiring frequent disk access.

Most ADAM software will be available on 5¼" disks as well as the standard digital data packs. The 5¼" Disk Drive will work with all ADAM software, including SmartWRITER word processing and CP/M®‑based programs. The Disk Drive Module fits easily into the Memory Console and can be used in conjunction with the Digital Data Drive. And whenever the user is ready, adding a second Disk Drive will be easy.

(Not seen in the wild)
Tractor feed attachment prototype for ADAM printer showing continuous paper mechanism Tractor feed attachment - technical diagram showing paper path and mounting system
TRACTOR FEED

Tractor Feed

Tractor Feed for SmartWRITER™ Printer. Designed especially for ADAM! Snaps on to the SmartWRITER printer to securely hold continuous-feed fanfold paper in any width up to 9%". This will make using the printer even quicker and more convenient, since paper will no longer have to be loaded one page at a time.

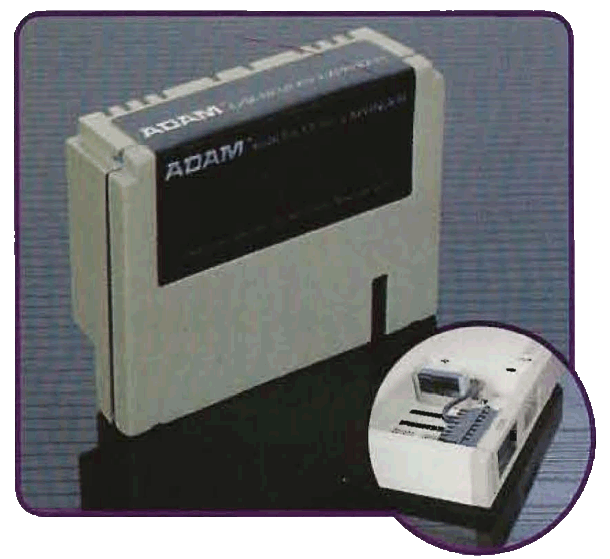

64K memory expansion case prototype for ADAM showing compact design and connection interface 64K memory expansion module - alternate view showing installation position
MEMORY EXP. CASE

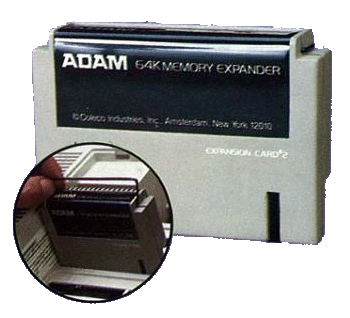

64K Memory Expander

Adds 64K bytes of RAM to give the ADAM system a total of 144K Random Access Memory. It increases the workspace capacity of SmartWRITER word processing by 64,000 characters ... a full 32 pages of double-spaced text. It's a "card" that plugs directly into a slot beneath the access door of the Memory Console. Once it's in place, users can run more complex programs. The Memory Expander will increase the impressive power of ADAM, and add immeasurably to versatility.

(Not seen in the wild)
ADAM Universal Interface prototype - serial and parallel ports with DB-25 and Centronics connections
UNIVERSAL INTERFACE

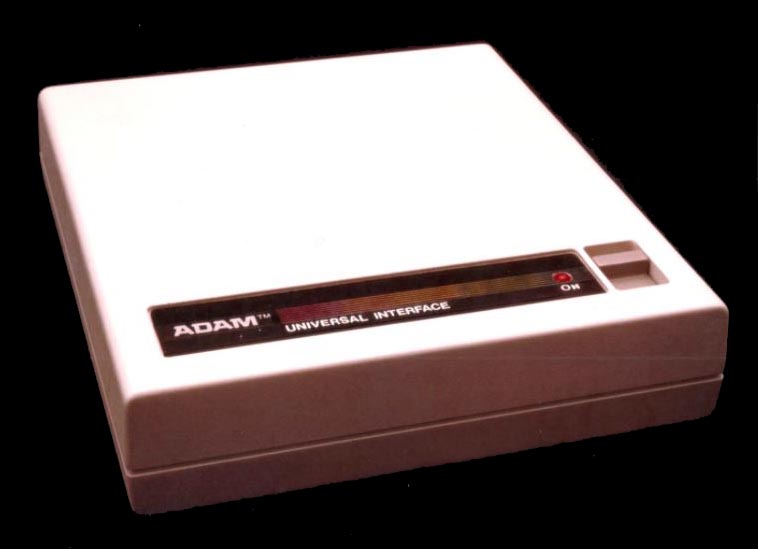

ADAM Universal Interface

Never released, though mentioned in the ADAM CP/M 2.2 manual. Implements one ADAMnet serial port (DB·25) and one ADAMnet parallel port (Centronics 30pin) with a single 6801 CPU. It is a box which attaches to the left side of the system console at the ADAM printer port: the regular ADAM printer plugs into the device and power is passed through it to the system console. One working example is known to exist.

ADAMLink 1200 baud modem prototype showing front panel with status lights and controls ADAMLink 1200 modem - rear view showing phone line and ADAMnet connections

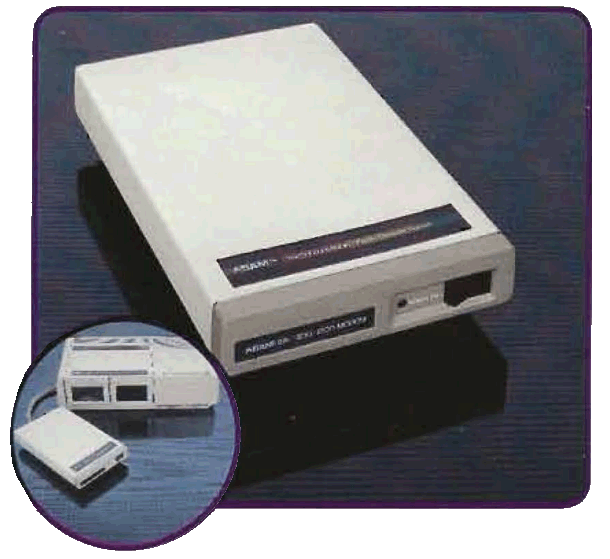

ADAMLink 1200 Direct Connect Modem

ADAMLink 1200 Direct Connect Modem

An advanced 1200/300 baud full duplex modem at an unheard-of low price point! ADAMLink 1200 has its own built-in microprocessor. It connects right in to ADAM-Net and it couples directly to the phone line, too. No additional interface is necessary and there are no clumsy receiver cups.

The ADAM Link Telecommunications software package is included, which incorporates advanced features that will make the Modem easier to use, such as automatic dialing and 1200/300 baud speed selection. Electronic banking can be handled efficiently and electronic mail sent at high speed.

With the Modem, ADAM also becomes a terminal to access information services such as CompuServe, The Source, Dow Jones and ADAM On-Line, a new information service directed specifically at ADAM users. The package also includes a free sampling of CompuServe and ADAM On-Line.

(Owned by Howard Eglowstein. The prototype was made for us by Anchor Automation, and is essentially a Hayes-compatible with a 6801 board talking serial to it.)
ColecoVision ADAM Voice Module prototype showing cassette recorder functionality and gaming interface

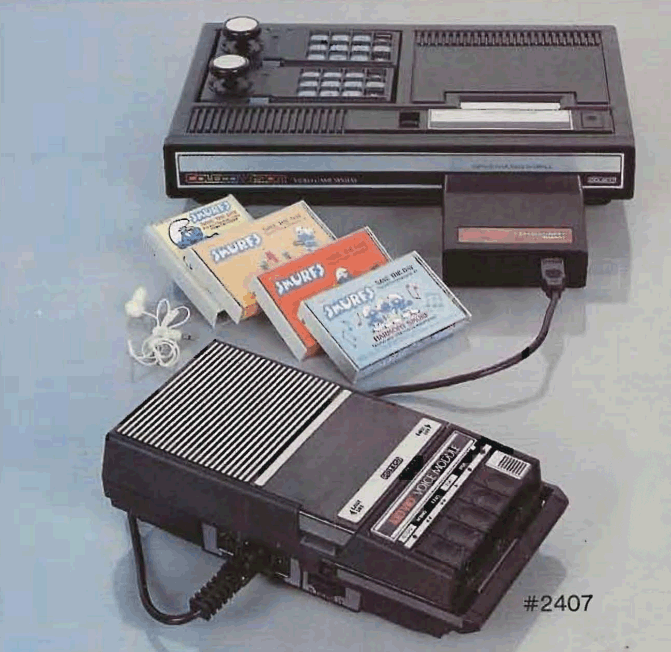

ColecoVision/ADAM Voice Module

KID VID™ VOICE MODULE WITH ADAPTER

for ADAM and ColecoVision®

Here's the new kid on the block! It's the KID VID Voice Module and adapter for ColecoVlsion and ADAM. It's so easy to install ... the adapter plugs in through the Expansion Port and connects directly to the Voice Module. This instantly transforms ColecoVision® or ADAMT into a talking educational system.

Kids will be enthralled, spending hour after hour watching, playing, listening, and learning! The Voice Module uses realistic human voices, music, and enhanced sound effects to coordinate with the action of specially-designed learning games! And, when it's not being used for games, the Voice Module doubles as a quality portable cassette recorder.

(Not seen in the wild)
