The SuperADAM
Modified by John Lundy — Lundy Electronics

SuperADAM 2026
★ NEWEST MODEL

Modified by John Lundy (2026)

Lundy Electronics

The most advanced SuperADAM ever built. Featuring rare dark beige consoles, a custom machined COM bracket, DRAM-to-SRAM conversion on both Delta and Gamma boards, and optional VGA output — all with nothing exiting the top cover.

Case & Cosmetics

- Rarer dark beige bottom consoles for the first two units made available

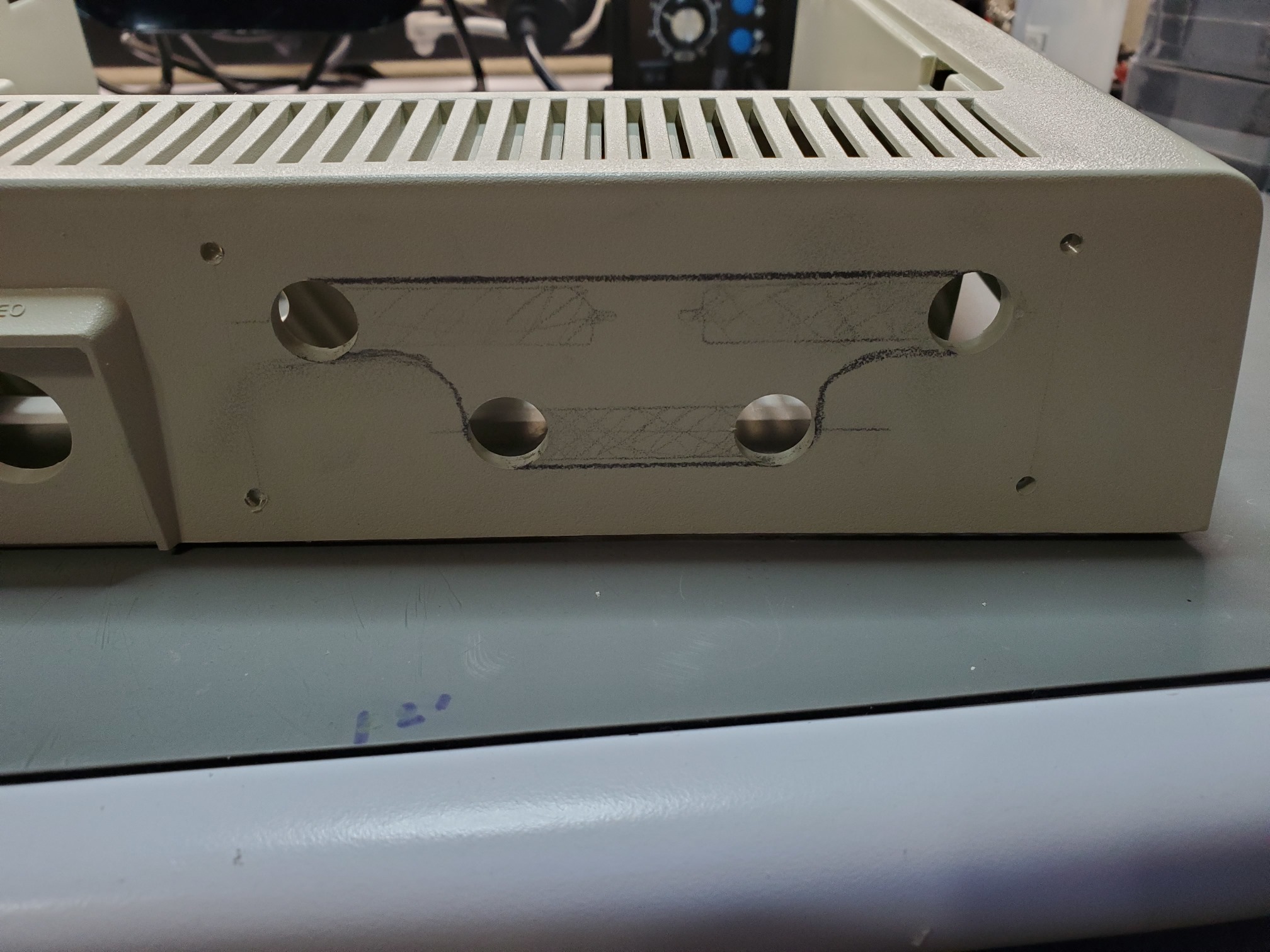

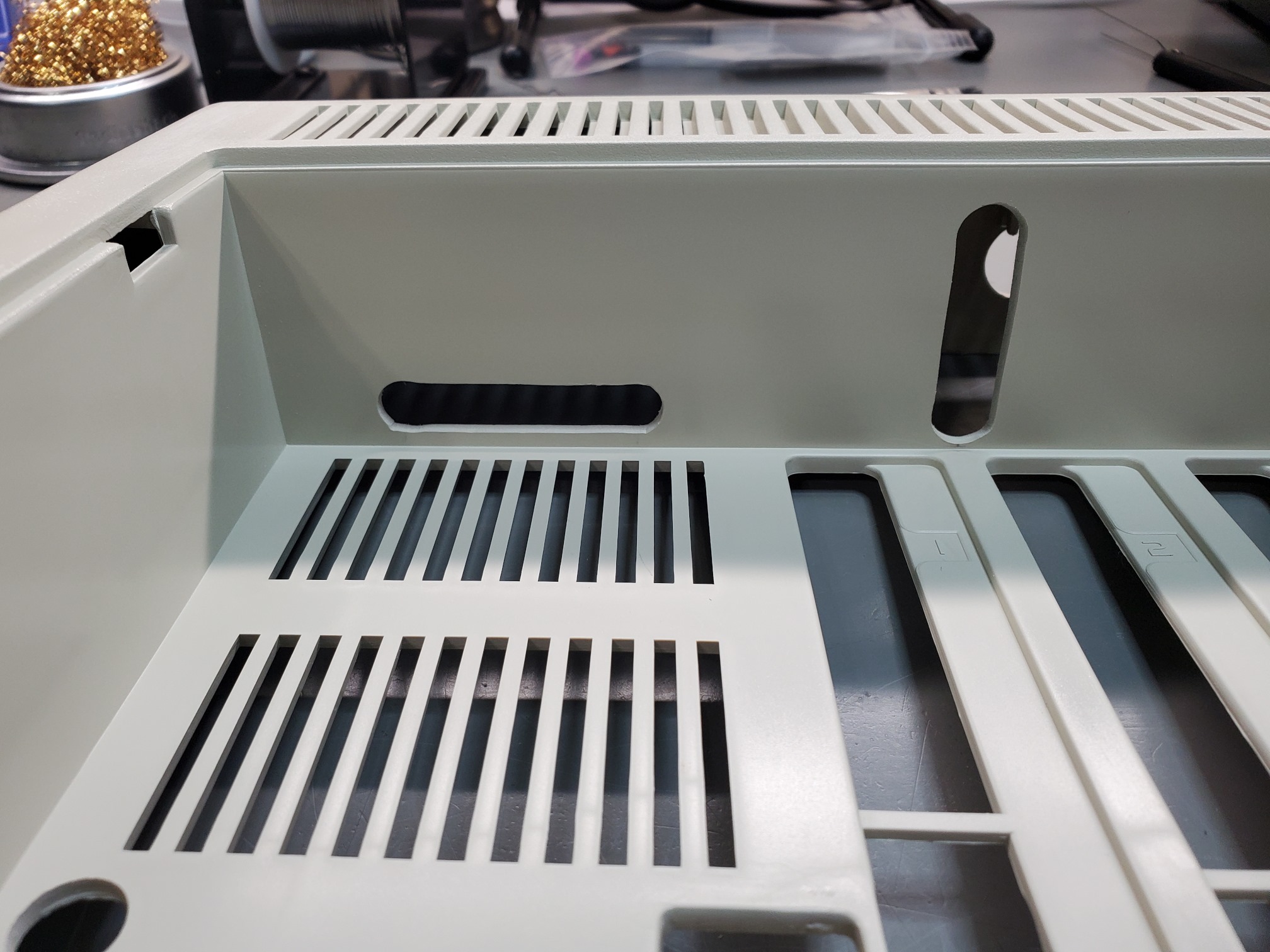

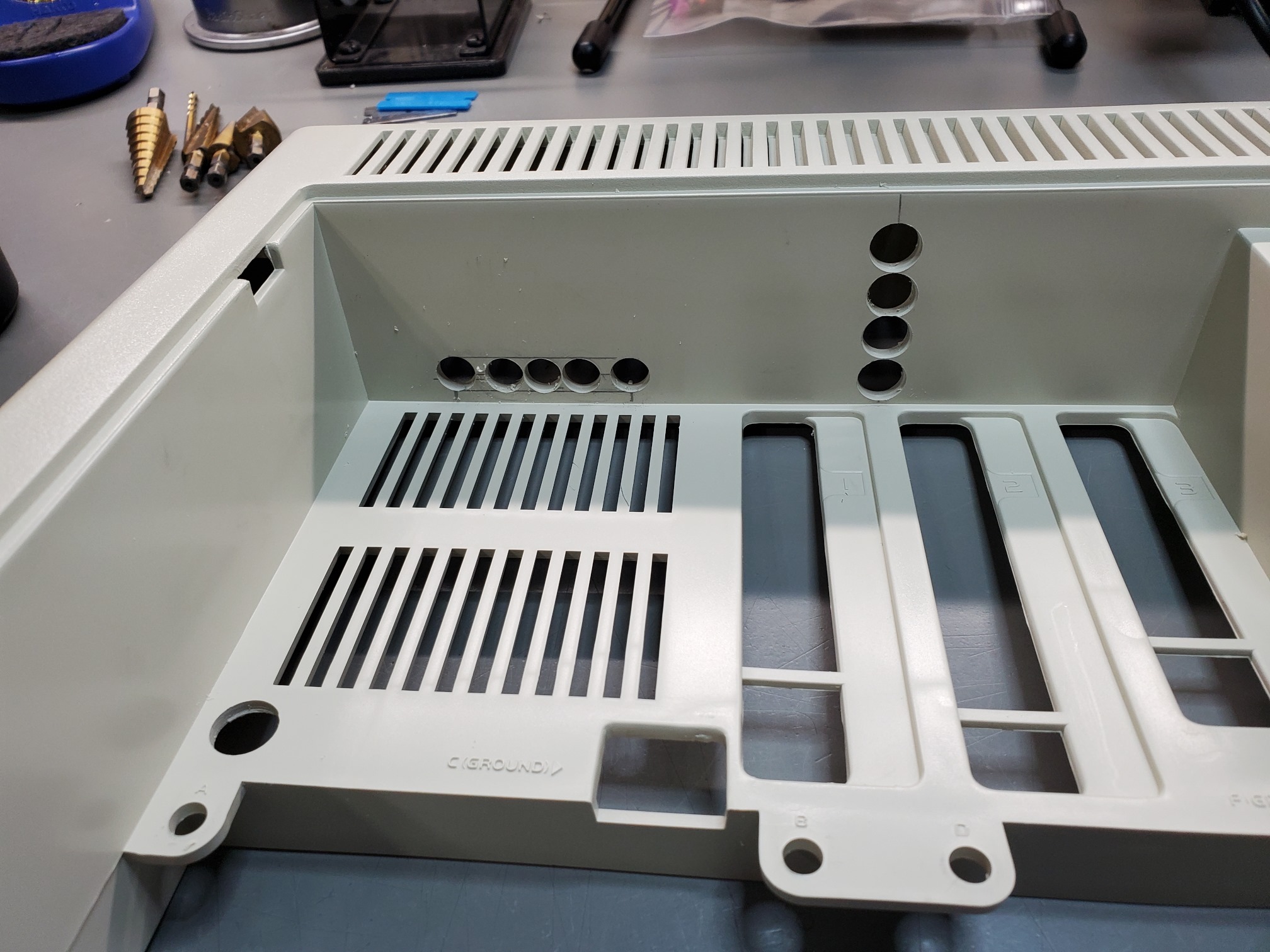

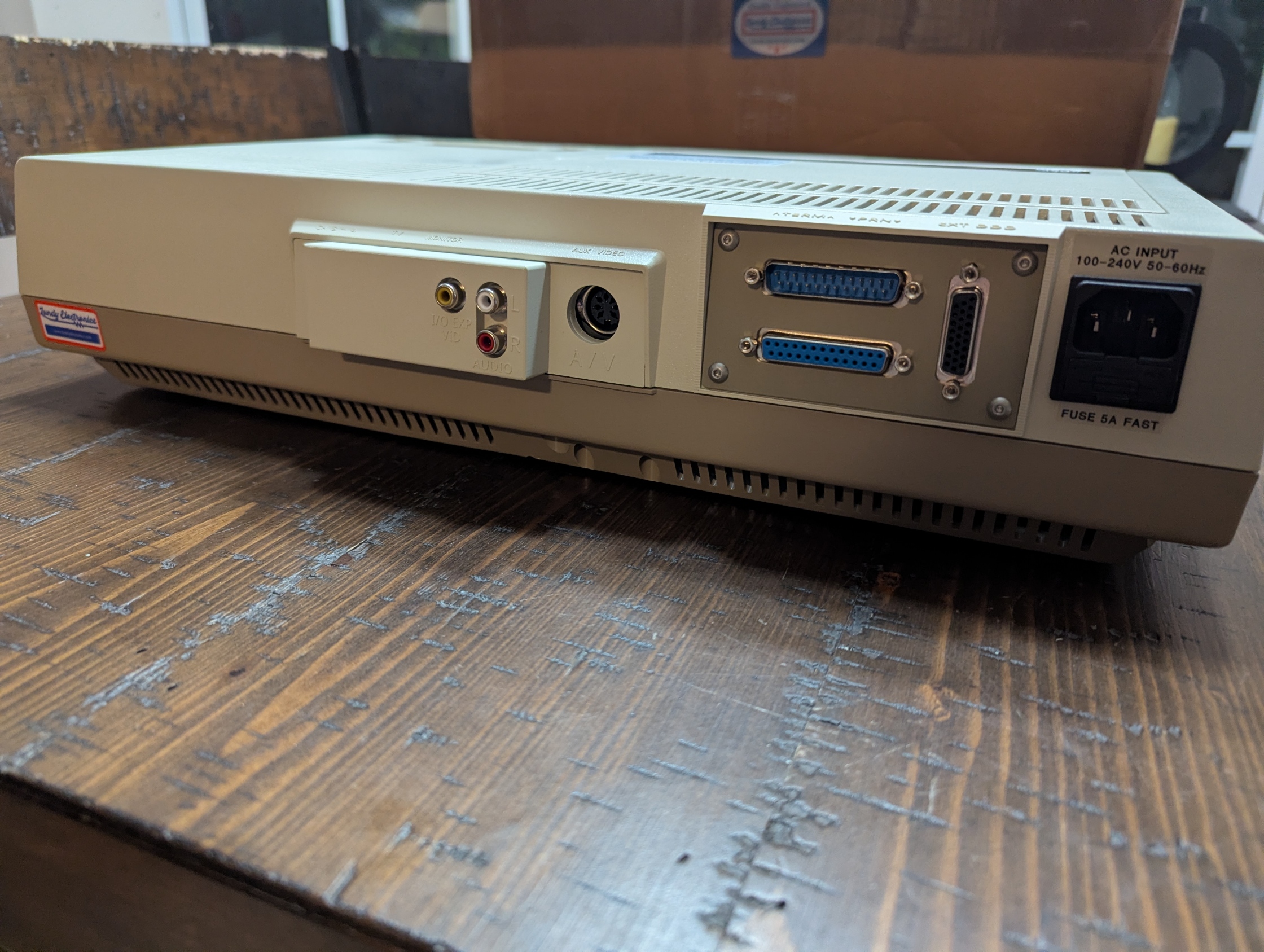

- Case modifications to cleanly route internal power supply, terminal, parallel, and external data drive cables utilizing a custom machined dark beige powder coated metal COM bracket mounted on the back. Nothing hangs out the top cover
- Professionally printed brushed aluminum SuperADAM front decal
- Thoroughly cleaned console with new label set. Best effort to find matching dummy data drive bezels to house the internal drive emulators
- New proper sponge rubber feet

Power

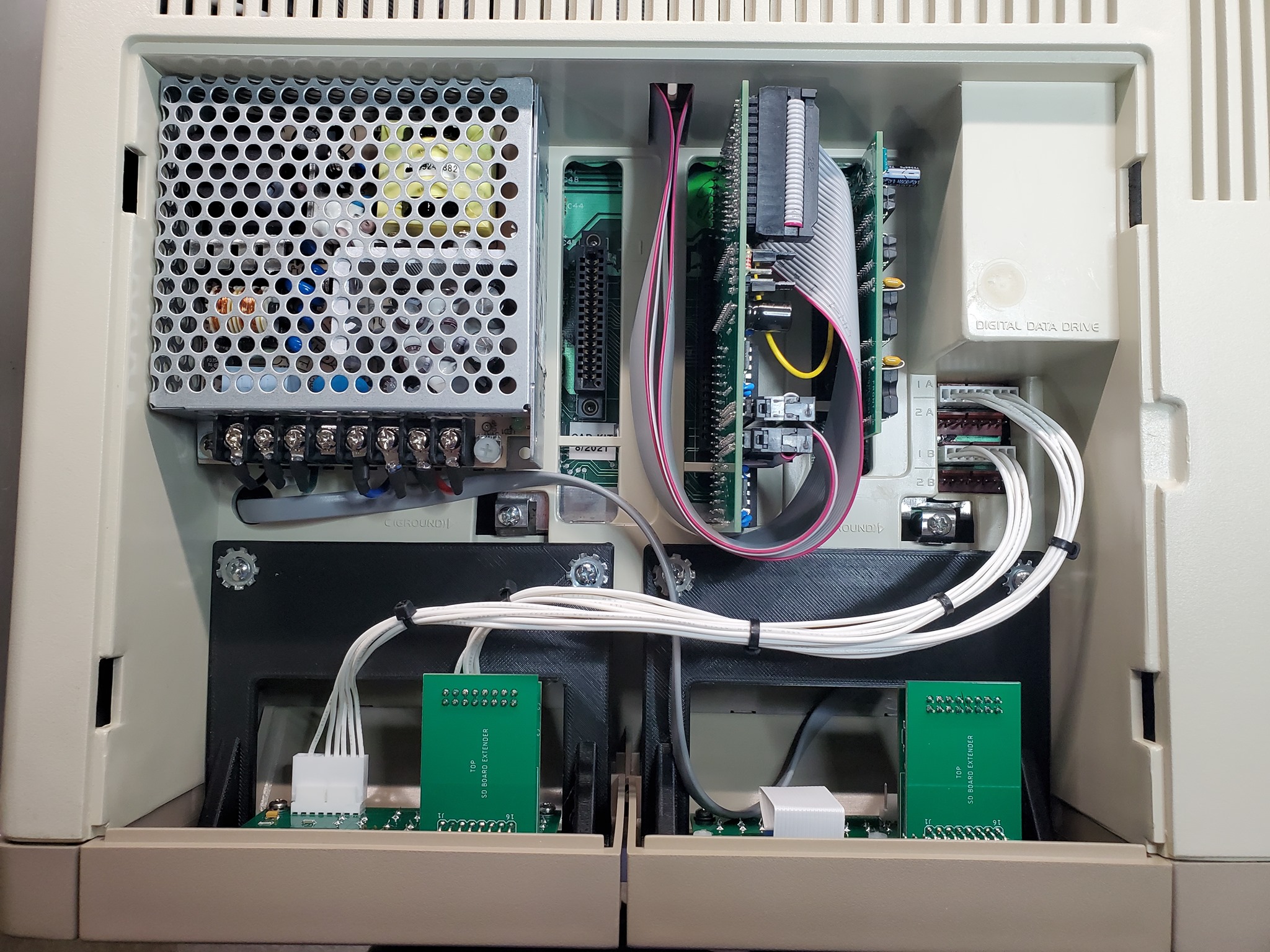

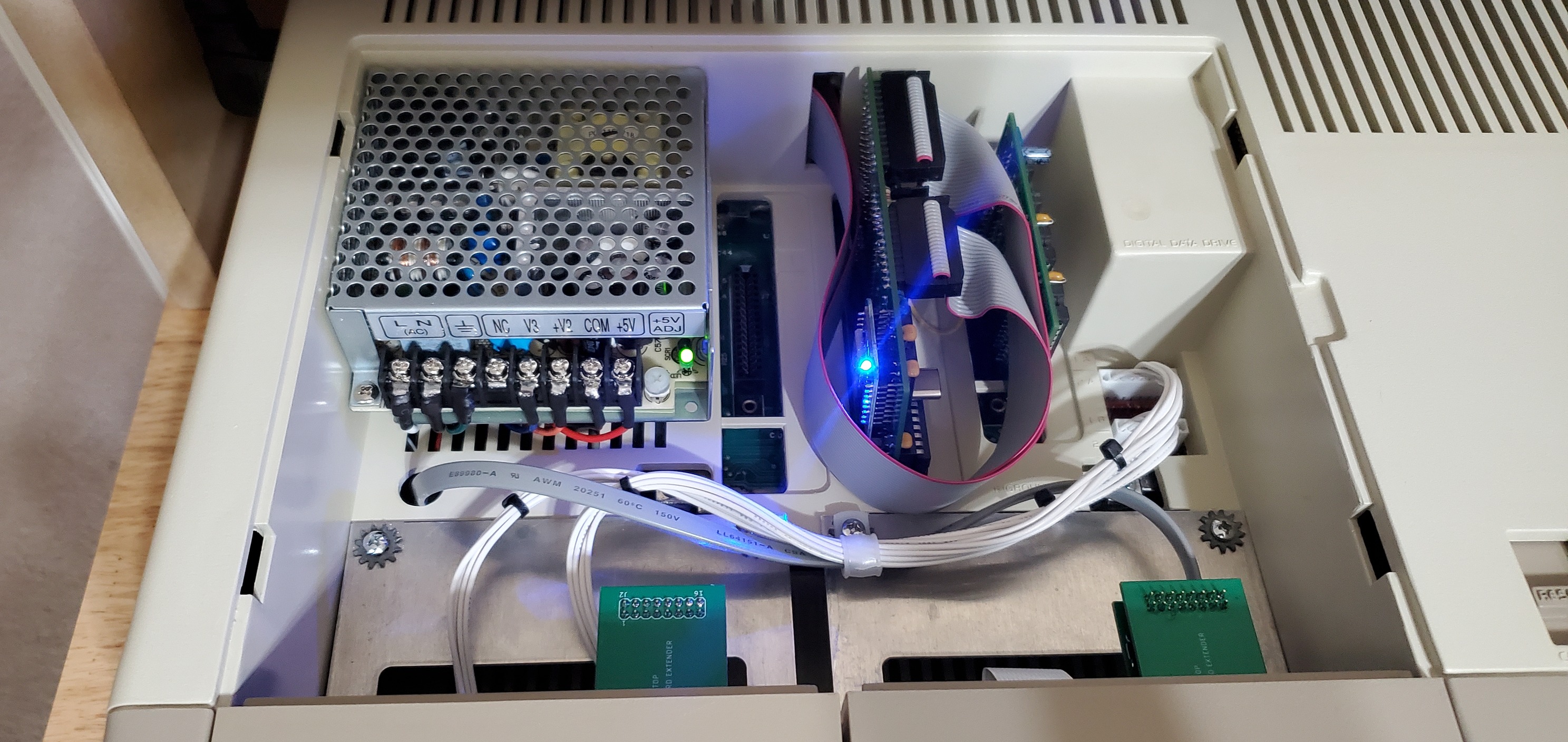

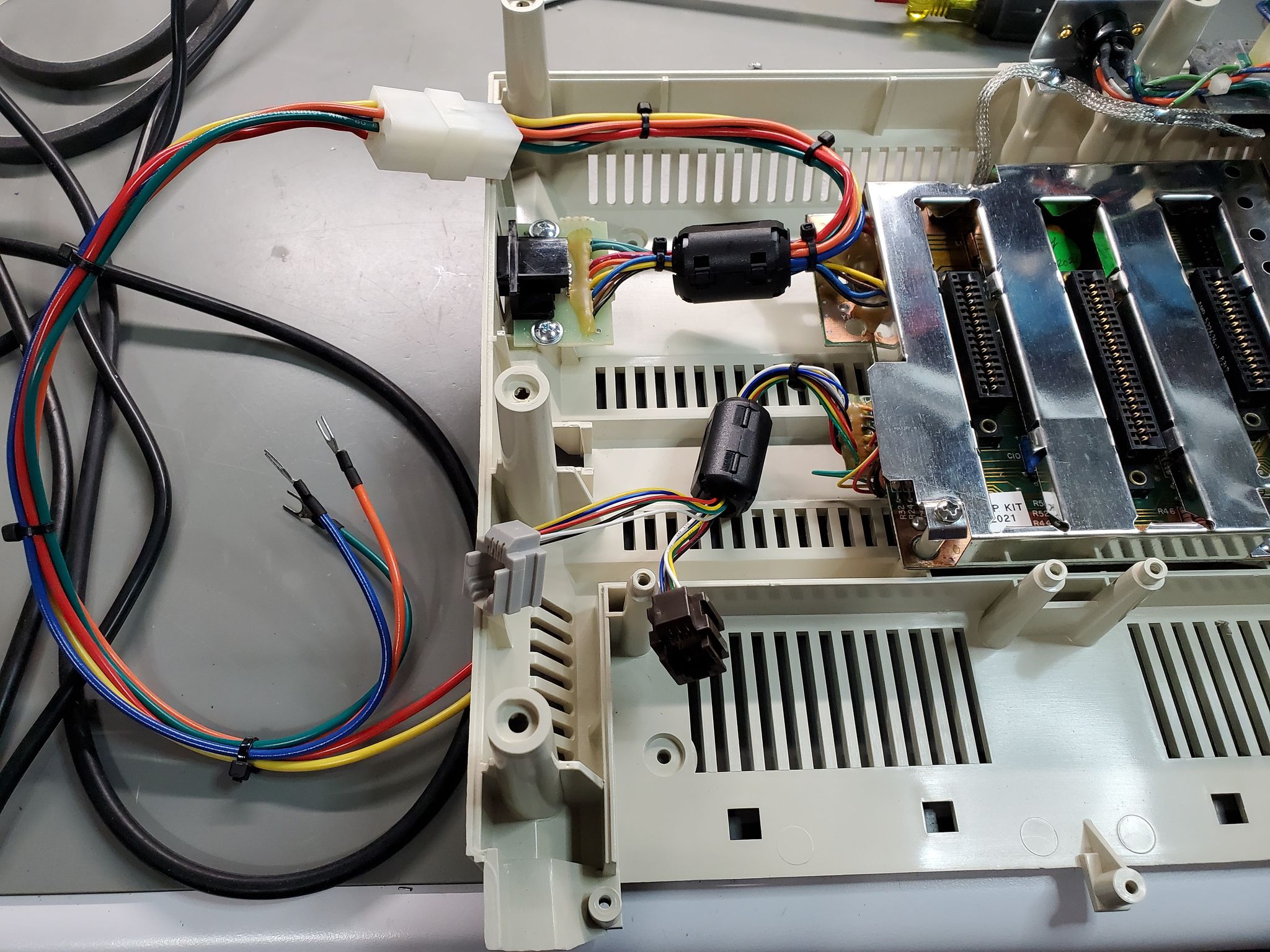

- Internal power supply

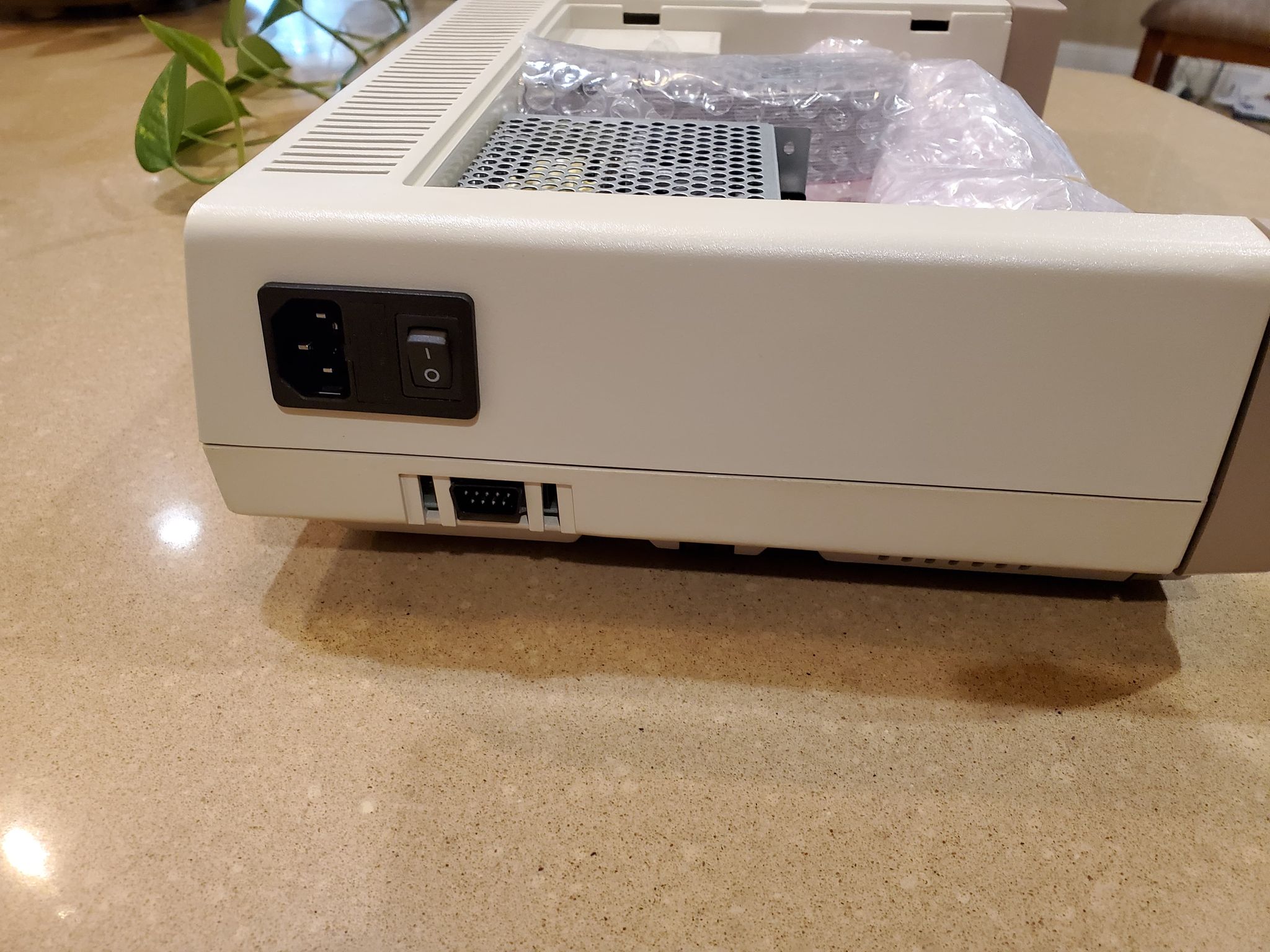

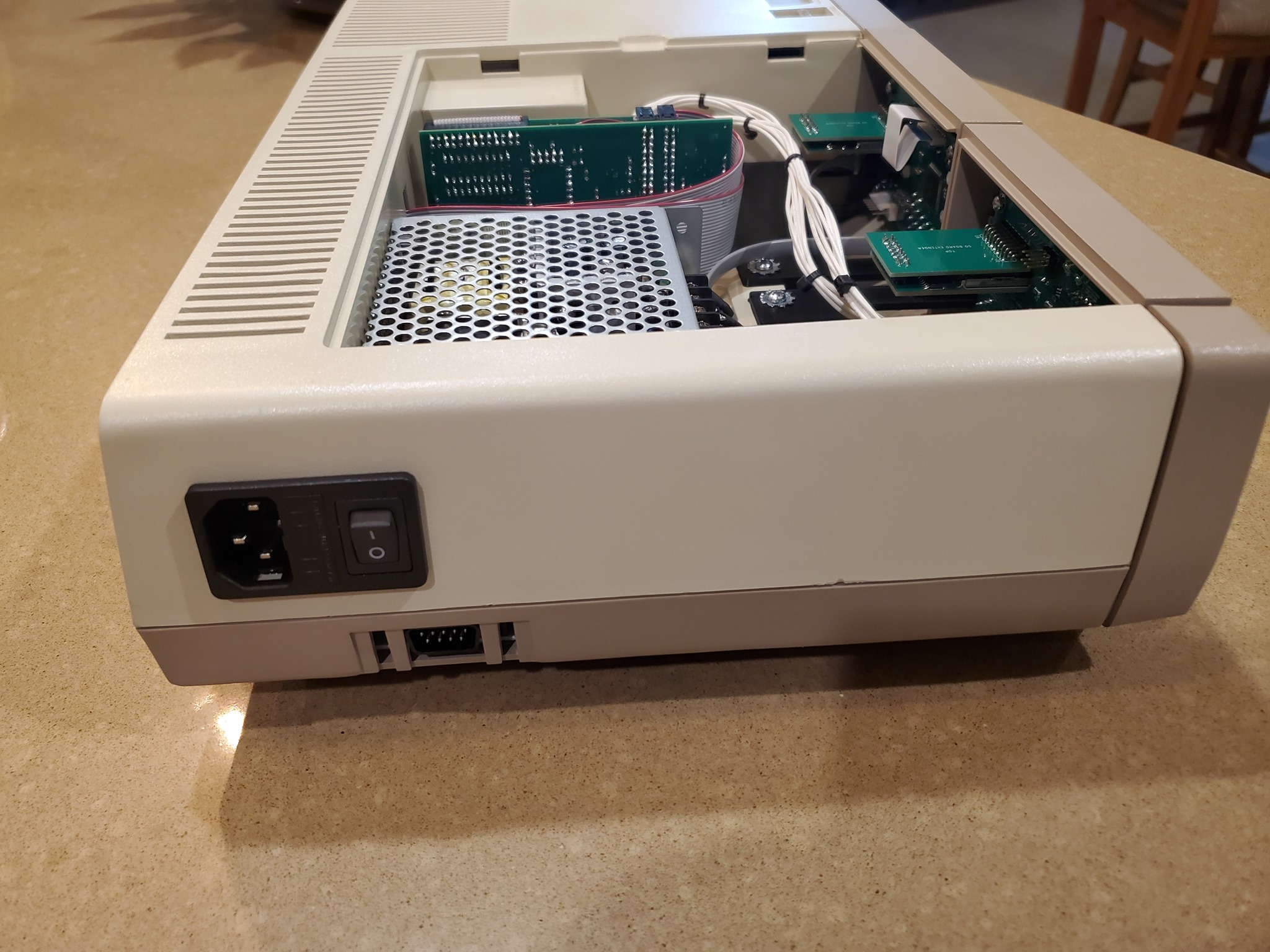

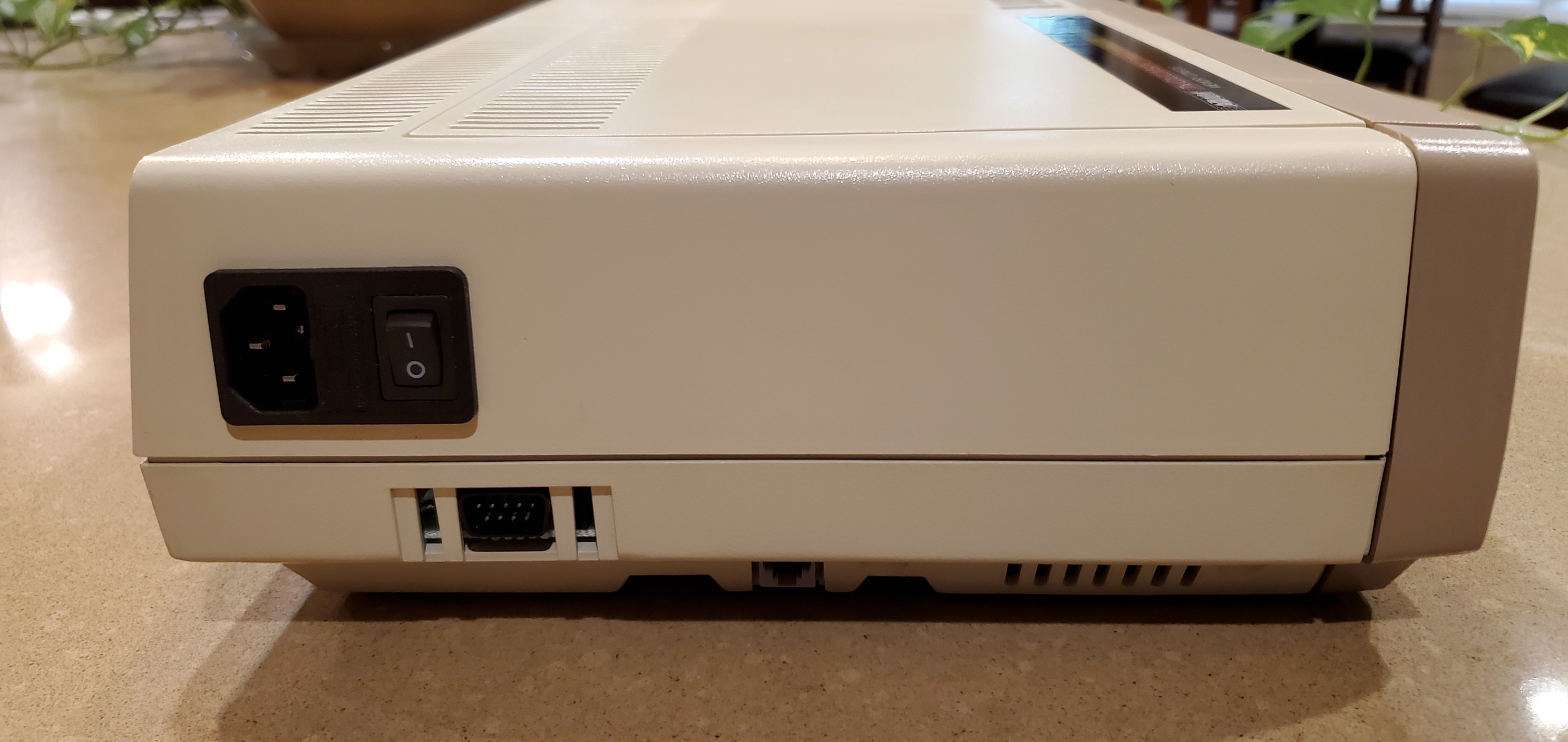

- Rear IEC fused power input module
- Left side mounted power switch towards the front
- Red LED power indicator on front left

Video & Audio

- If video poll leans towards VGA: No-cut beige bracket covering the RF channel selector, TV, and monitor port area for VGA and audio out connectors. Can always be removed and use included original VDP to drop back to factory video. There is now a socket to make the change easily if desired
- If video poll leans towards composite only: An audio RCA connector will be added next to the monitor RCA connector. Will be recessed in its own hole for a factory look
- Audio balance fix mod for using SGM and Speech Synthesizer

Board Upgrades

- Complete capacitor kit, including tantalum capacitors
- New cartridge connector for reliability
- Delta board DRAM to SRAM converter
- Gamma board DRAM to SRAM converter (new product — not yet publicly released)
- Thoroughly cleaned PCB and polished I/O fingers
- Ultrasonic cleaned joystick connectors

Connectivity & Expansion

- MIB238-WiFi board (WiFi modem, terminal, parallel port, expansion ROM socket, and memory addressor signal generator connection)
- 1MB RAM Expander board
- Internal ADAMnet board connection with printer reset silencer. Still allows +5 out of side power connector to power a roller controller and factory printer ADAMnet connectivity

Storage

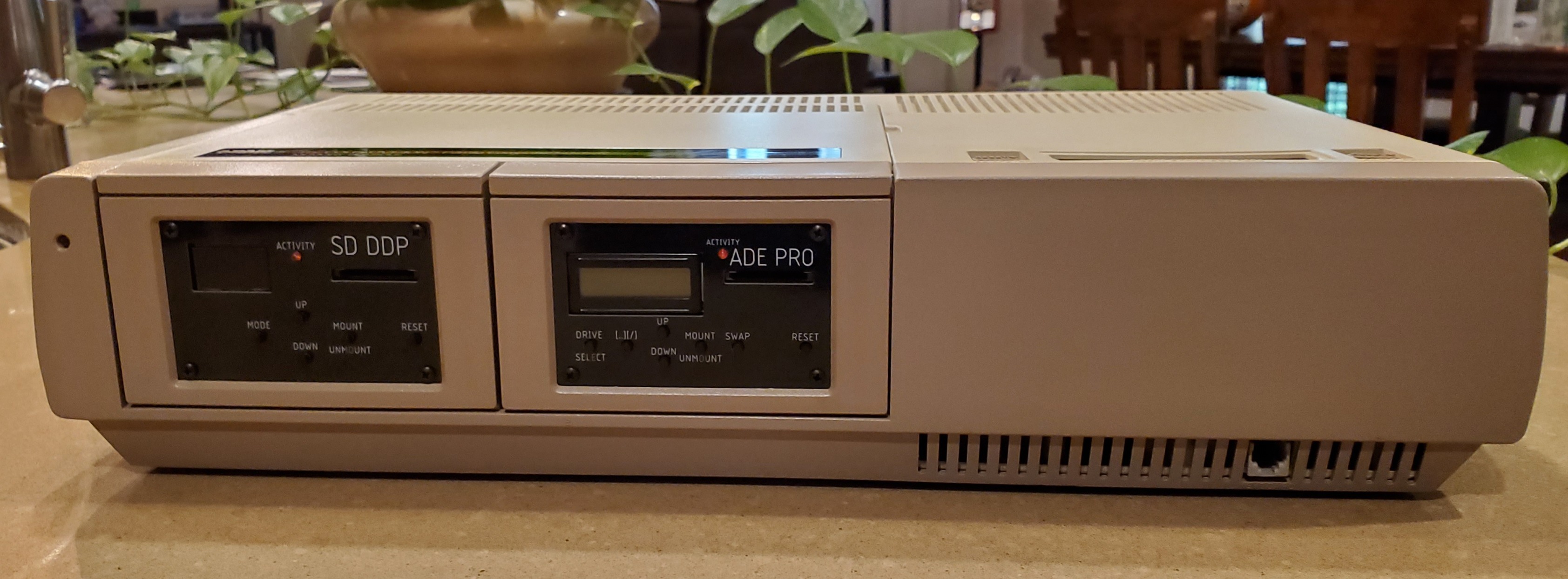

- Internal drive emulator (ADE)
- SD DDP (internal SD data drive)
- External data drive, housing, and cable

Software

- SmartBASIC XROM in MIB238 boot ROM socket — Console can boot instantaneously to SmartBASIC

SuperADAM 2026 Gallery

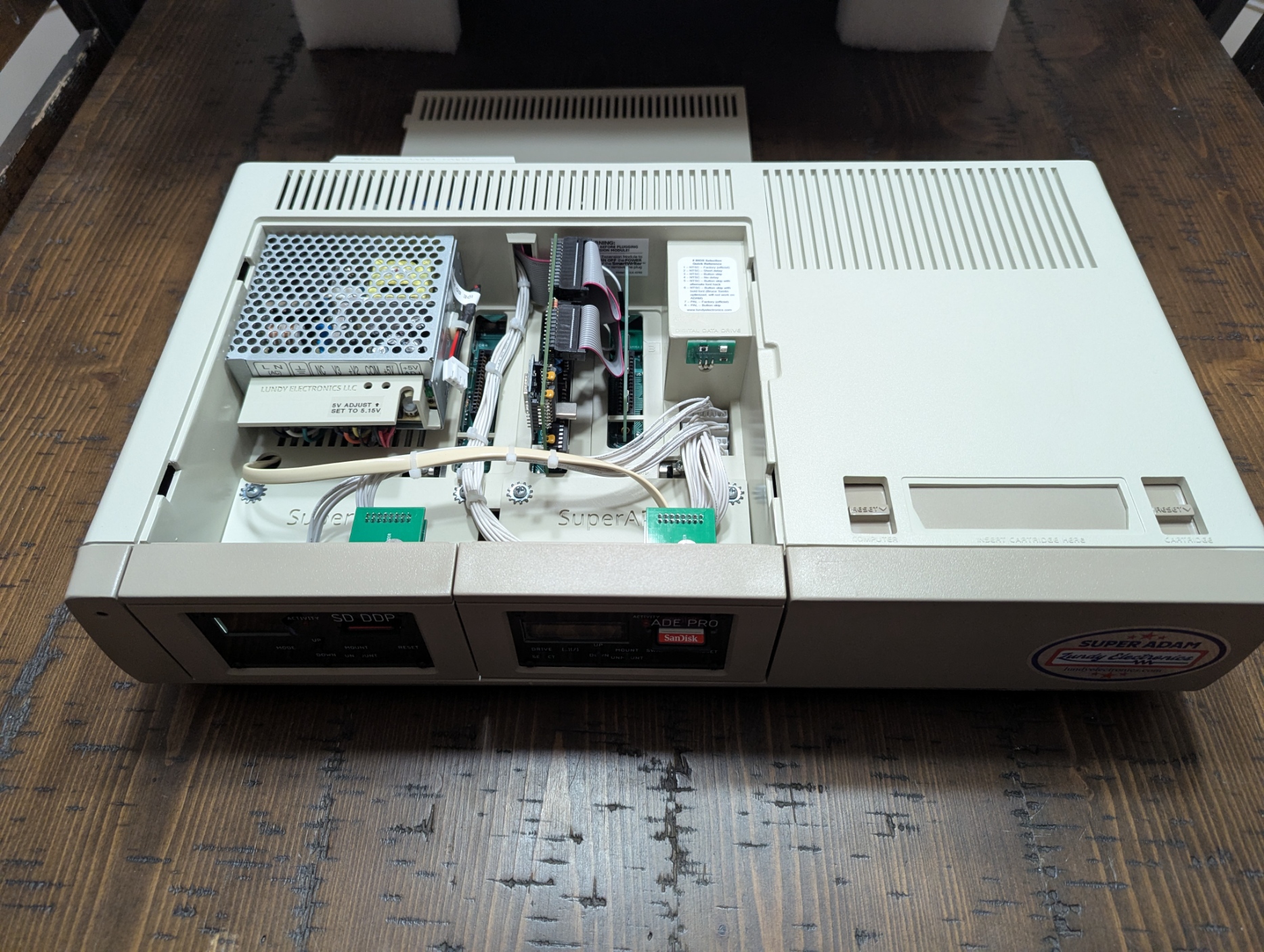

SuperADAM WiFi
✓ UPGRADED 2026

Modified by John Lundy

Lundy Electronics

Lundy Electronics Super ADAM WiFi #1 — the first of the run, built in 2022 as John Lundy's own idea of a dream console. It went back to Lundy Electronics in 2026 for a second round of work. Both configurations are documented below — the 2026 upgrade first, then the original build sheet as delivered.

2026 Upgrade — What Changed

DRAM to SRAM converter — modernized memory, replacing the 4164 DRAM the console originally shipped with
PICO9918 with HDMI output — installed onto the Delta board, giving the console a modern digital display connection
New COM panel surround
New internal power supply covers

Apart from the memory conversion, the 2026 work is additive — everything else in the original build sheet below carries over unchanged.

Original Build Sheet — As Delivered (2022)

Case & Cosmetics

- Console itself

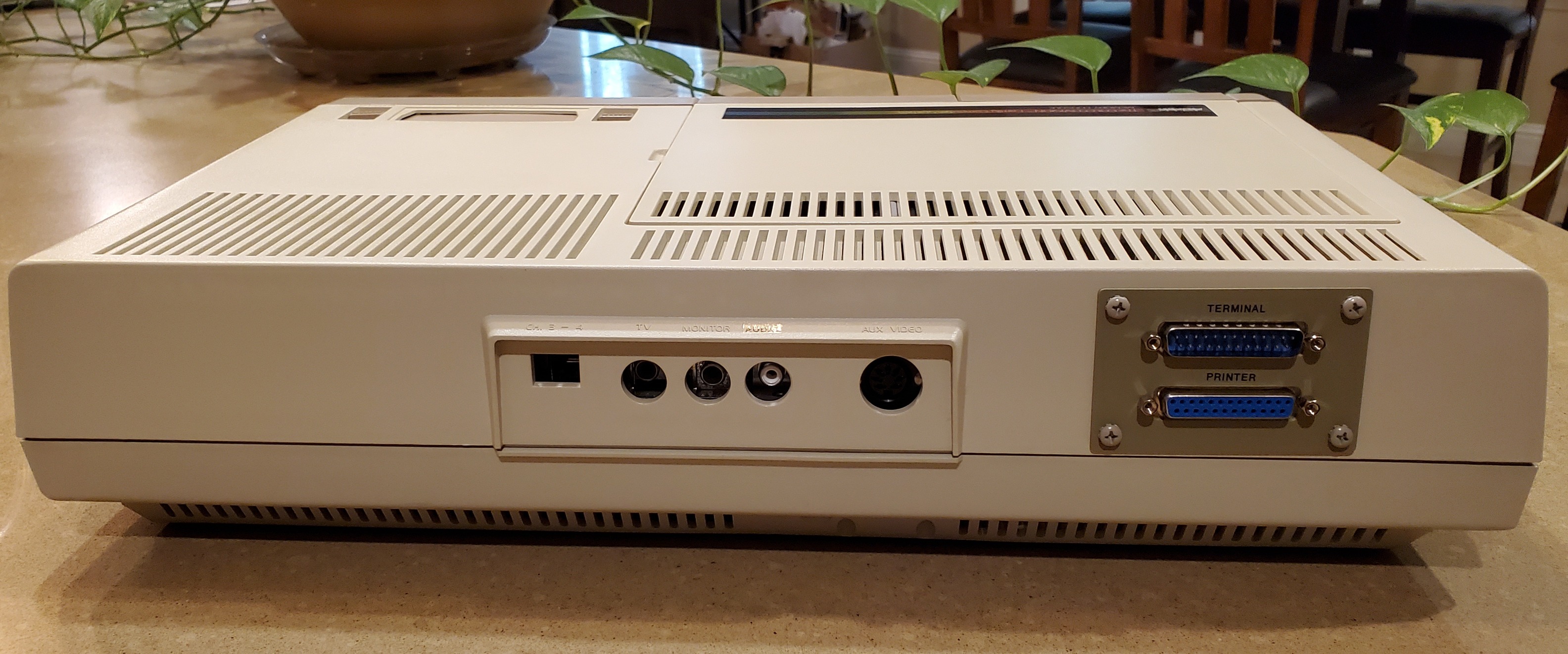

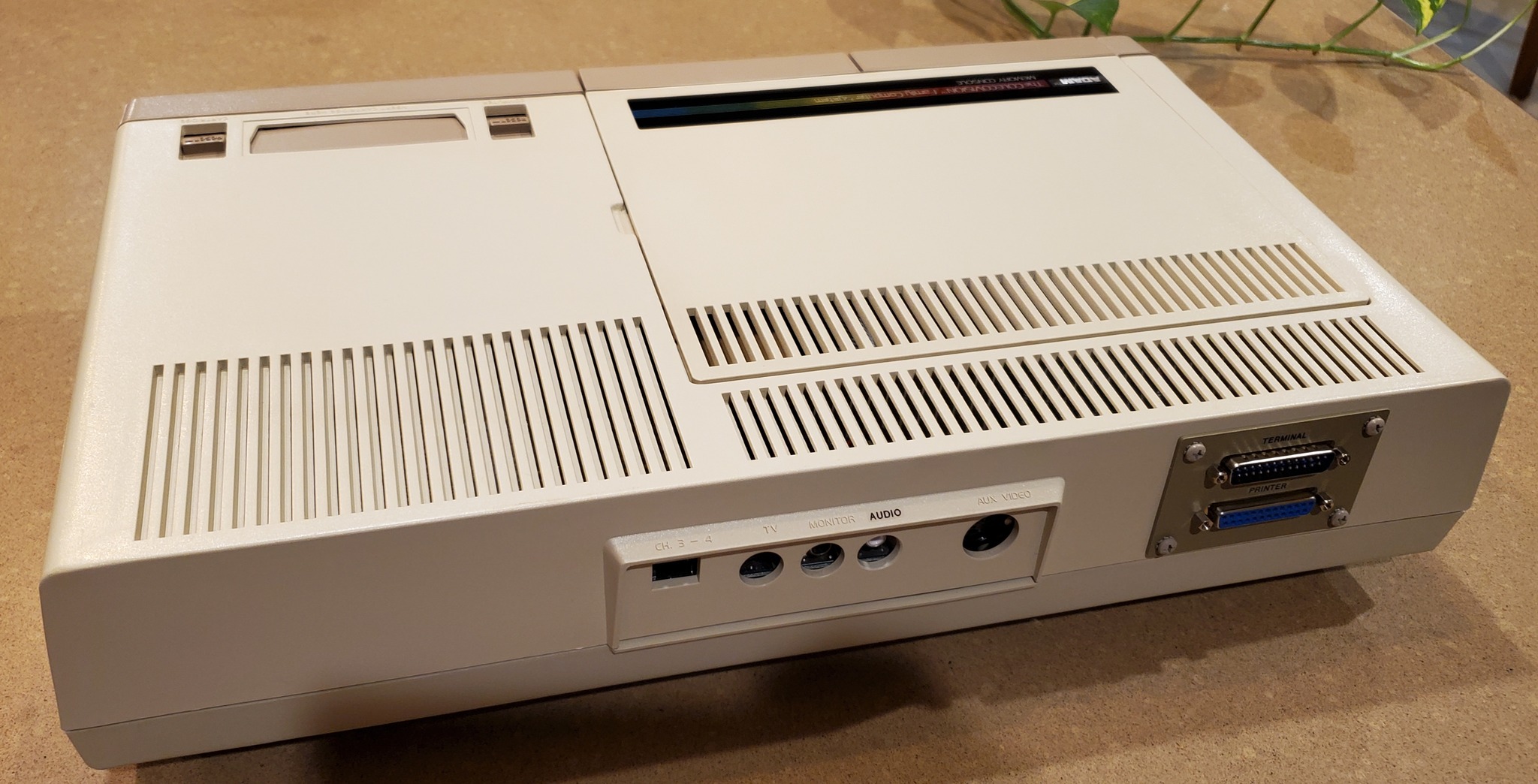

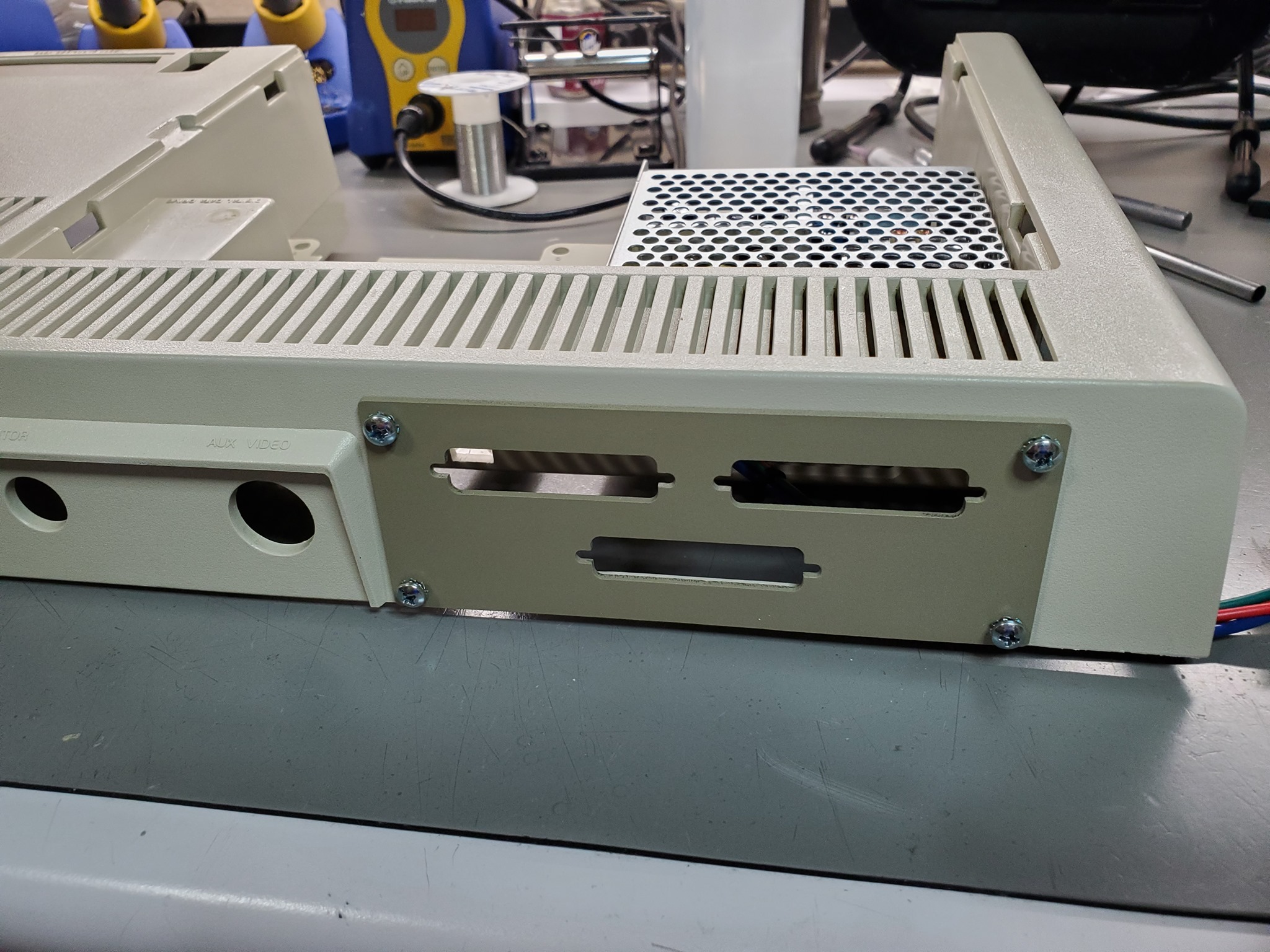

- Professionally machined and powder coated COM panel bracket designed just for an ADAM console (new surround fitted in the 2026 upgrade)
- All connectors ultrasonically cleaned for reliable connections
- All hardware polished to a chrome finish
- Other misc parts, materials, wiring, and connectors to make this modded console

Power

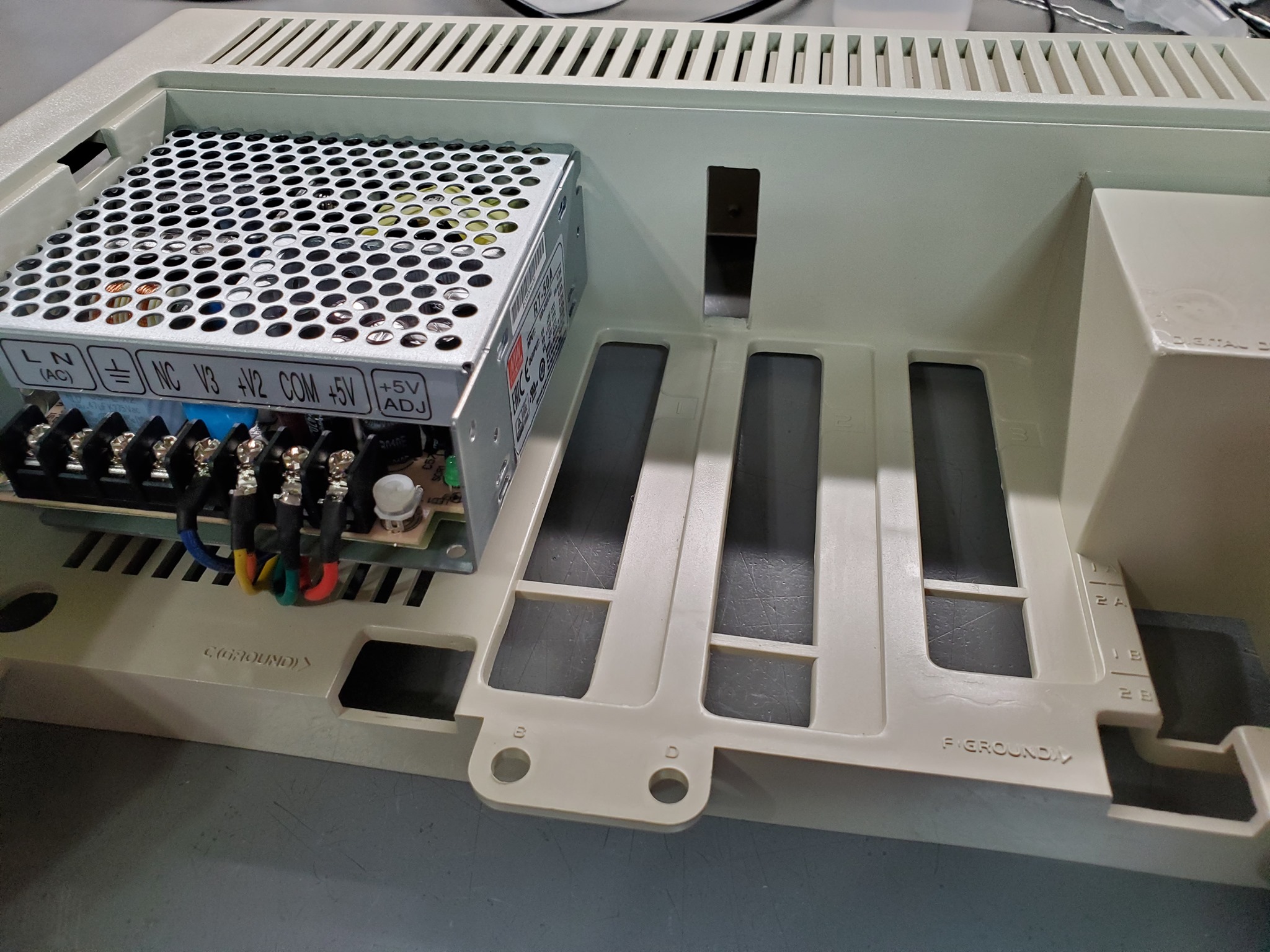

- Internal power supply (new internal covers fitted in the 2026 upgrade)

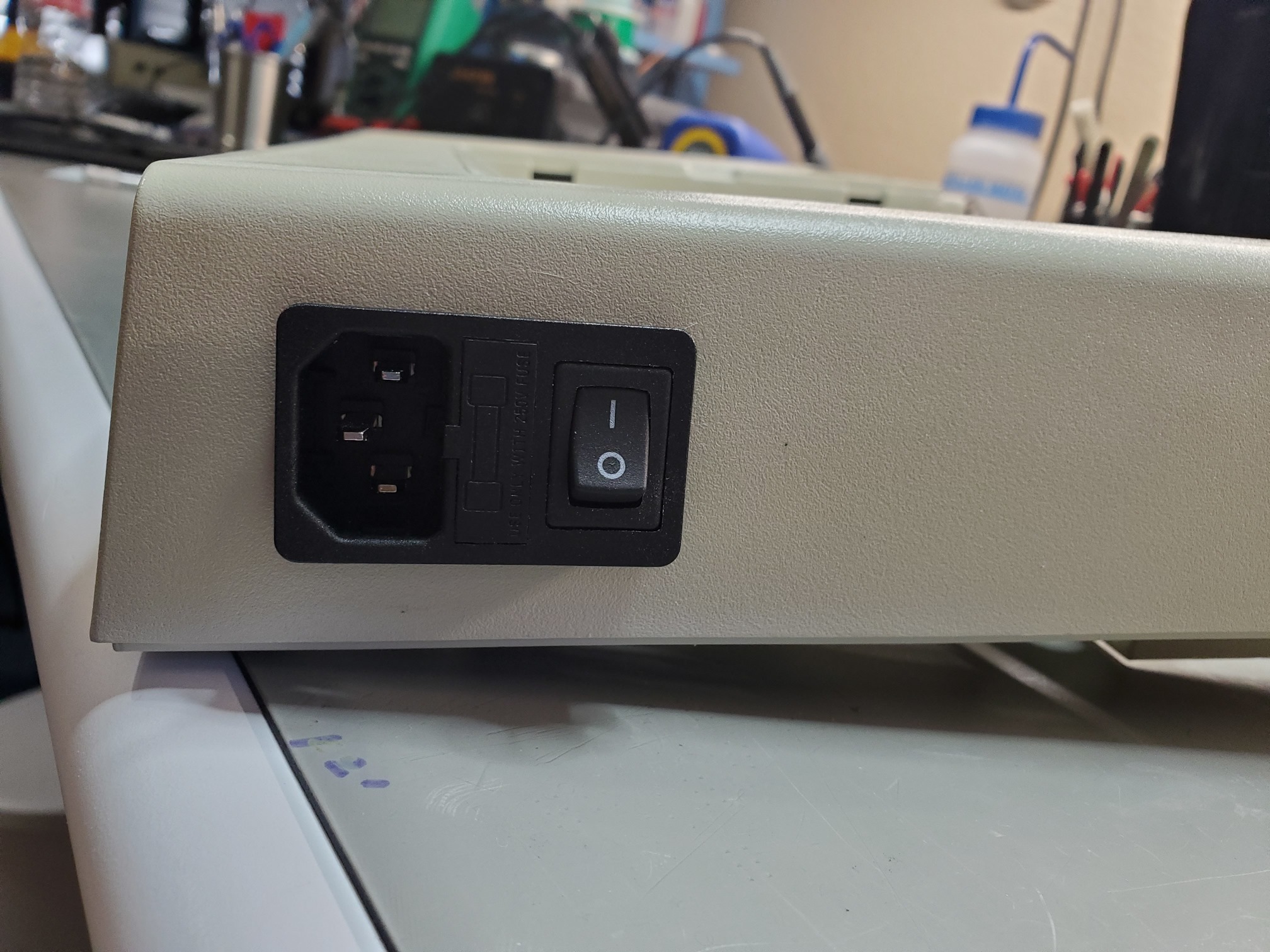

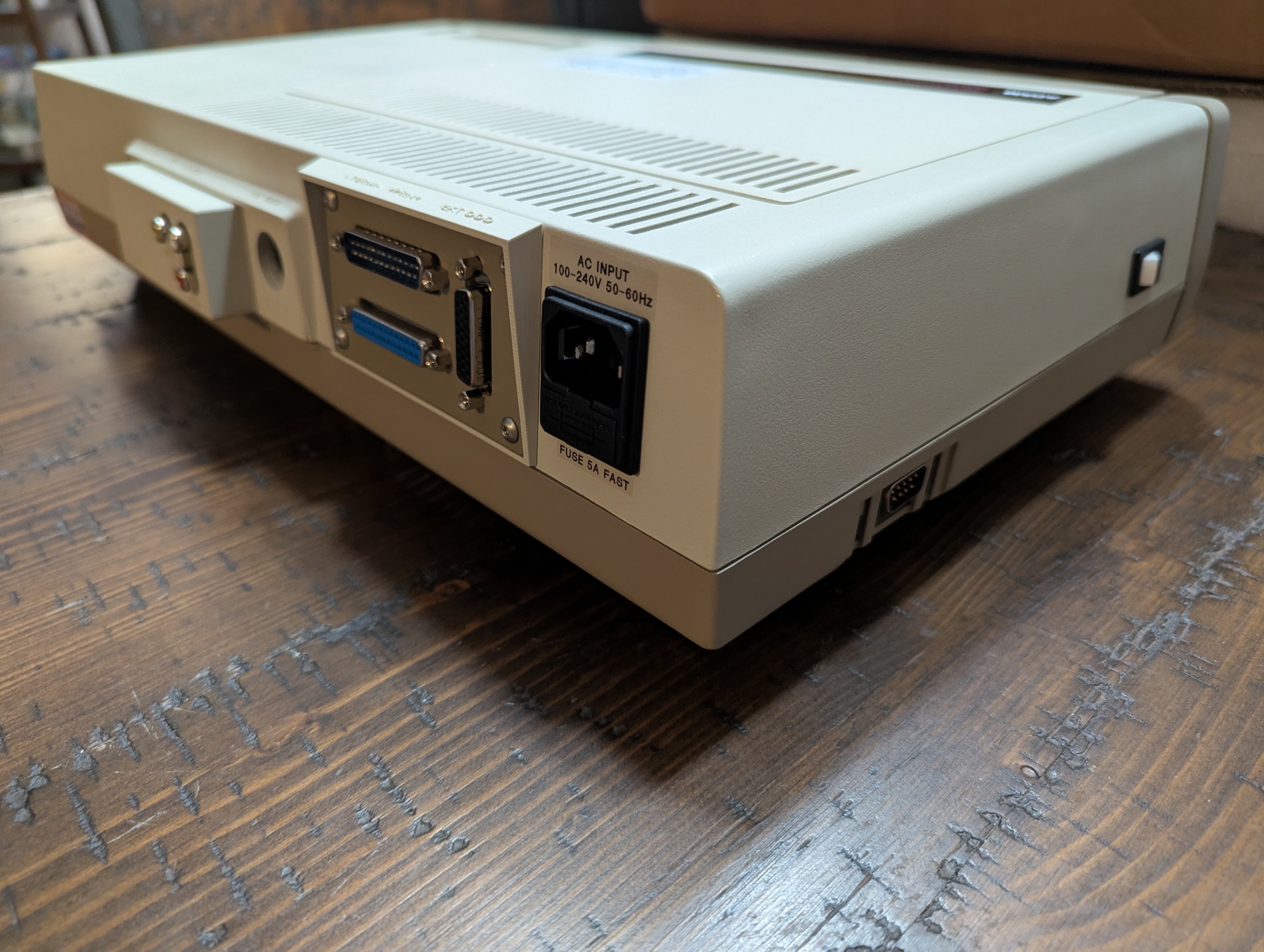

- IEC fused power inlet module and power cord

Video & Audio

- Audio out RCA connector (audio can now be obtained without the need for the DIN connector)
- C88 sound balance mod

Board Upgrades

- All 4116 DRAM replaced with 4164 DRAM and sockets (superseded by the Delta board DRAM to SRAM converter in the 2026 upgrade)
- Complete electrolytic and tantalum cap kit

Connectivity & Expansion

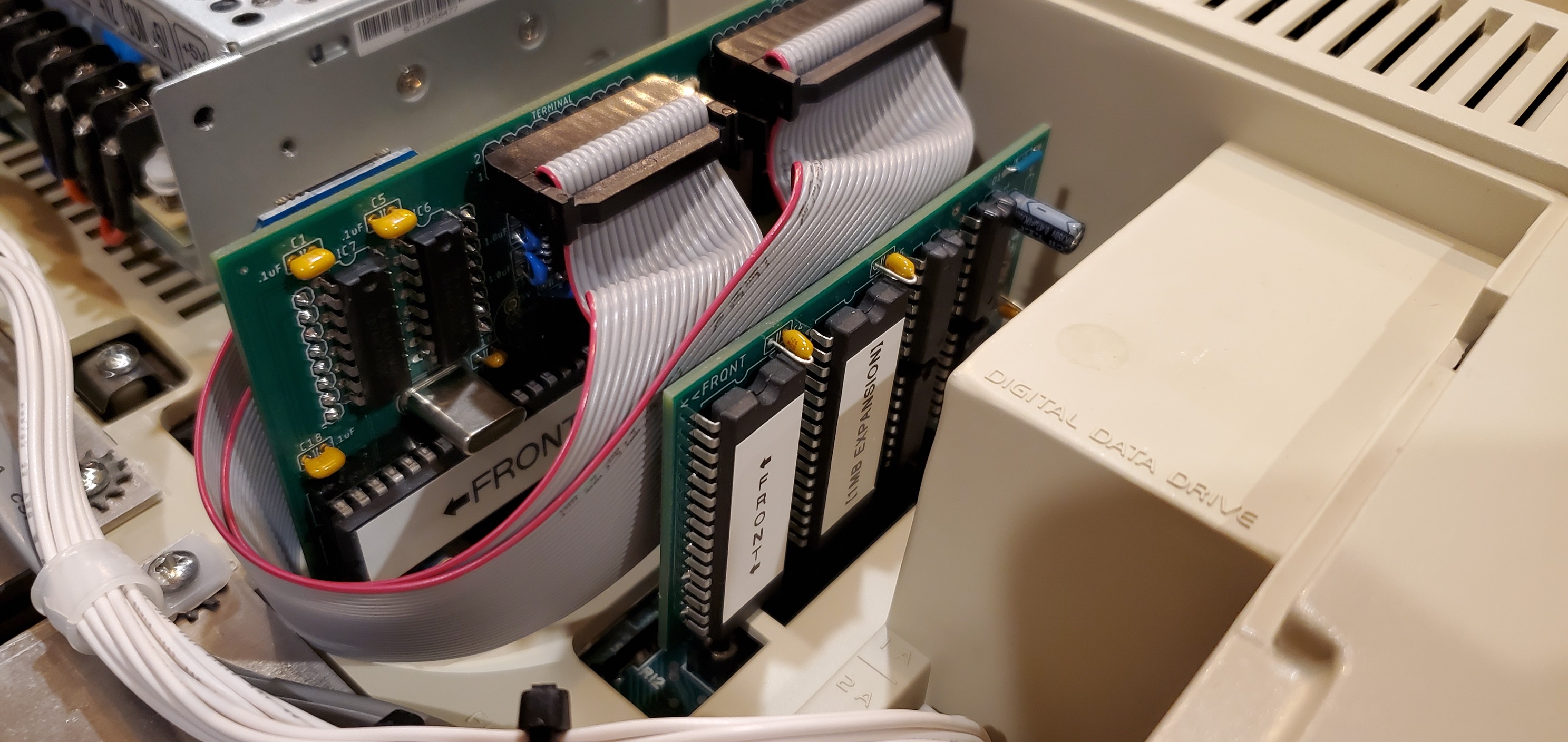

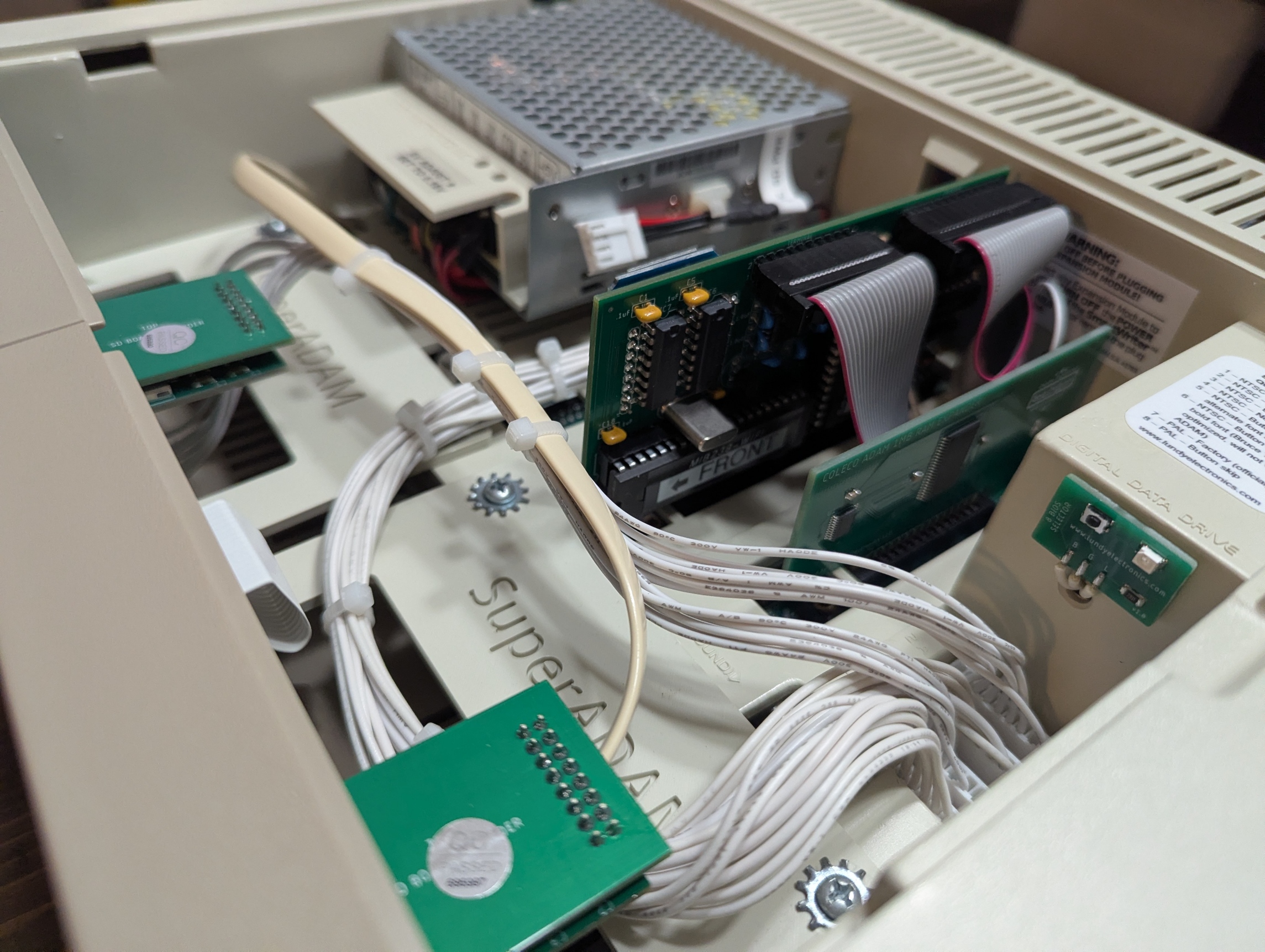

- MIB238-WiFi card (has WiFi modem, terminal serial port, parallel printer port, boot PROM, and memory expander signal generation connector)
- 1MB RAM Expander card
- Internal ADAMnet connector and cable
- ADAMnet to Coleco printer adapter with reset silence included for using a factory printer
- ADAMnet splitter to allow multiple ADAMnet devices on the single left side port if needed
- Two ADAMnet cables for future use
- 80-column terminal connector and internal ribbon cable
- Parallel printer connector and internal ribbon cable
- Memory expander signal wire

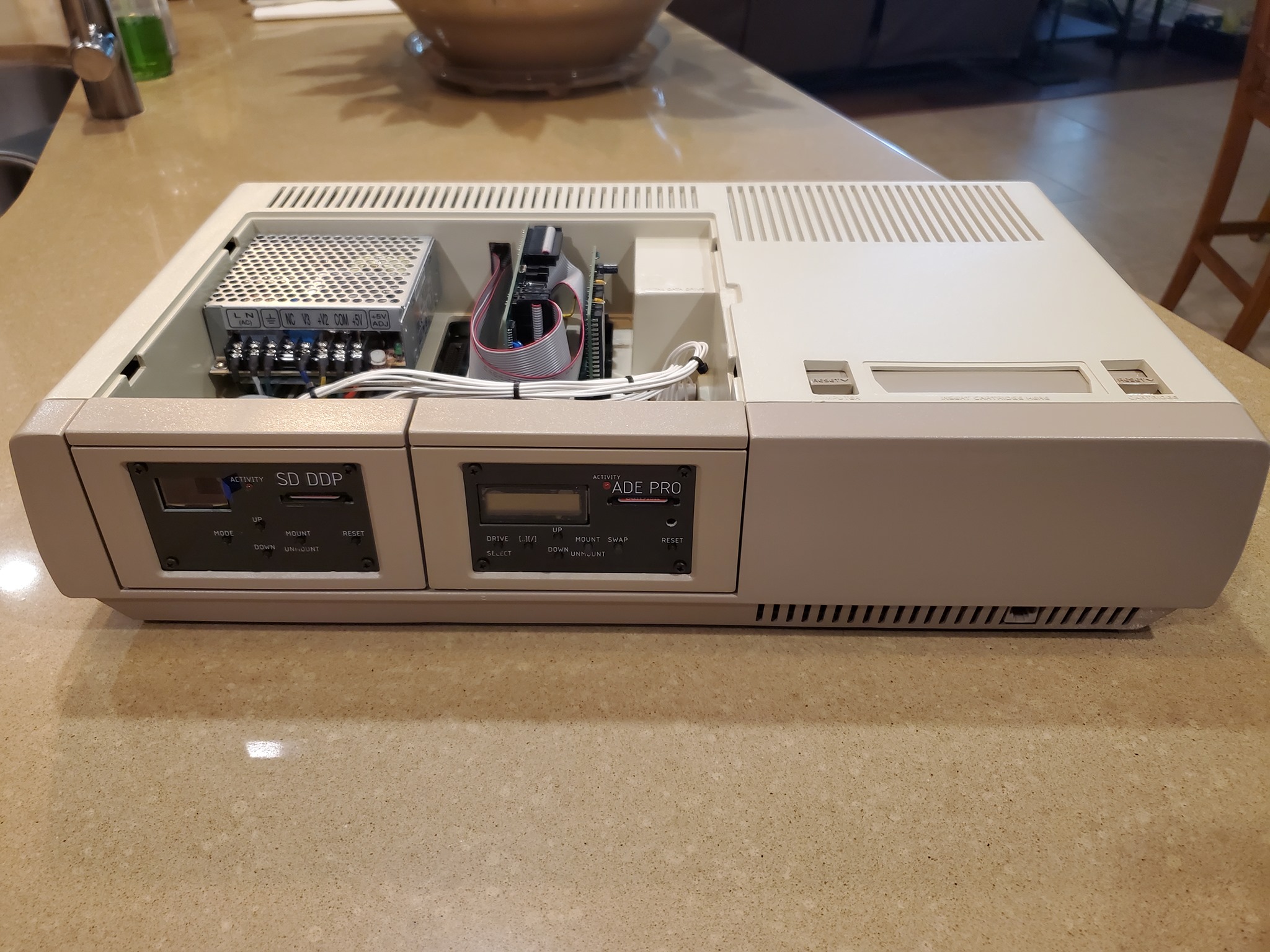

Storage

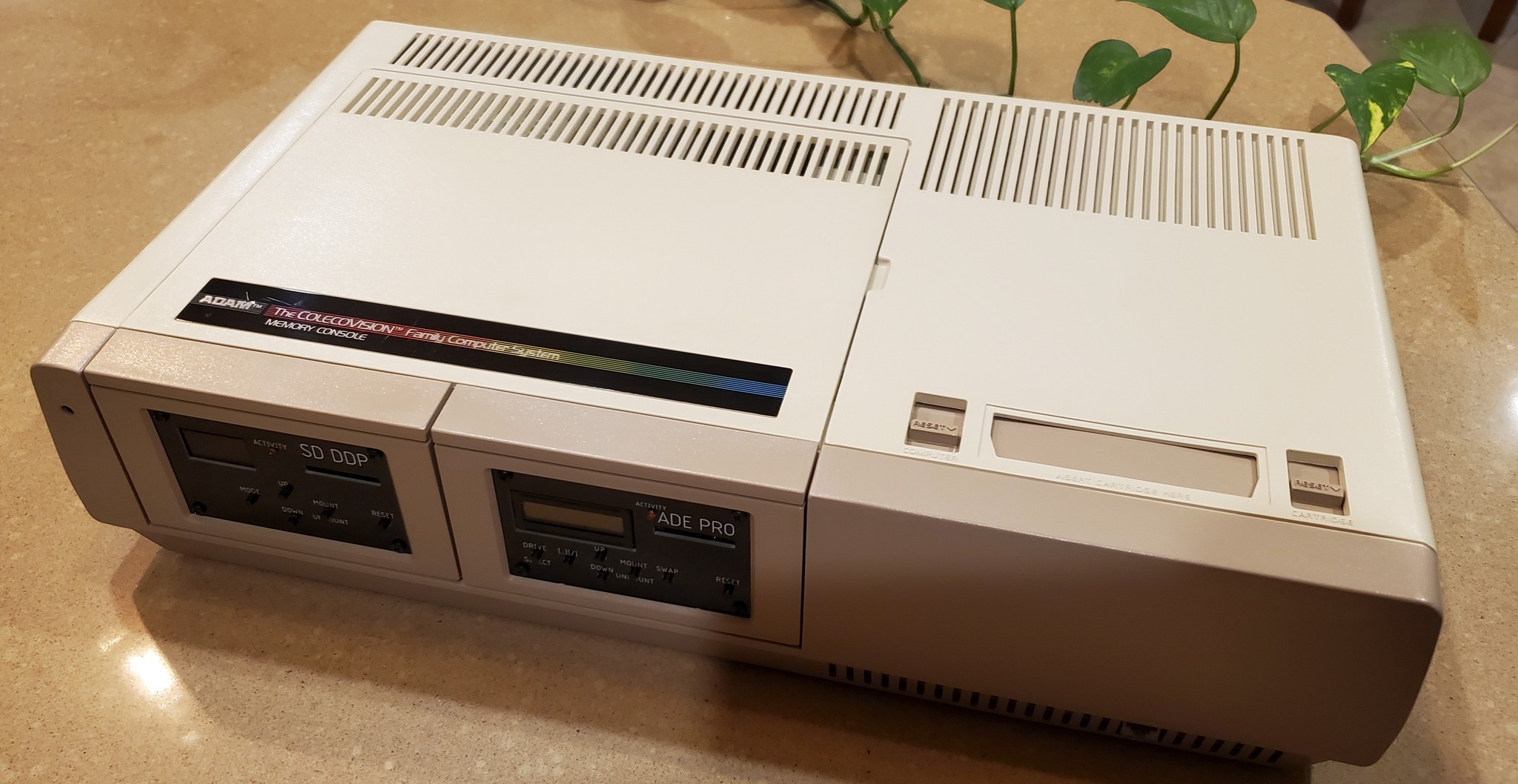

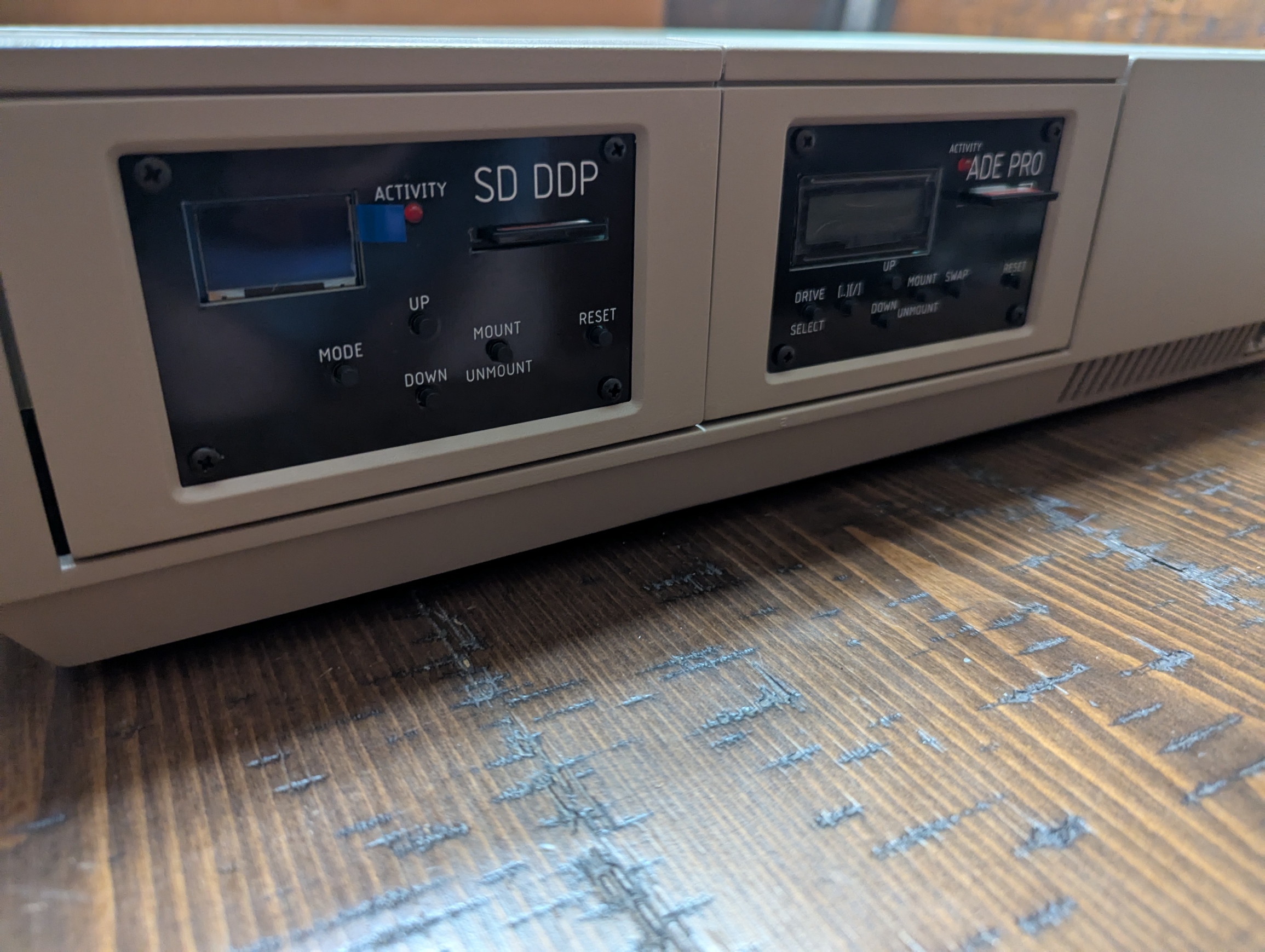

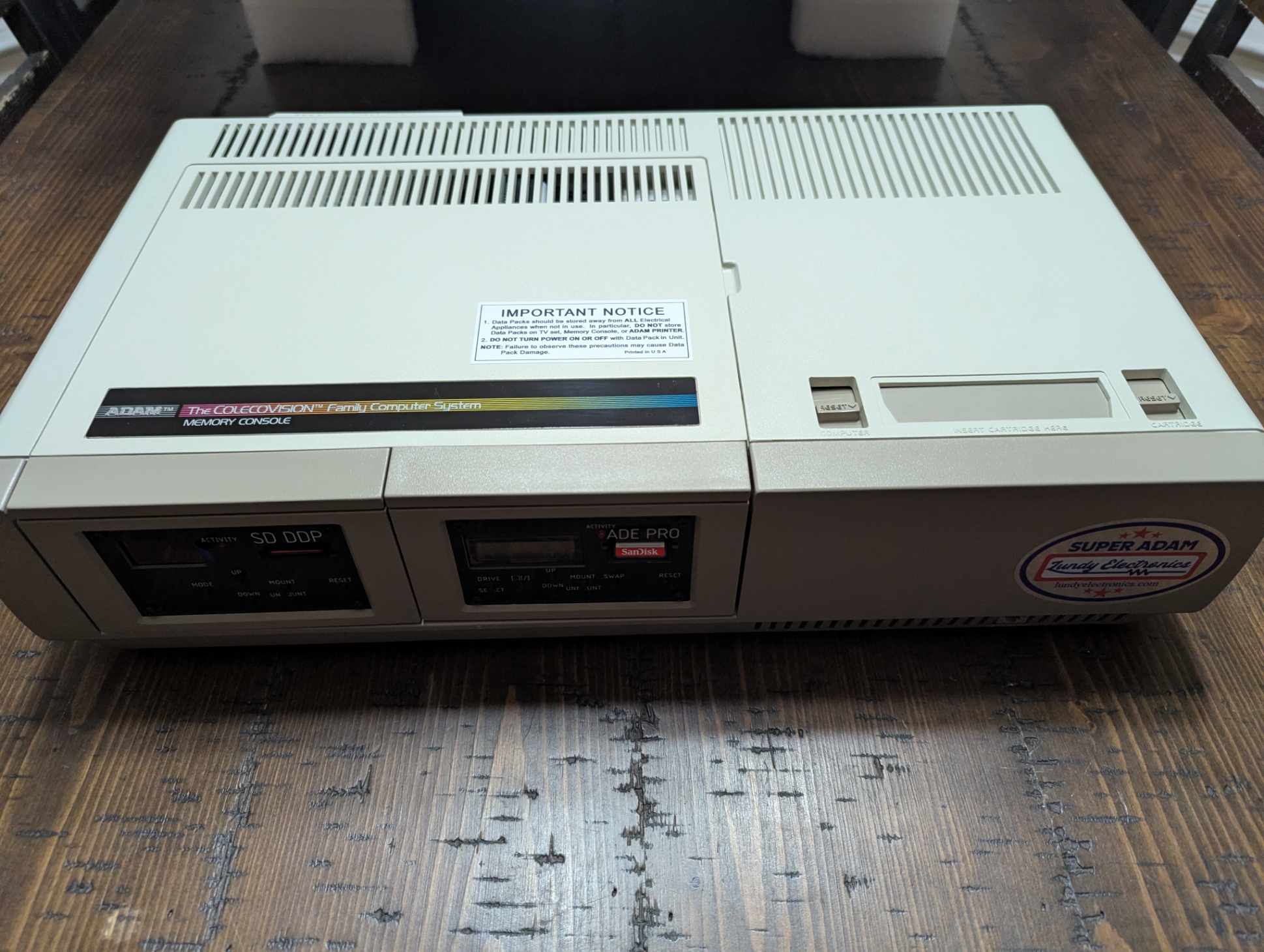

- Internal ADE Pro
- SD DDP

Software

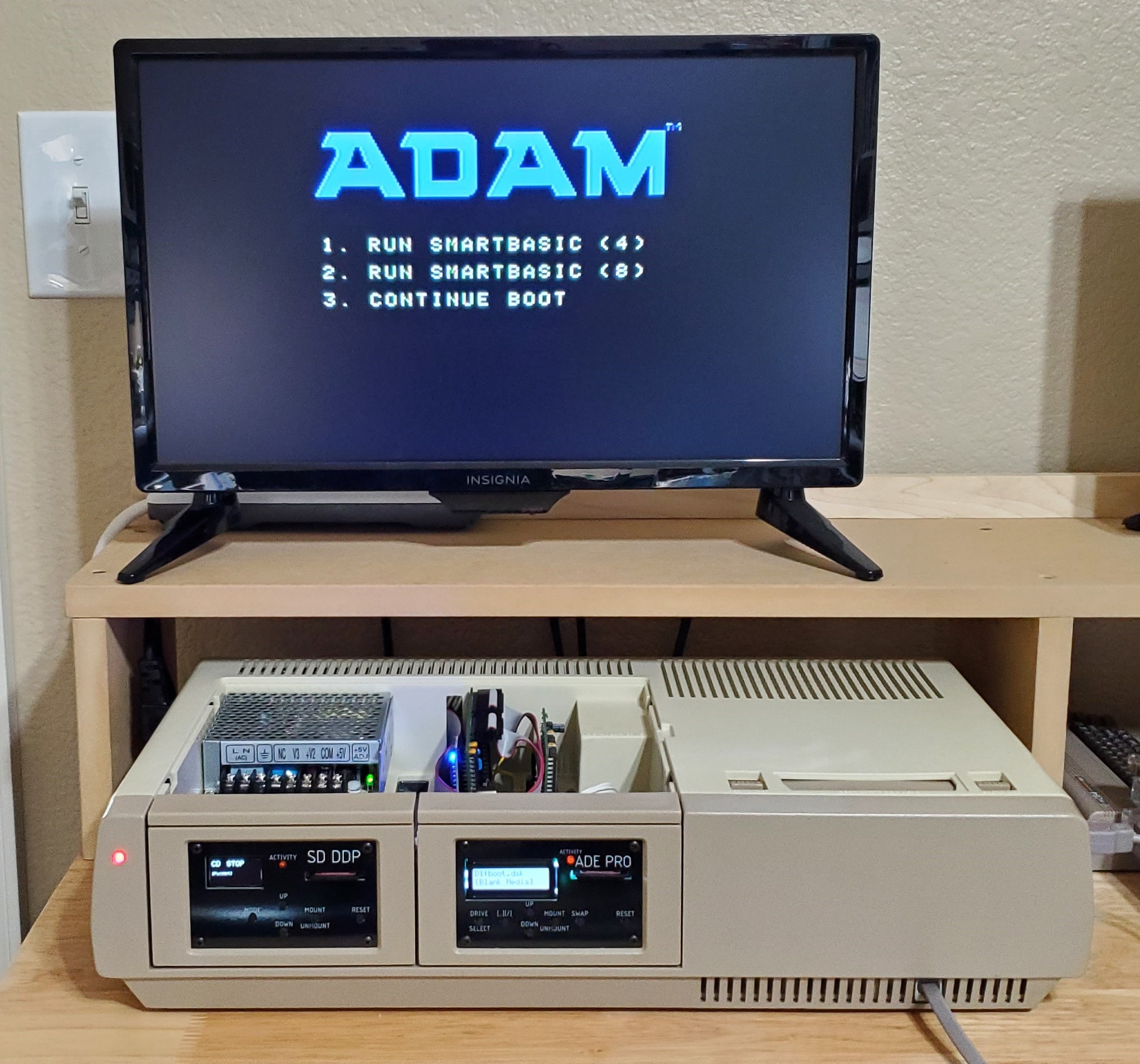

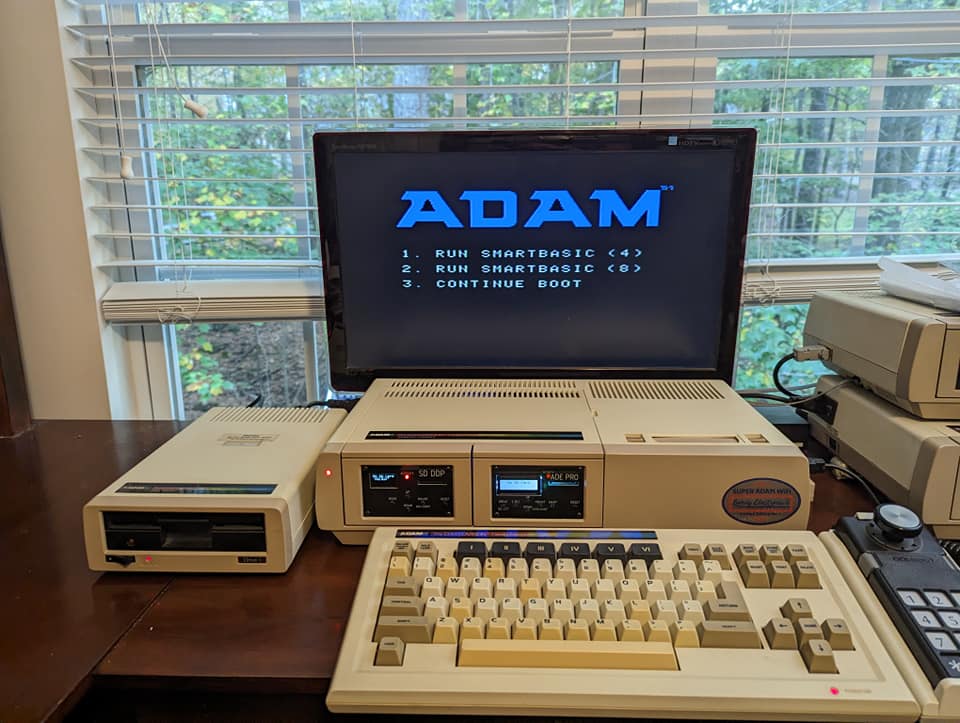

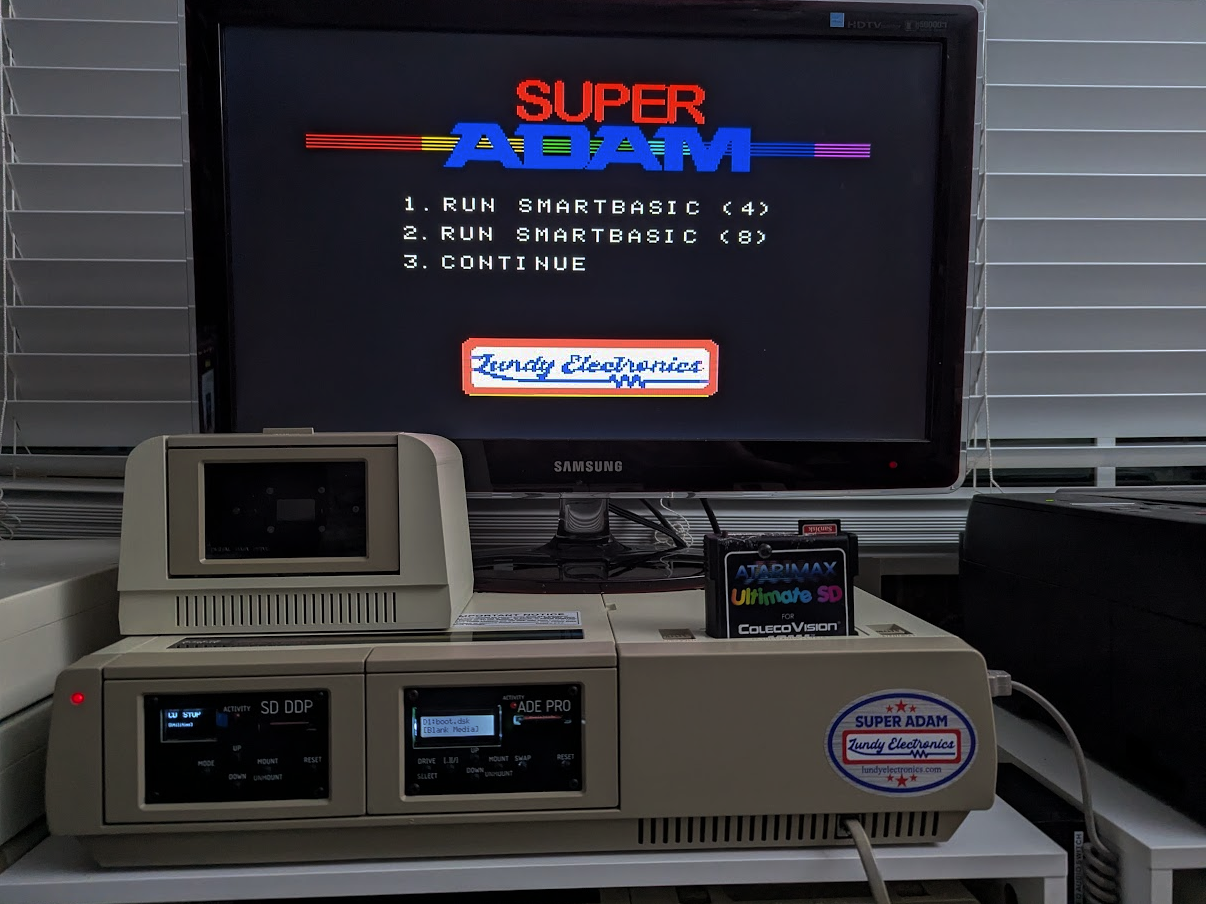

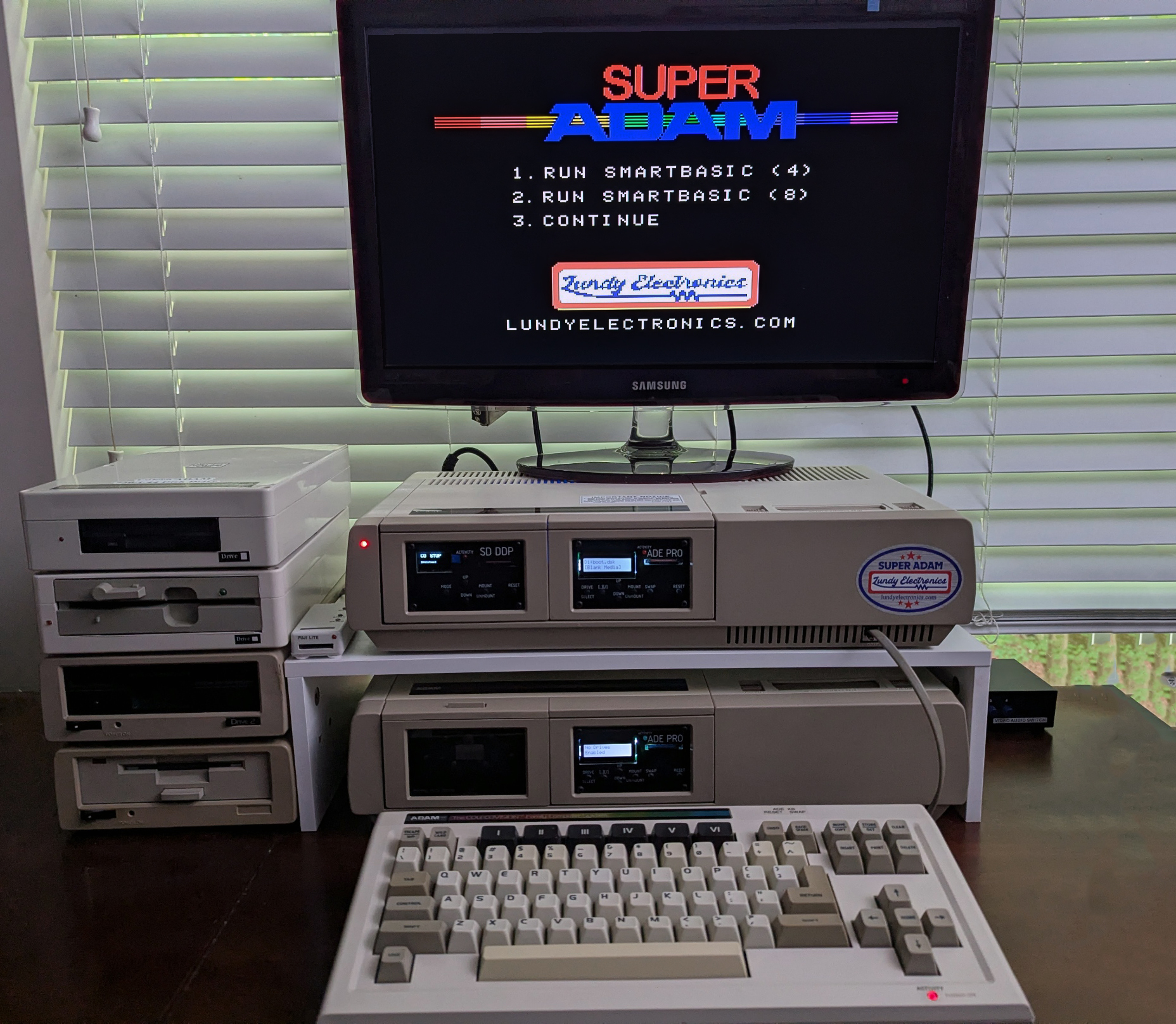

- Boots to a selection menu: built-in SmartBASIC (disk or DDP HELLO), or continue the normal boot
- SmartBASIC boot PROM with integrated AJM printer port #64 patch
- R89 SmartWRITER PROMs with parallel printer support built in

SuperADAM WiFi Gallery
Photographed as originally built in 2022 — 2026 upgrade photos to follow

SuperADAM 2022

Modified by John Lundy (2022)

Lundy Electronics

Power

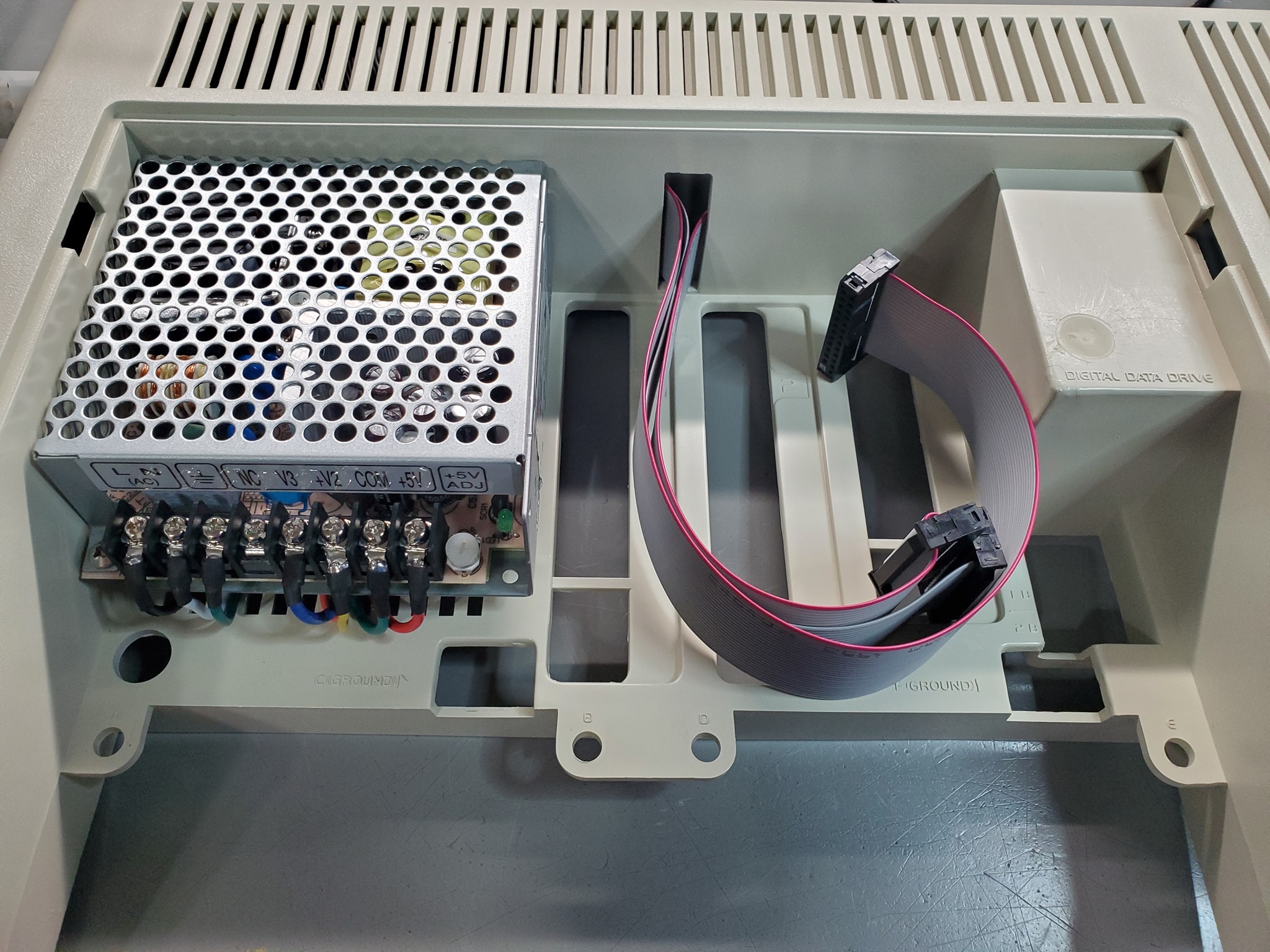

- Internal power supply

Video & Audio

- C88 audio fix
- RCA audio connector

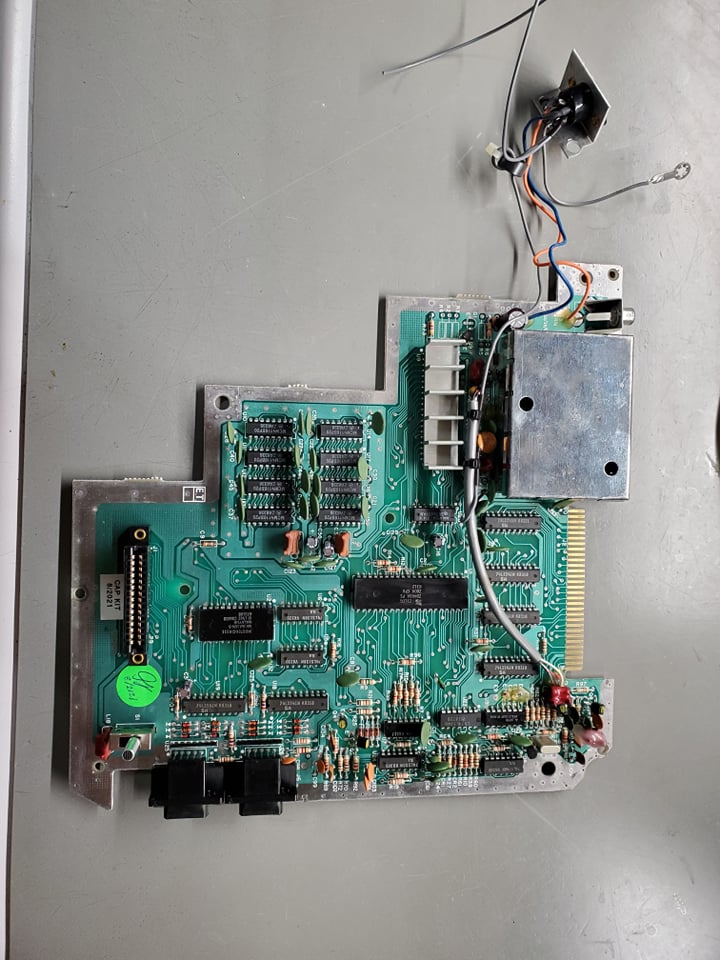

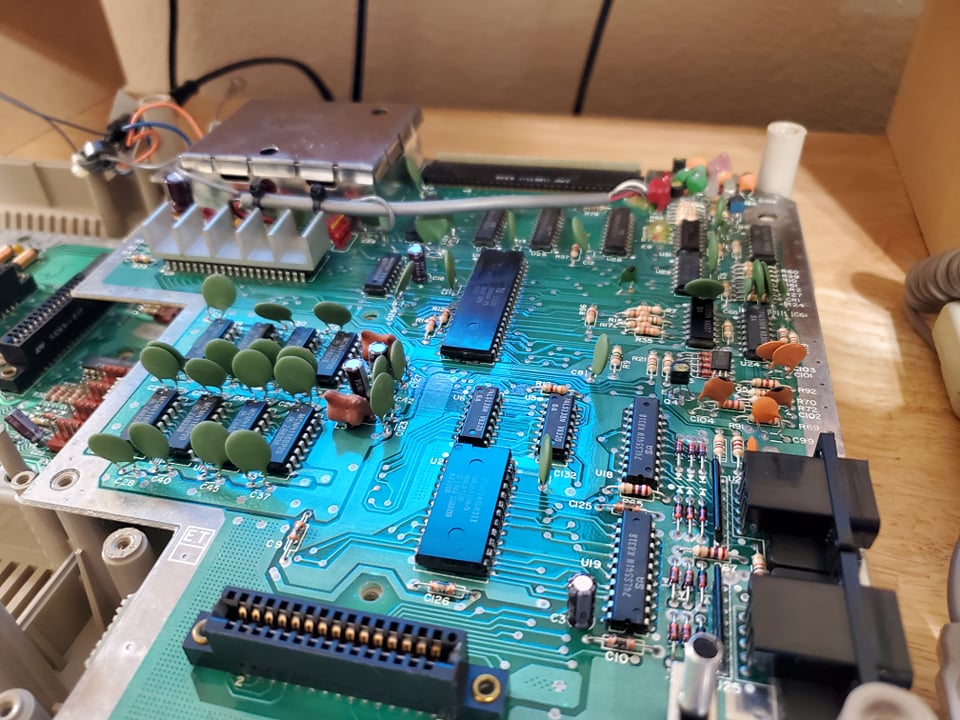

Board Upgrades

- Installation of console capacitor kit (also includes tantalum capacitors not supplied in other kits)
- New cartridge connector installation
- New all metal high quality 7-Pin DIN connector installation
- Ultrasonic cleaning of Gamma to Delta board connector and fingers
- Ultrasonic cleaning of existing 7-Pin DIN connector

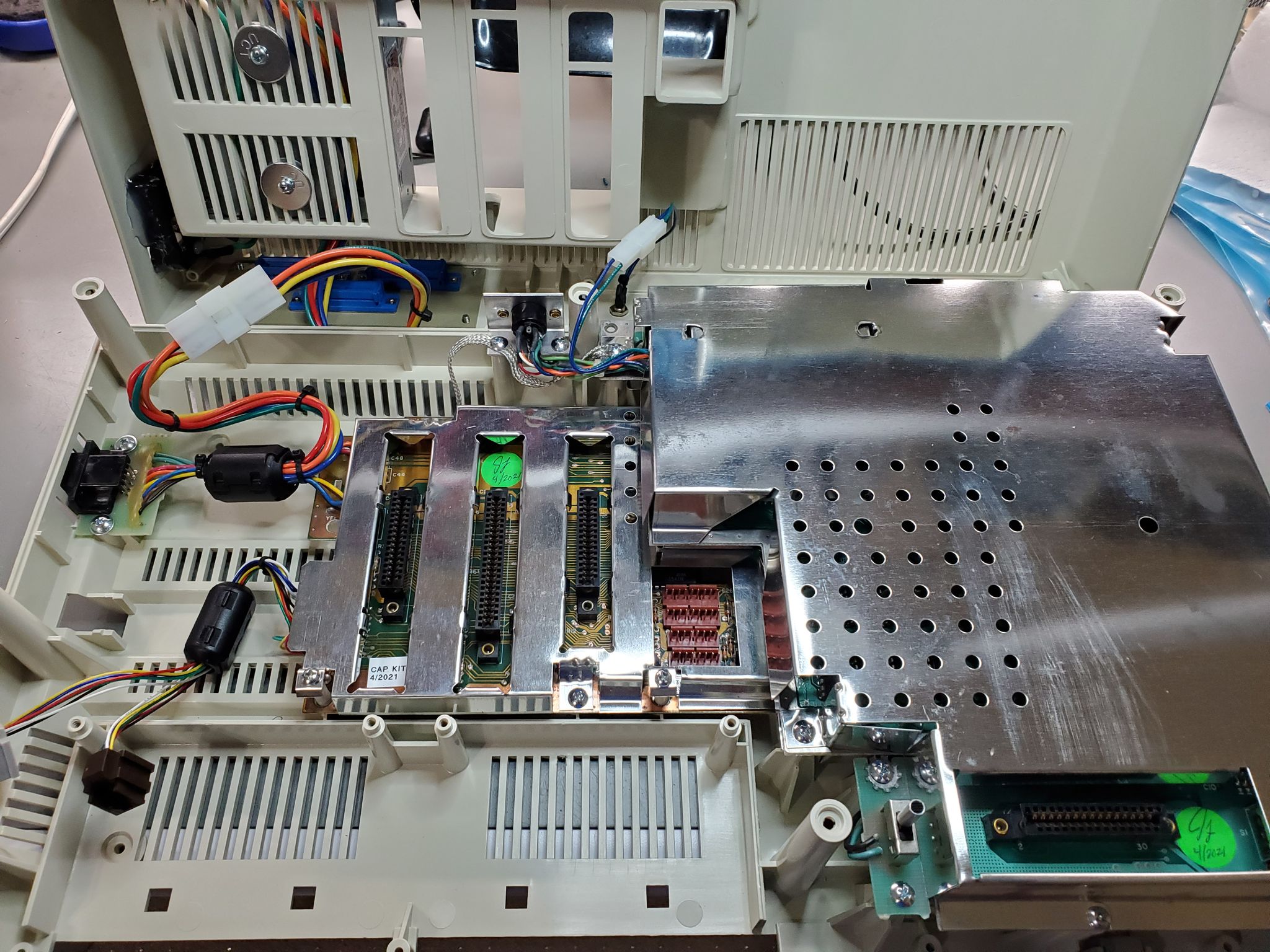

Connectivity & Expansion

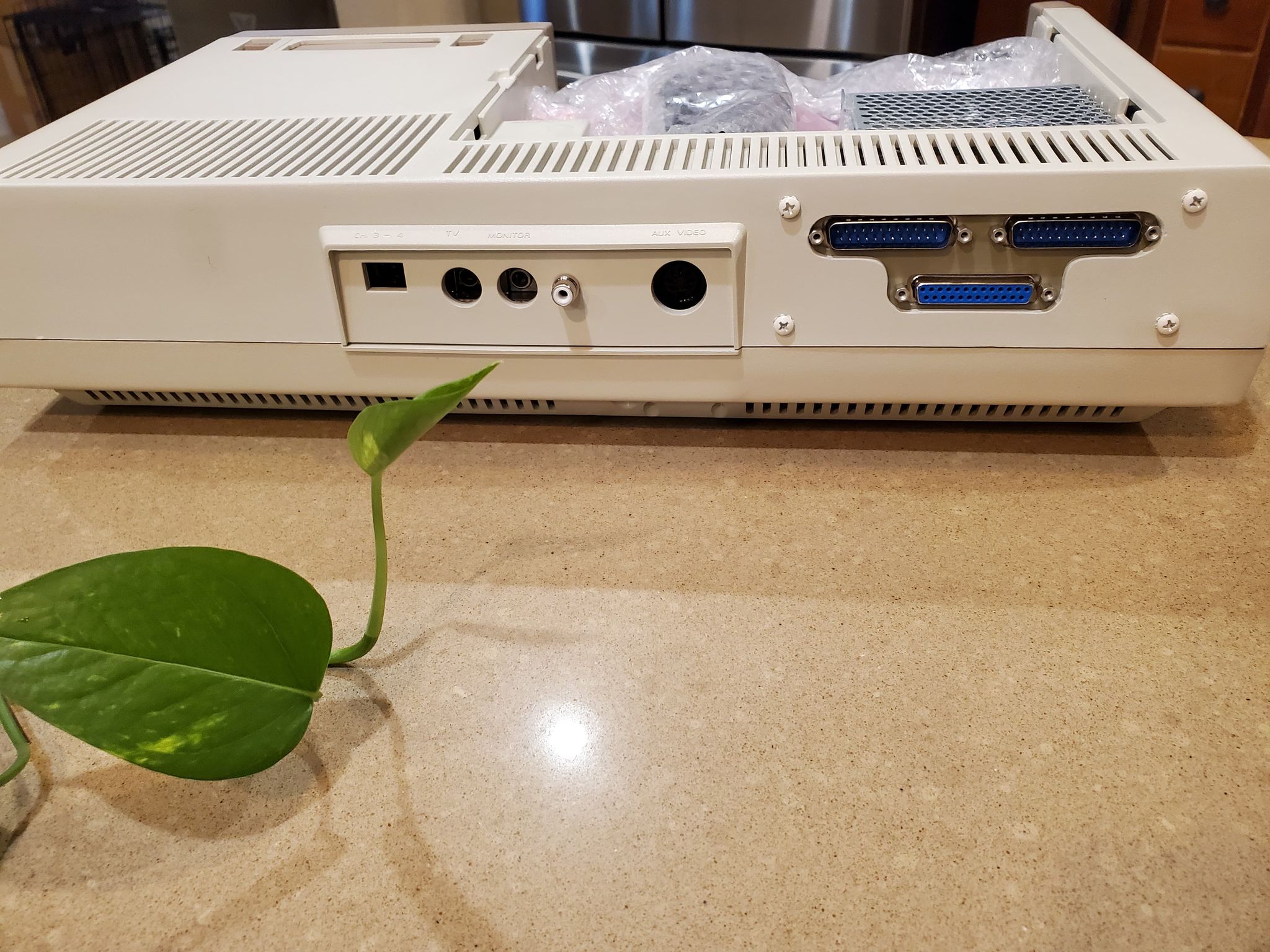

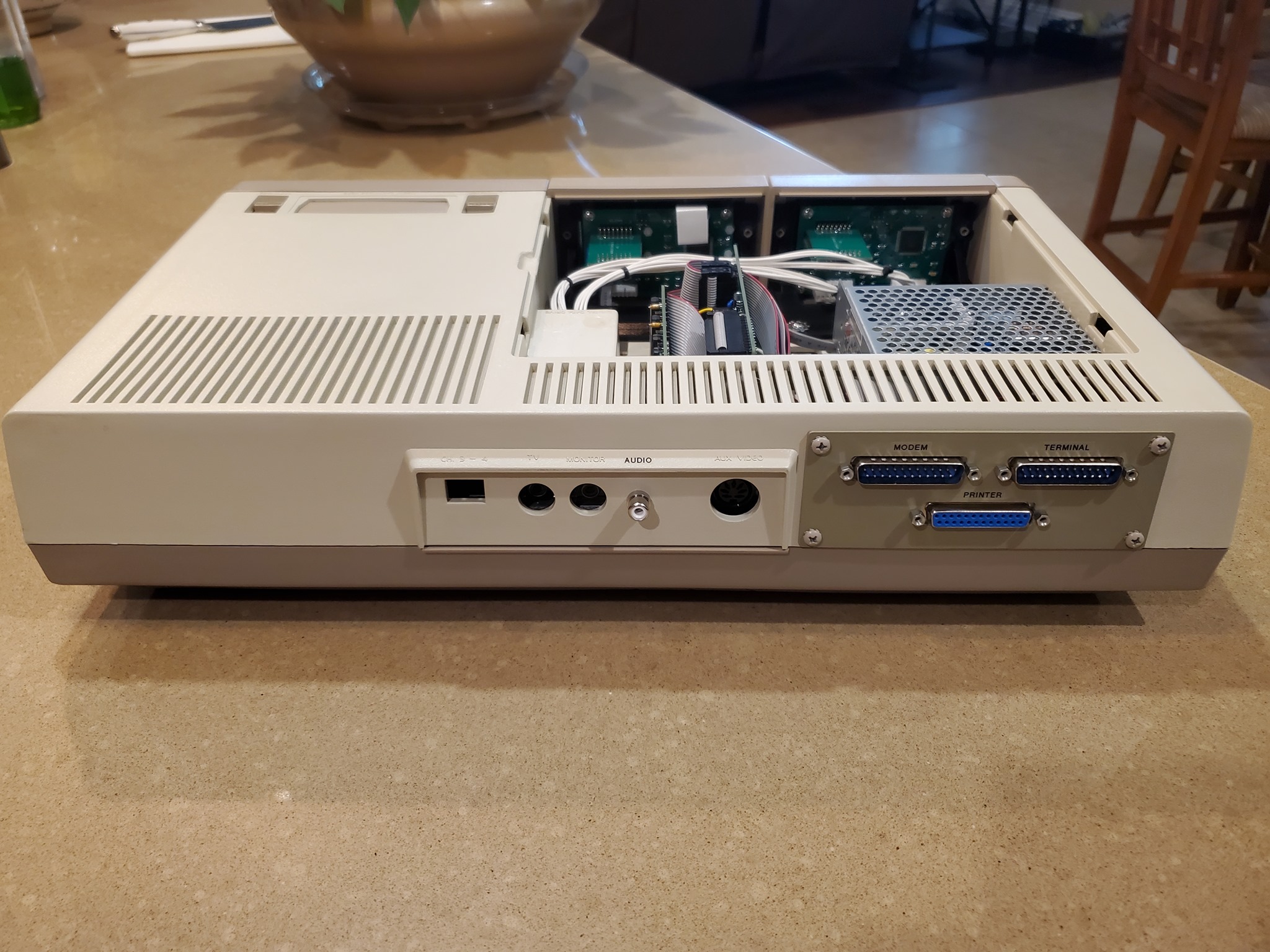

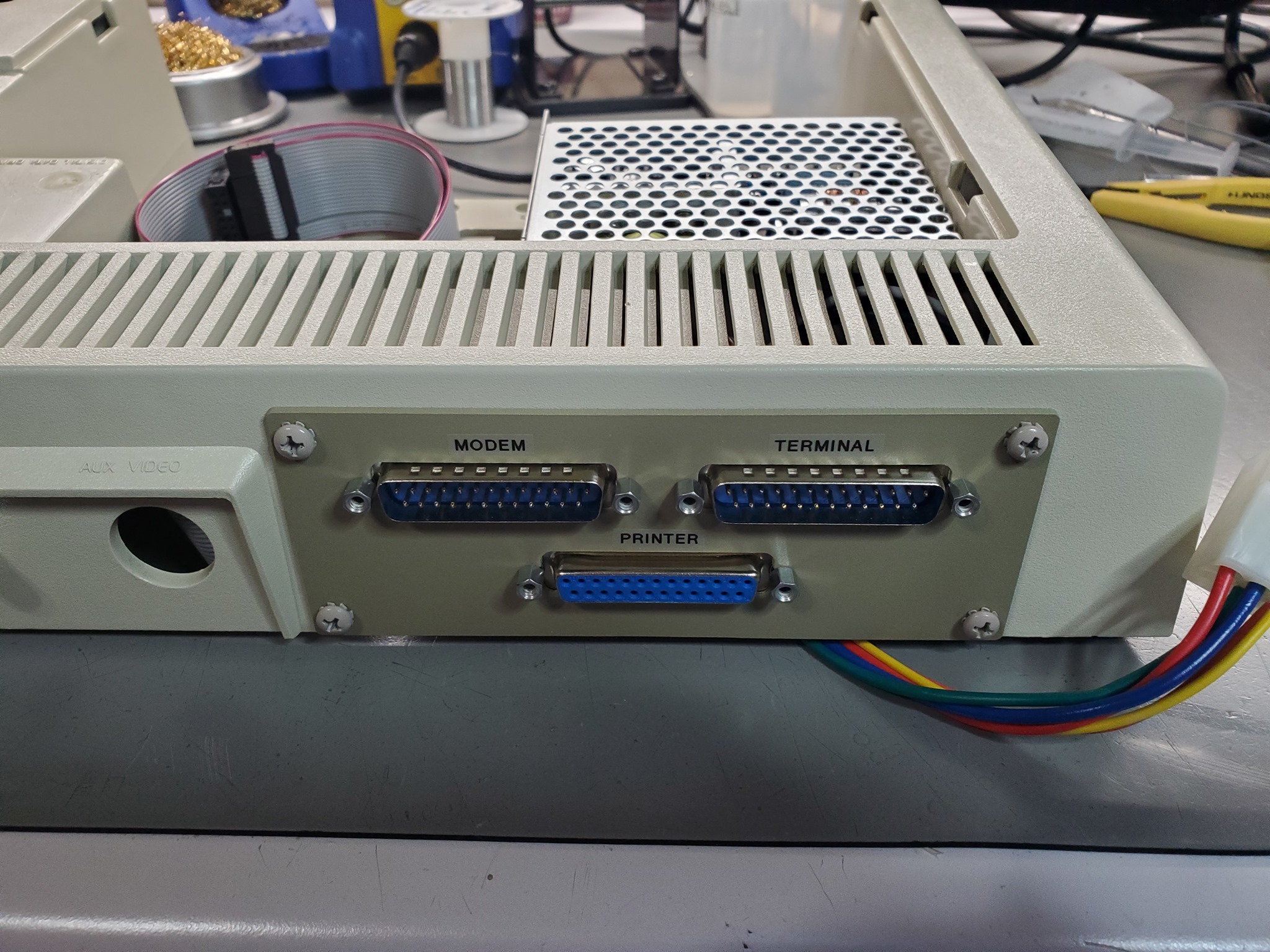

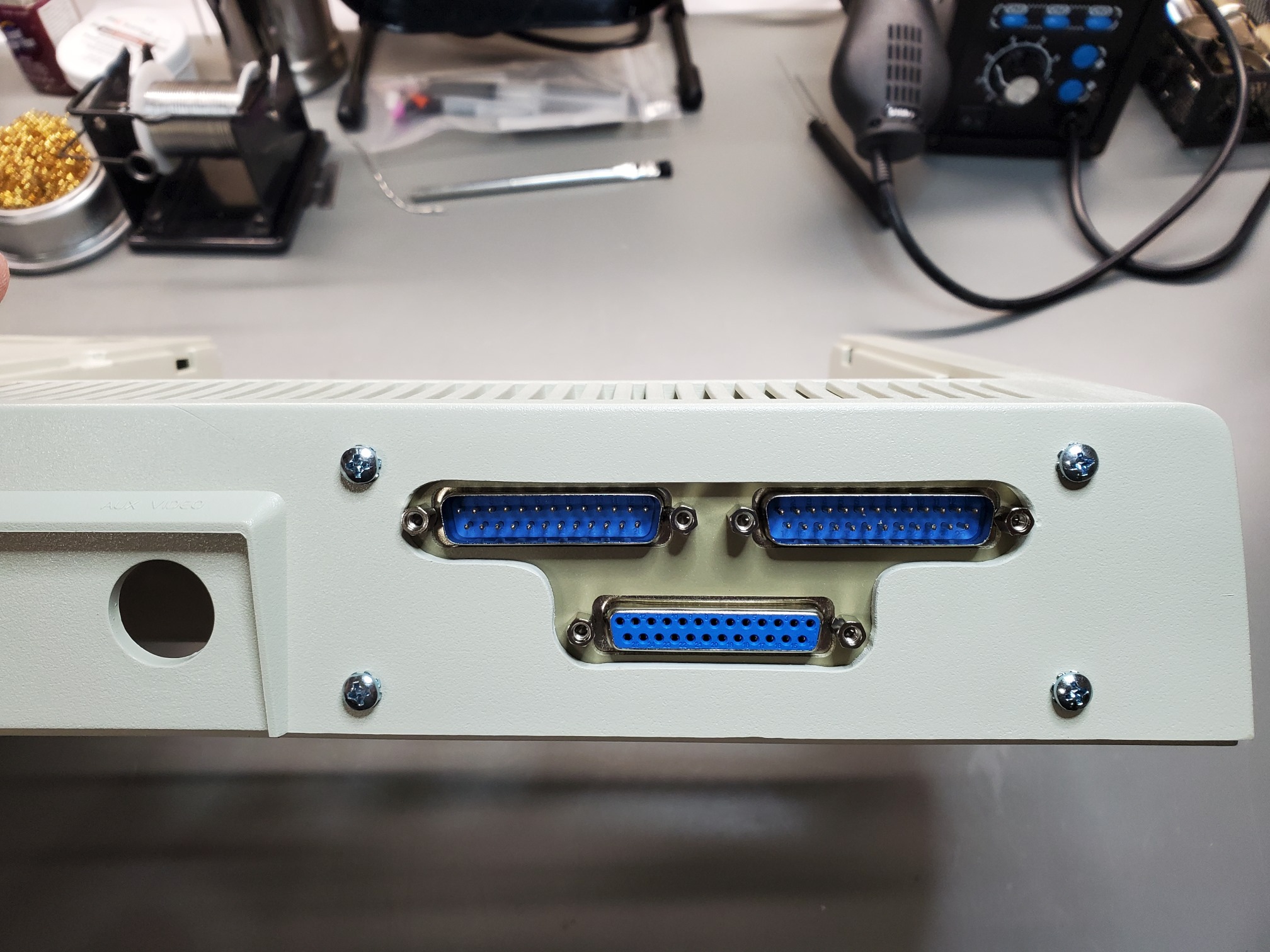

- Internal COM ports (2 serial and 1 parallel). *Requires an MIB238, MIB2, or MIB3 card
- Internal ADAMnet connection

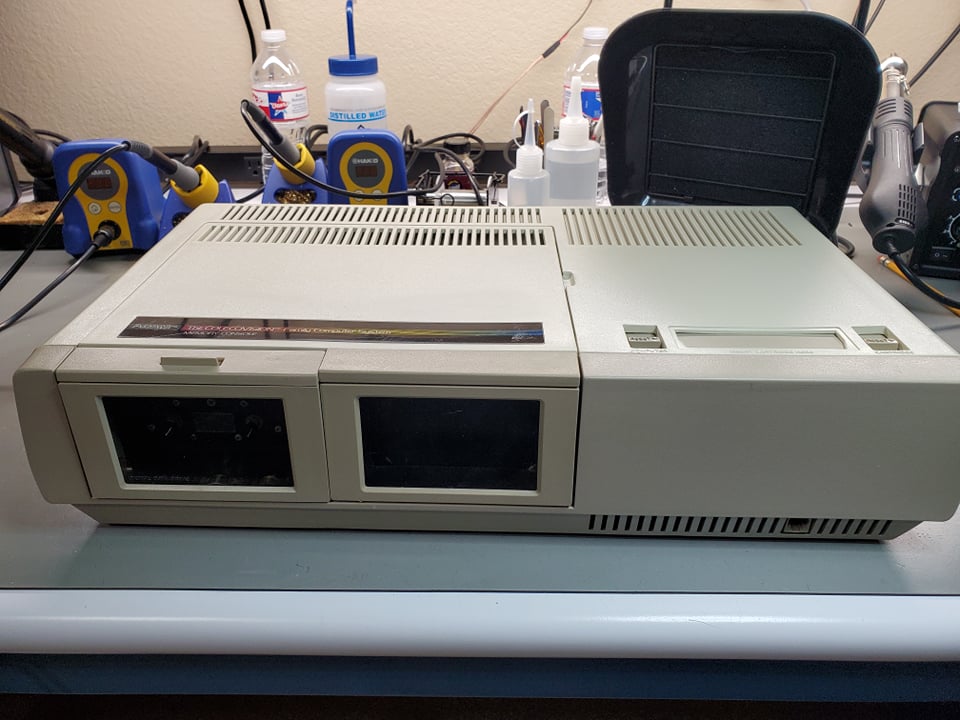

SuperADAM 2022 Gallery

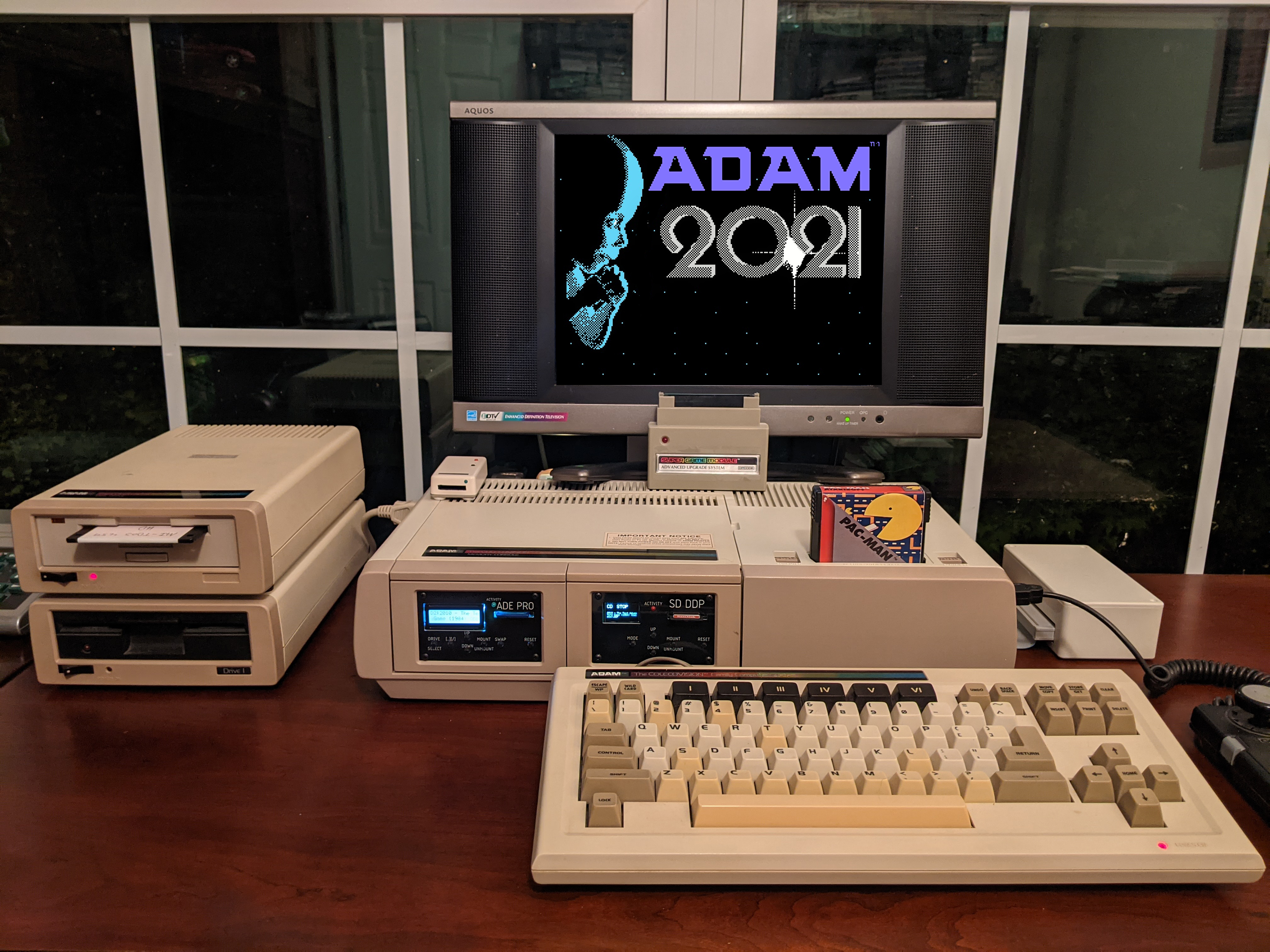

SuperADAM 2021

Modified by John Lundy (2021)

Lundy Electronics

The original SuperADAM. The console that started it all — a fully modded ADAM with internal power supply, audio fix, and clean internal connectivity.

Power

- Internal power supply

Video & Audio

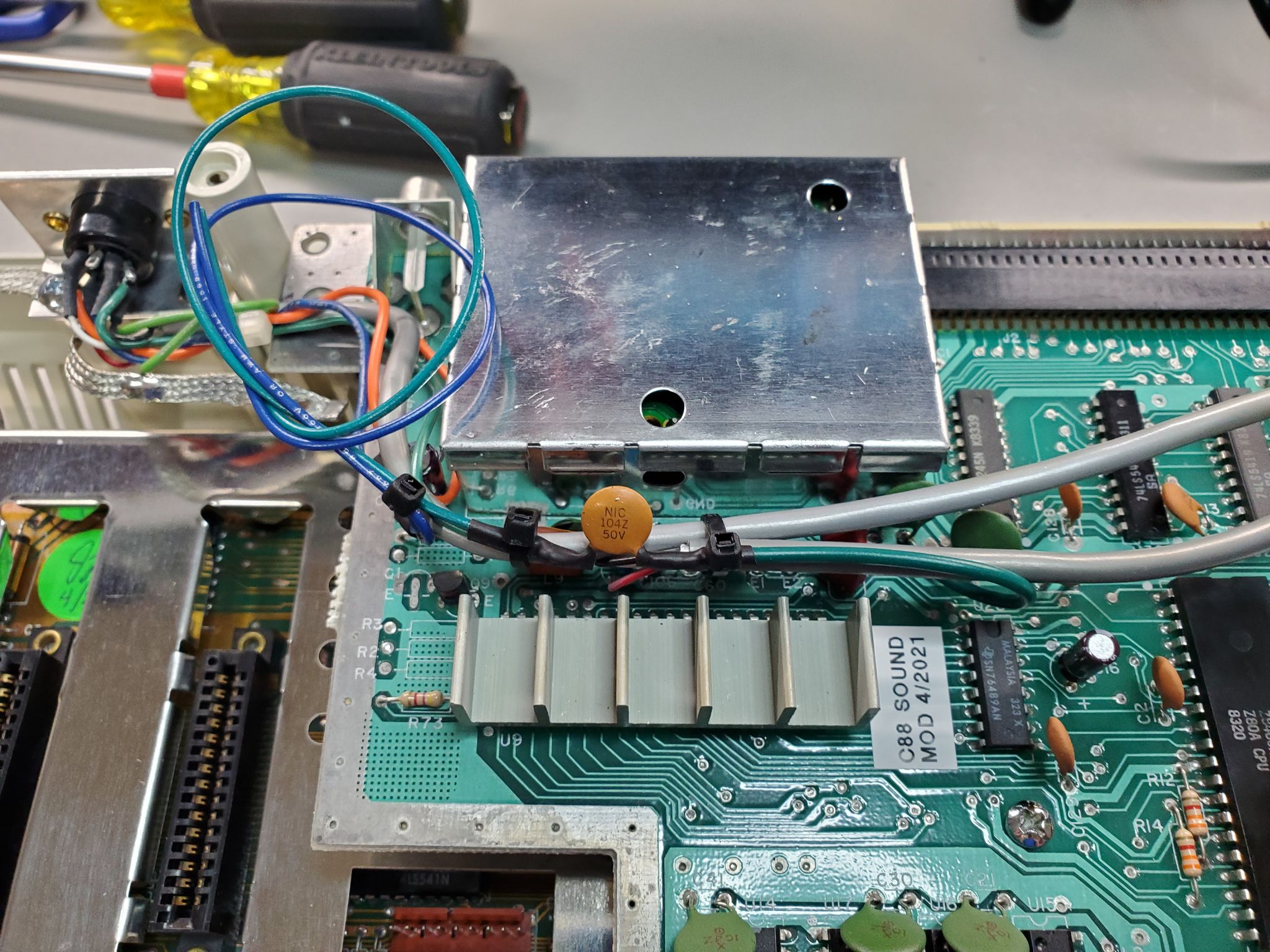

- C88 audio fix
- RCA audio connector

Board Upgrades

- Installation of console capacitor kit (also includes tantalum capacitors not supplied in other kits)
- New cartridge connector installation
- New all metal high quality 7-Pin DIN connector installation
- Ultrasonic cleaning of Gamma to Delta board connector and fingers
- Ultrasonic cleaning of existing 7-Pin DIN connector

Connectivity & Expansion

- Internal COM ports (2 serial and 1 parallel). *Requires an MIB238, MIB2, or MIB3 card
- Internal ADAMnet connection

SuperADAM 2021 Gallery

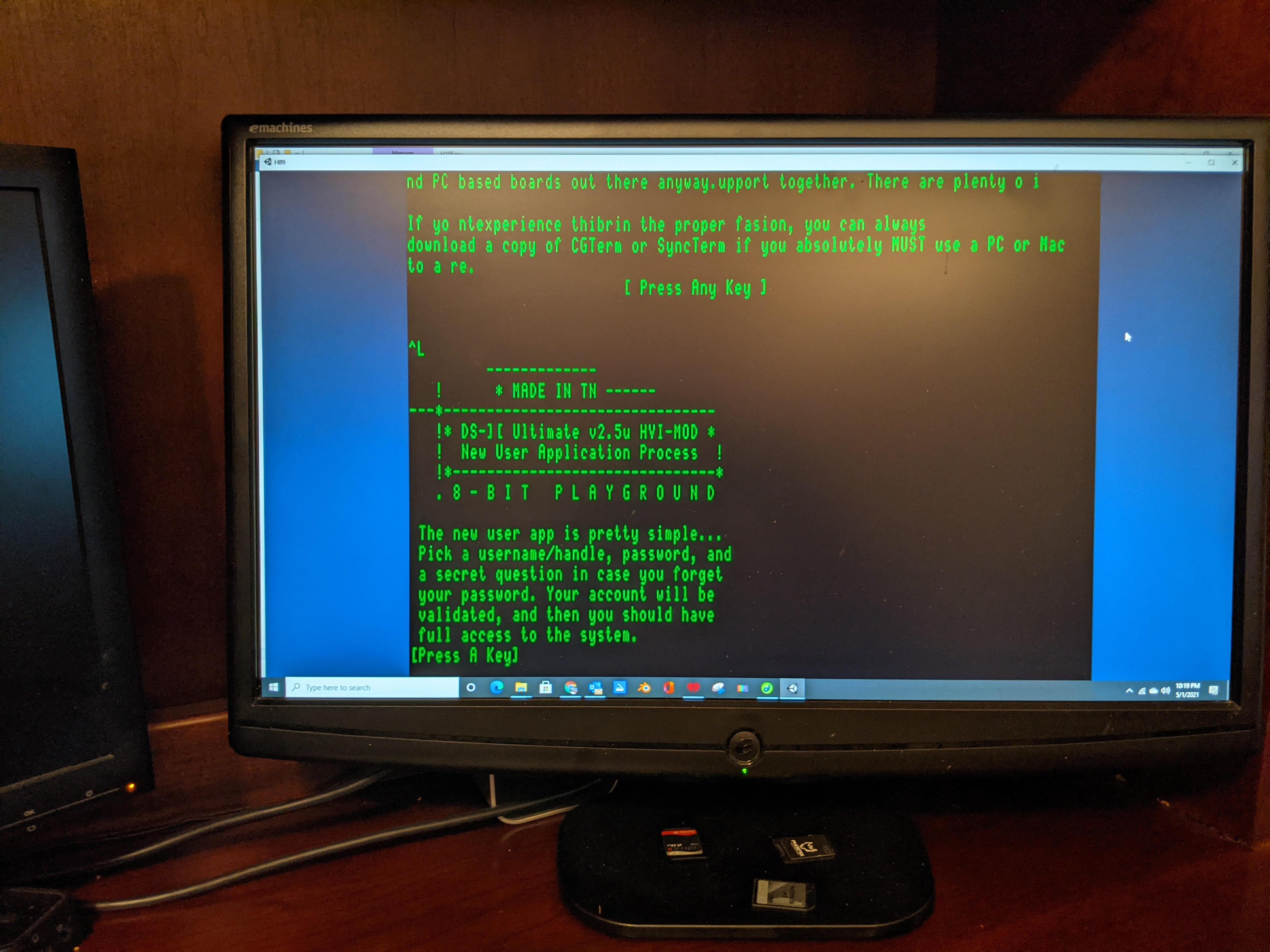

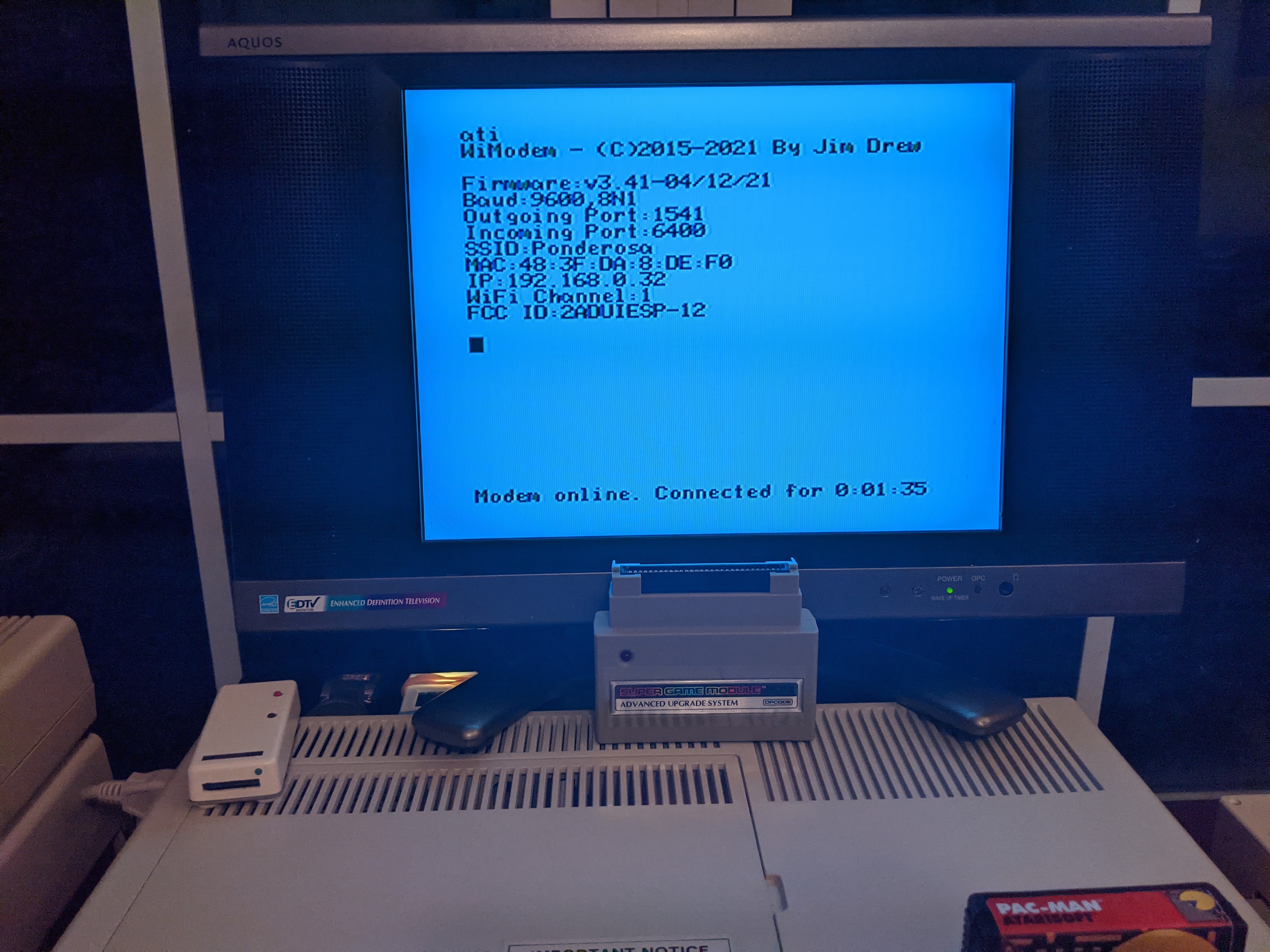

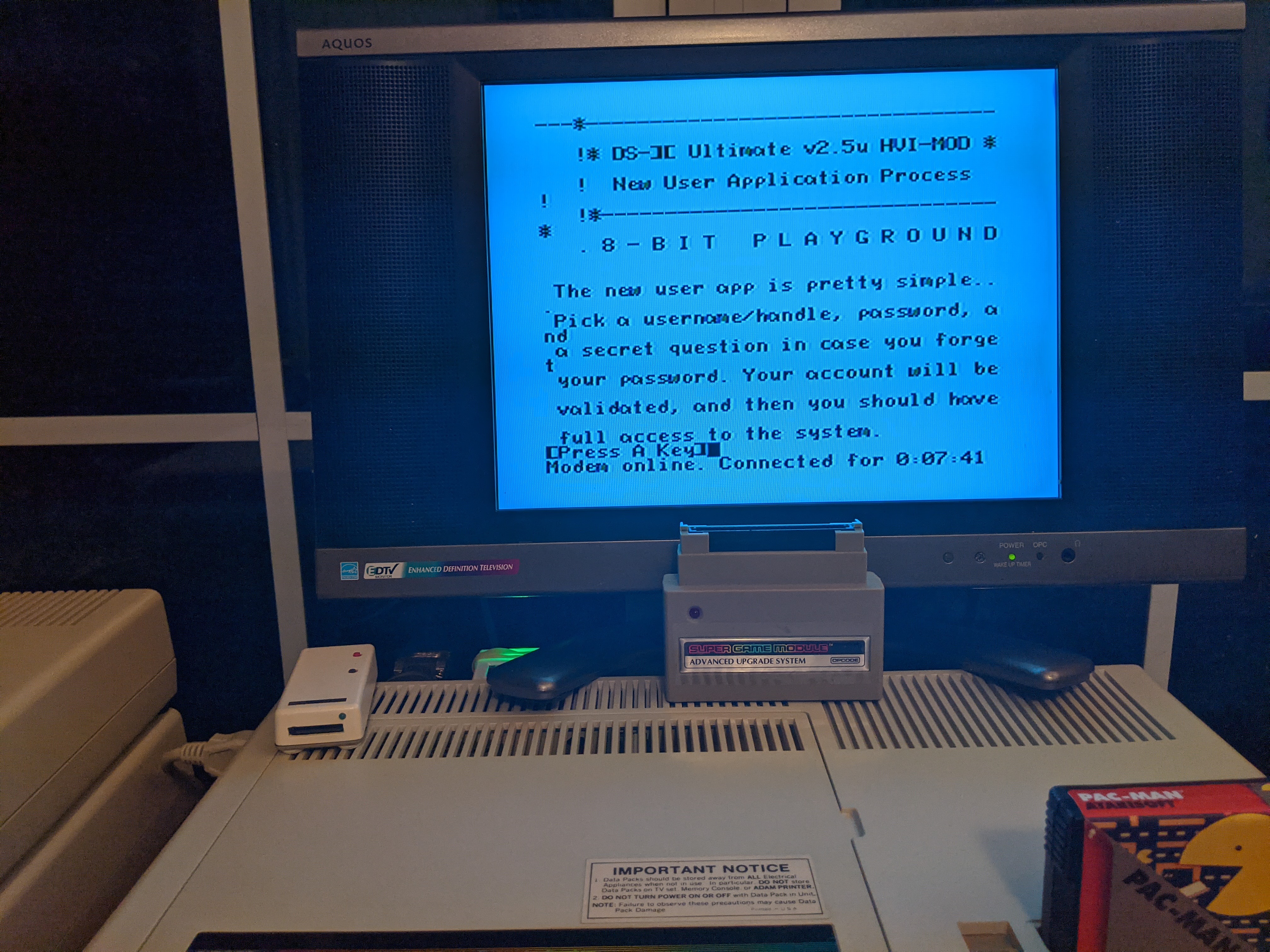

Online at 9600 Baud over WiFi and using 80 Column Terminal on a PC

Compare All Models
Click any model column header to view that unit
The SuperADAM WiFi console is shown twice — as originally built in 2022, and after its 2026 upgrade

Feature	2026 ★	WiFi Upgraded 2026	WiFi As Built 2022	2022	2021
Case & Cosmetics
Console Color	Dark Beige (Rare)	Standard	Standard	Dark Beige (Rare)	Standard
Custom COM Bracket (Rear)	✓ Dark Beige Powder Coated	✓ Machined	✓ Machined	—	—
New COM Panel Surround	✓ Integrated w/ Bracket	✓ Fitted2026	—	—	—
Nothing Exits Top Cover	✓	✓	✓	✓	✓

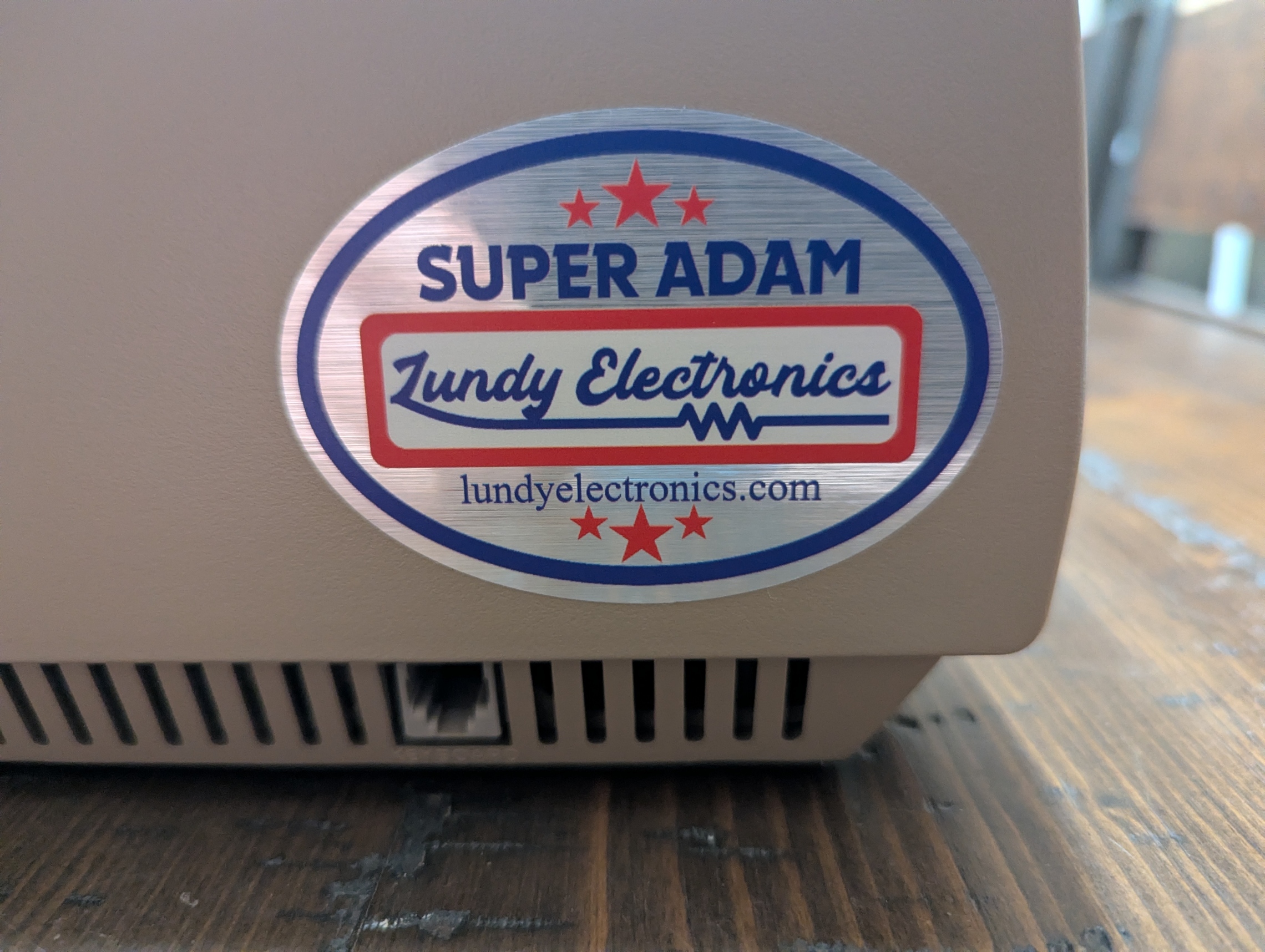

SuperADAM Brushed Aluminum Decal	✓ Professionally Printed	—	—	—	—
New Label Set	✓	—	—	—	—
Matching Dummy Data Drive Bezels	✓	—	—	—	—
New Sponge Rubber Feet	✓	✓	✓	✓	✓
Thoroughly Cleaned PCB	✓	✓	✓	✓	✓
Polished I/O Fingers	✓	✓	✓	✓	✓
Hardware Polished to Chrome Finish	✓	✓	✓	✓	✓
Power
Internal Power Supply	✓	✓	✓	✓	✓
Internal Power Supply Covers	✓	✓ New2026	—	—	—
IEC Fused Power Input Module	✓	✓	✓	—	—
Left Side Power Switch	✓ Front-Mounted	✓	✓	✓	✓
Red LED Power Indicator	✓ Front Left	✓	✓	✓	✓
Video & Audio
PICO9918 VDP — HDMI Output	—	✓ On Delta Board2026	—	—	—
VGA Output Option	No-Cut Beige Bracket *	—	—	—	—
Composite + Dedicated Audio RCA	Factory-Look Recessed *	✓	✓	✓	✓
Socketed VDP (Swappable)	✓	✓ PICO9918 Fitted	—	—	—
Audio Balance Fix (SGM/Speech)	✓	✓ C88 Fix	✓ C88 Fix	✓ C88 Fix	✓ C88 Fix
Board Upgrades
Delta Board DRAM → SRAM	✓	✓ Converted2026	— (4164 DRAM + sockets)	—	—
Gamma Board DRAM → SRAM	✓ NEW — Unreleased Product	—	—	—	—
Complete Capacitor Kit (incl. Tantalum)	✓	✓	✓	✓	✓
New Cartridge Connector	✓	✓	✓	✓	✓
New All-Metal 7-Pin DIN Connector	—	—	—	✓	✓
Ultrasonically Cleaned Connectors	✓ Joysticks	✓ All Connectors	✓ All Connectors	✓ DIN + Board Edge	✓ DIN + Board Edge
Connectivity & Expansion
MIB238-WiFi Board	✓	✓	✓	— Card Required †	— Card Required †
RAM Expander	✓ 1MB	✓ 1MB	✓ 1MB	—	—
Internal ADAMnet w/ Printer Reset Silencer	✓ +5V Side Connector	✓	✓	✓	✓
Internal COM Ports	✓ Via MIB238	✓	✓	✓	✓
Storage
Internal Drive Emulator (ADE)	✓	✓ ADE Pro	✓ ADE Pro	✓ ADE Pro	✓ ADE Pro
SD DDP (Internal SD Data Drive)	✓	✓	✓	✓	✓
External Data Drive + Housing + Cable	✓	—	—	—	—
Software & Boot
SmartBASIC in Boot ROM Socket	✓ XROM — Instant Boot	✓ Boot PROM w/ AJM #64 Patch	✓ Boot PROM w/ AJM #64 Patch	—	—
Boot Selection Menu	—	✓ SmartBASIC or Normal Boot	✓ SmartBASIC or Normal Boot	—	—
R89 SmartWRITER PROMs	—	✓ w/ Parallel Printer	✓ w/ Parallel Printer	—	—
* Video output determined by community poll. VGA option includes no-cut beige bracket over RF/TV/monitor area; composite option adds recessed audio RCA. Socketed VDP allows easy reversion to factory video. † The 2021 and 2022 consoles are wired for internal COM ports but the card itself is not included — they require an MIB238, MIB2, or MIB3. ✓ Items tagged 2026 were added to the SuperADAM WiFi console when it returned to Lundy Electronics in 2026. Everything in the "As Built 2022" column carries over to the upgraded unit — the two columns show the same console before and after.
